Moxa 65M-BMCM02-CT-T | ioPAC 6500 2-Slot Comm Backplane, Conformal Coated, -40 to 75°C

Authorised Moxa Partner

SKU:65M-BMCM02-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

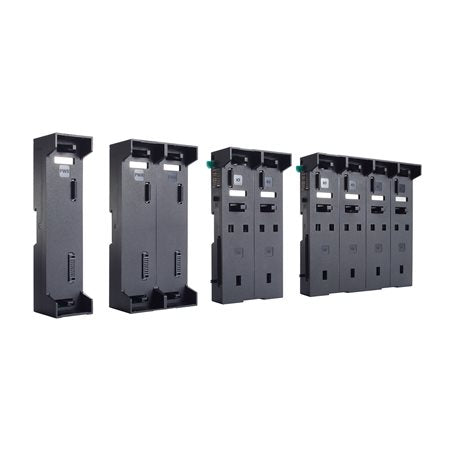

The Moxa 65M-BMCM02-CT-T is a 2-slot backplane module for communication modules in the modular ioPAC 6500 Linux-based RTU and controller platform. Its 2 slots for communication modules make it the foundation for adding serial, Ethernet or other communication capacity to an ioPAC 6500 node. Conformal coating and an operating range of -40 to 75°C suit harsh industrial, utility and remote site deployments.

The ioPAC 6500 platform uses a fully modular, tool-free and hot-swappable design, with a 2 x 2 pin grid that prevents modules being installed in the wrong position. The platform is developed according to IEC 62443-4-2 SL2 standards and supports multiple IT and OT protocols for SCADA, plant information systems and cloud communication.

Features

- Tool-free hardware installation
- Hot-swappable modular design
- Fully modular design for flexible deployment
- 2 x 2 pin grid prevents erroneous installation (assembly order PWR, COM, CPU, EXP, IO)
- Conformal coating for harsh environments
- Developed according to IEC 62443-4-2 SL2 standards
- Supports multiple IT and OT protocols for SCADA, plant information systems and cloud communication

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 slots for communication modules
- Conformal coating
- Dimensions: 86 x 177 x 45.5 mm (3.39 x 6.97 x 1.79 in)
- Weight: 330 g (0.73 lb)
- Operating temperature: -40 to 75°C (proper airflow required above 65°C)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 2000 m
- EMC: EN 55032/35, EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD contact 4 kV, air 8 kV; IEC 61000-4-3 RS 10 V/m

FAQs

Q: How many communication modules does the 65M-BMCM02-CT-T support?
A: It provides 2 slots for communication modules on an ioPAC 6500 node.

Q: What is the operating temperature range?
A: -40 to 75°C. Proper airflow is required above 65°C.

Q: Is this backplane conformally coated?
A: Yes. The conformal coating protects the board in humid, dusty or otherwise harsh industrial environments.

Q: Can modules be installed or replaced without tools?
A: Yes. The ioPAC 6500 platform is tool-free and hot-swappable.

Q: How are modules prevented from being installed in the wrong position?
A: A 2 x 2 pin grid design prevents erroneous installation, following the assembly order PWR, COM, CPU, EXP, IO.

Q: What security standard is the platform developed to?
A: The ioPAC 6500 platform is developed according to IEC 62443-4-2 SL2 standards.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
