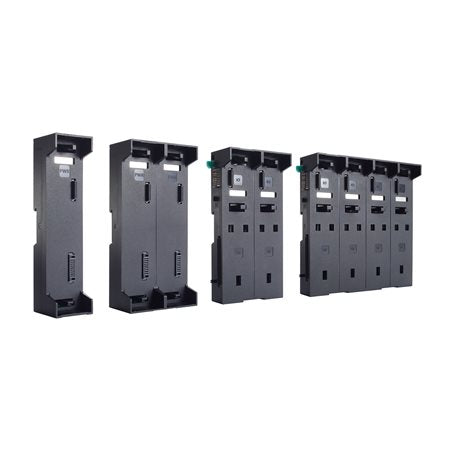

Moxa 65M-BMCM01-CT-T | ioPAC 6500 Backplane Module, 1 Slot, -40 to 75°C, Conformal Coating

Authorised Moxa Partner

SKU:65M-BMCM01-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ioPAC 6500 1-slot backplane module hosts a single communication module in a Moxa ioPAC 6500 modular programmable controller. This conformal-coated variant is rated for -40 to 75°C operation, making it suited to harsh industrial environments such as outdoor cabinets, rail, energy and process automation sites.

The plastic-housed module weighs just 169 g and mounts on a DIN rail, with rack mounting available using an optional kit. It forms part of a fully modular ioPAC 6500 platform that supports tool-free, hot-swappable hardware installation and a range of IT and OT protocols for connecting SCADA systems, plant information systems and cloud applications.

Features

- Hosts one communication module in an ioPAC 6500 modular controller
- Conformal coating for harsh, humid or dusty industrial environments
- Wide -40 to 75°C operating temperature range
- Tool-free, hot-swappable hardware installation
- Fully modular design for flexible deployment
- Supports multiple IT/OT protocols for SCADA, plant information systems and cloud applications
- Turbo Ring, Turbo Chain and RSTP/STP for network redundancy

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 slot for communication module
- Operating temperature: -40 to 75°C
- Conformal coating
- Plastic housing
- Weight: 169 g (0.37 lb)
- Mounting: DIN-rail; rack mounting with optional kit
- EMC: EN 55032/35, EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- Safety: UL 61010-1, UL 61010-2-201
- Shock: IEC 60068-2-27, half sine wave, 15 g, 11 ms

FAQs

Q: How many modules can this backplane hold?
A: The 65M-BMCM01-CT-T provides 1 slot, which accepts a single communication module.

Q: What is the operating temperature range?
A: It is rated for -40 to 75°C operation.

Q: Does this module have a conformal coating?
A: Yes. The -CT-T variant is conformal coated to help protect against moisture, dust and other contaminants in harsh industrial settings.

Q: How is the backplane module mounted?
A: It mounts on a DIN rail, and rack mounting is possible with an optional mounting kit.

Q: Which controller series is this compatible with?
A: It is part of the Moxa ioPAC 6500 Series (65M) backplane modules for the ioPAC 6500 modular programmable controller.

Q: Does it support hot-swapping?
A: Yes. The ioPAC 6500 platform is designed for tool-free, hot-swappable hardware installation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
