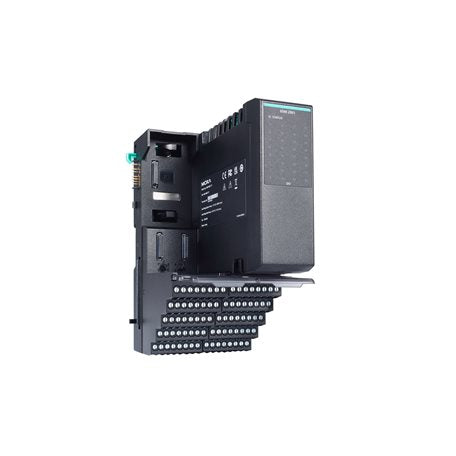

Moxa 65M-5801-CT-T | ioPAC 6500 8-Channel Serial Module, RS-232/422/485, -40 to 75°C

Authorised Moxa Partner

SKU:65M-5801-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ioPAC 6500 8-channel serial I/O module adds eight configurable RS-232, RS-422 or RS-485-2w serial ports to the Moxa ioPAC 6500 modular Linux-based RTU and controller platform. Conformal coating and a -40 to 75°C operating range make it suited to harsh industrial sites such as substations, oil and gas, and transport infrastructure.

The tool-free, hot-swap design lets technicians add or replace serial capacity in the field without rebuilding the controller. 3k VDC isolation between signal and system protects connected equipment, and the matching terminal block 65M-TB-5801-CT-T is required for wiring and is purchased separately.

Features

- Fully modular, Lego-like design for the ioPAC 6500 series
- Tool-free installation and hot-swap design
- Conformal coating for harsh environments
- Wide-temperature operation from -40 to 75°C
- Software-selectable RS-232, RS-422 and RS-485-2w support
- 3k VDC isolation between signal and system

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x serial channels
- Serial standards: RS-232, RS-422, RS-485-2w
- Baudrate: 300 to 115200 bps
- Data bits: 7, 8; stop bits: 1, 2
- Parity: None, Even, Odd
- Flow control: RTS/CTS, XON/XOFF
- Connector: screw-fastened terminal block (65M-TB-5801-CT-T, purchased separately)
- Isolation: 3k VDC between signal and system
- Power consumption: 0.143 A @ 12 VDC
- Dimensions: 42.3 x 102.38 x 80.8 mm
- Weight: 164 g
- Operating temperature: -40 to 75°C
- Conformal coating

FAQs

Q: Which serial standards does this module support?
A: It supports RS-232, RS-422 and RS-485-2w across its eight serial channels.

Q: What terminal block does it need?
A: It uses the matching screw-fastened terminal block 65M-TB-5801-CT-T, which is purchased separately.

Q: What platform is this module designed for?
A: It is a module for the Moxa ioPAC 6500 series modular Linux-based RTU and controller platform.

Q: Is it suitable for harsh environments?
A: Yes. It has conformal coating and operates from -40 to 75°C, and it provides 3k VDC isolation between signal and system.

Q: Can it be replaced without tools?
A: Yes. The ioPAC 6500 modules use a tool-free, hot-swap design for installation and replacement.

Q: What baudrates are supported?
A: Baudrates range from 300 to 115200 bps, with 7 or 8 data bits, 1 or 2 stop bits, and none, even or odd parity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
