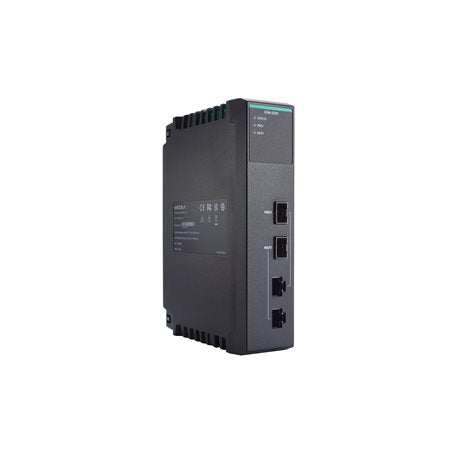

Moxa 65M-5290-CT-T | ioPAC 6500 Expansion Module, 2x RJ45/SFP Combo, Conformal Coating, -40 to 75°C

Authorised Moxa Partner

SKU:65M-5290-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-5290-CT-T is an ioPAC 6500 expansion module that adds two RJ45/SFP combo Ethernet ports to the Linux-based ioPAC 6500 modular RTU and Intelligent Integrated Node. It features conformal coating and a -40 to 75°C operating range (with an SFP module installed), making it suited to harsh industrial environments such as substations, transport and outdoor cabinets.

The module connects over a proprietary expansion interface, with a control unit supporting up to 4 expansion units for adding I/O points. Its tool-free, hot-swap, fully modular design allows flexible deployment and straightforward servicing, with DIN-rail mounting and optional rack mounting.

Features

- Supports a control unit and up to 4 expansion units for adding I/O points
- Tool-free hardware installation and hot-swap design
- Fully modular design for flexible deployment
- 2 SFP + 2 RJ45 combo port design with priority for SFP ports
- Conformal coating for added protection in harsh environments
- Wide -40 to 75°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 2 x RJ45/SFP combo (SFP has priority)
- Interface: Proprietary expansion interface
- Isolation: 1500 VDC/min between external connection port and system
- System power: 0.38 A @ 12 VDC
- Operating temperature: -40 to 75°C (with SFP module installed; proper airflow required above 65°C)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Conformal coating: Yes
- Dimensions: 42 x 177 x 131.5 mm
- Weight: 501 g
- Housing: Plastic
- Installation: DIN-rail mounting; rack mounting with optional kit
- MTBF: 2,800,019 hrs (Telcordia SR-332)
- Standards: EN 55032/35, EN 61000-6-2/-6-4, FCC Part 15B Class A, UL 61010-1, UL 61010-2-201

FAQs

Q: What does the Moxa 65M-5290-CT-T add to an ioPAC 6500 system?
A: It adds two RJ45/SFP combo Ethernet ports to the ioPAC 6500 modular RTU, expanding the system's network connectivity.

Q: How do the combo ports work?
A: The module has 2 x RJ45 and 2 x SFP in a combo port design, with priority given to the SFP ports when both are present.

Q: What is the operating temperature range?
A: The module operates from -40 to 75°C with an SFP module installed. Proper airflow is required above 65°C.

Q: Does this module have conformal coating?
A: Yes. The 65M-5290-CT-T has conformal coating, which helps protect the circuitry in harsh industrial environments.

Q: How many expansion units can be used with one control unit?
A: The ioPAC 6500 supports a control unit with up to 4 expansion units for adding I/O points.

Q: How is the module installed?
A: It mounts on a DIN rail, with rack mounting available using an optional kit. Installation is tool-free and the design supports hot-swap.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
