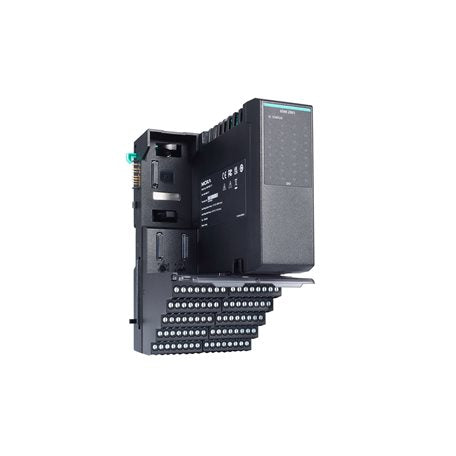

Moxa 65M-4820-CT-T | ioPAC 6500 8-Channel Analog Output Module, V/I, Conformal Coated, -40 to 75°C

Authorised Moxa Partner

SKU:65M-4820-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-4820-CT-T is an ioPAC 6500 analog output I/O module with 8 channels, each configurable for voltage or current output. It is conformal coated and rated for operation from -40 to 75°C, making it suited to harsh industrial automation, process control and remote monitoring installations.

As part of the fully modular ioPAC 6500 series, it integrates into the controller backplane alongside other 65M modules. It provides output short-circuit detection in voltage mode, wire-break detection in current mode and configurable failsafe behaviour. The matching terminal block, 65M-TB-4820-CT-T, must be ordered separately.

Features

- Fully modular design within the ioPAC 6500 series
- Output short-circuit detection in voltage mode
- Output wire-break detection in current mode
- Failsafe configuration with hold last state or failsafe state
- Conformal coating for harsh environments
- Wide -40 to 75°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x analog output channels, voltage or current mode
- Output accuracy: ±0.1% FSR at 25°C, ±0.3% FSR at -40 to 75°C
- Output refresh time: 16 ms
- Output impedance: voltage mode 1 kΩ (min.), current mode 750 Ω (max.)
- Isolation: 3k VDC between signal and system, 1k VDC between groups
- System power consumption: 0.069 A at 12 VDC
- Operating temperature: -40 to 75°C
- Conformal coating
- Terminal block 65M-TB-4820-CT-T sold separately

FAQs

Q: How many channels does the 65M-4820-CT-T have and what output types are supported?
A: It provides 8 analog output channels, and each channel can be set to voltage or current mode.

Q: What operating temperature range is supported?
A: The module is rated for operation from -40 to 75°C.

Q: Is a terminal block included?
A: No. The matching terminal block, 65M-TB-4820-CT-T, must be purchased separately.

Q: Does this module offer fault detection?
A: Yes. It detects output short circuits in voltage mode and wire breaks in current mode.

Q: What does the conformal coating provide?
A: The conformal coating helps protect the circuit board in harsh environments, supporting reliable operation in demanding industrial installations.

Q: What is the output accuracy?
A: Output accuracy is ±0.1% FSR at 25°C and ±0.3% FSR across the full -40 to 75°C range.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
