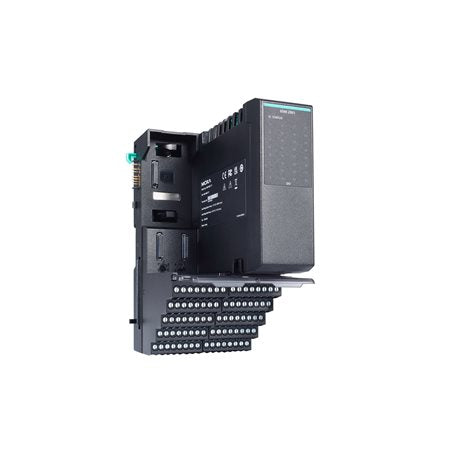

Moxa 65M-3800H-CT-T | ioPAC 6500 HART Analog Input Module, 8-Ch, 4-20mA

Moxa 65M-3800H-CT-T | ioPAC 6500 HART Analog Input Module, 8-Ch, 4-20mA

Authorised Moxa Partner

65M-3800H-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa 65M-3800H-CT-T is an 8-channel HART analog input module for the ioPAC 6500 modular RTU and controller platform. It accepts 4 to 20 mA current signals on differential inputs with 16-bit conversion, making it well suited to process monitoring, field instrumentation and remote telemetry deployments that need digital HART communication alongside the analog signal.

Built with a conformal coating and rated for operation from -40 to 75°C, this module is designed for harsh and outdoor industrial environments. It slots into the fully modular ioPAC 6500 system, and HART module configuration is handled through PACTware.

Features

- Fully modular design within the ioPAC 6500 Series
- HART support for field device communication
- Conformal coating for harsh environments
- Wide operating temperature range of -40 to 75°C
- HART module configuration via PACTware

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x analog input channels (HART)
- I/O mode: HART
- I/O type: differential
- Input range: 4 to 20 mA
- Overload permitted on inputs: 30 mA
- Converter resolution: 16 bits
- Measurement resolution: 1.6 µA (4 to 20 mA)
- Power consumption: 0.072 A @ 12 VDC
- Operating temperature: -40 to 75°C
- Conformal coating (CT)
- Platform: ioPAC 6500 modular RTU/controller

FAQs

Q: What type of signals does the 65M-3800H-CT-T accept?
A: It provides 8 differential analog input channels for 4 to 20 mA current signals with HART support, and inputs tolerate an overload of up to 30 mA.

Q: Which platform is this module designed for?
A: It is an I/O module for the Moxa ioPAC 6500 Series, a modular, Linux-based RTU and controller platform.

Q: What is the operating temperature range?
A: The module is rated for -40 to 75°C, and the conformal coating (CT) helps protect it in harsh environments.

Q: How is HART configured on this module?
A: HART module configuration is performed using PACTware.

Q: What is the measurement resolution?
A: It uses a 16-bit converter with a measurement resolution of 1.6 µA across the 4 to 20 mA range.

Q: What is the power draw of this module?
A: Power consumption is 0.072 A at 12 VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
