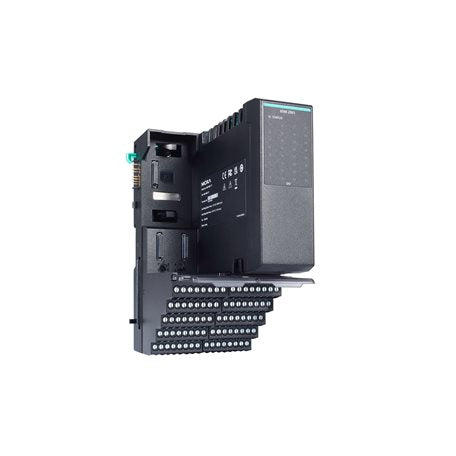

Moxa 65M-3610-CT-T | ioPAC 6500 16-Ch Voltage Input Module, -40 to 75°C, Coated

Authorised Moxa Partner

SKU:65M-3610-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-3610-CT-T is an ioPAC 6500 analog input I/O module with 16 differential voltage-mode channels supporting 0 to 10 V and 1 to 5 V signals. It is conformal coated and rated for -40 to 75°C operation, making it suited to harsh industrial environments such as substations, transport and process automation where moisture and contaminants are a concern.

This hot-swappable module slots into the fully modular ioPAC 6500 Linux-based RTU and controller platform with tool-free installation. It pairs with the matching 65M-TB-3610-CT-T terminal block and supports integration into SCADA, plant information and cloud systems through the ioPAC 6500 host controller.

Features

- Part of the fully modular ioPAC 6500 design for flexible deployment
- Tool-free hardware installation and hot-swappable design
- Conformal coating and -40 to 75°C rating for harsh environments
- Input wire-break detection for improved signal reliability
- Supports multiple IT/OT protocols for SCADA, plant information system and cloud communication
- IINxpress IDE combines IEC 61131-3 programming, configuration and protocol services
- Network redundancy via Turbo Ring, Turbo Chain and RSTP/STP on the host controller

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 analog input channels (voltage mode)
- Differential input type
- Input range: 0 to 10 V, 1 to 5 V
- Measurement resolution: 1 mV (0 to 10 V), 0.4 mV (1 to 5 V)
- Input impedance: 1 mega-ohm
- Overload permitted on inputs: ±12 V
- Input wire-break detection (max delay 1.6 s)
- Isolation: 3k VDC between signal and system, 1k VDC between groups (per min)
- System power consumption: 0.069 A @ 12 VDC
- Field power consumption: 0.038 A @ 24 VDC
- Operating temperature: -40 to 75°C
- Conformal coating for harsh environments
- Matching terminal block: 65M-TB-3610-CT-T

FAQs

Q: What input signals does the 65M-3610-CT-T support?
A: It provides 16 differential voltage-mode analog input channels supporting 0 to 10 V and 1 to 5 V ranges.

Q: Which terminal block is used with this module?
A: The matching terminal block is the Moxa 65M-TB-3610-CT-T.

Q: Can the module be replaced without powering down the system?
A: Yes. The ioPAC 6500 modules are designed to be hot-swappable with tool-free hardware installation.

Q: What is the operating temperature range?
A: The module is rated for -40 to 75°C and is conformal coated for use in harsh environments.

Q: Does this module detect broken input wires?
A: Yes. It includes input wire-break detection with a maximum delay of 1.6 seconds.

Q: What platform does this I/O module work with?
A: It is part of the modular ioPAC 6500 Linux-based RTU and controller platform, which is programmed using the IINxpress IDE.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
