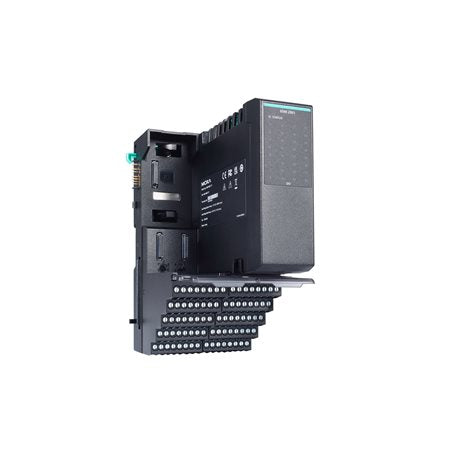

Moxa 65M-2901-CT-T | ioPAC 6500 32-Ch 24 VDC DO Module, Conformal Coating

Authorised Moxa Partner

SKU:65M-2901-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-2901-CT-T is an ioPAC 6500 digital output module with 32 source output channels at 24 VDC. It is built for rugged industrial controller systems, with a conformal coating for harsh environments and an extended -40 to 75°C operating temperature range.

Each channel supports a typical load current of 200 mA and a maximum of 500 mA. Channels 1 to 8 can be configured by software, as a group, for DO or pulse output mode. Diagnostic functions include wire break detection, output short-circuit detection and external power detection, backed by failsafe configuration for dependable control in demanding deployments.

Features

- Wire break detection (on and off state)
- Output short-circuit detection
- External power detection
- Failsafe configuration
- Conformal coating for harsh environments
- Extended -40 to 75°C operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32 digital output channels
- Output type: Source
- 24 VDC common power input (19.2 to 28.8 VDC)
- Common power input current: 6.4 A (max.)
- Load current: 200 mA/channel (typ.), 500 mA/channel (max.)
- DO or pulse output mode (channels 1 to 8, group configurable by software)
- Pulse duration: 500 μs
- Operating temperature: -40 to 75°C
- Conformal coating
- Isolation between signal and system: 3k VDC

FAQs

Q: How many output channels does the Moxa 65M-2901-CT-T have?
A: It provides 32 digital output channels with source output type, operating at 24 VDC.

Q: What load current does each channel support?
A: Each channel supports a typical load current of 200 mA and a maximum of 500 mA.

Q: What operating temperature range does this module support?
A: It operates from -40 to 75°C, which suits harsh industrial environments.

Q: Does this module support pulse output?
A: Yes. Channels 1 to 8 can be configured by software, as a group, for either DO or pulse output mode, with a pulse duration of 500 μs.

Q: What diagnostic functions are included?
A: The module offers wire break detection for both on and off states, output short-circuit detection and external power detection. It also supports failsafe configuration.

Q: What does the conformal coating provide?
A: The conformal coating helps protect the circuitry in harsh environments, making the module suitable for demanding industrial installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
