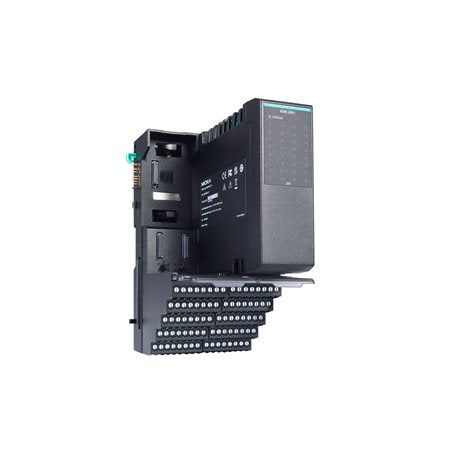

Moxa 65M-1900-CT-T | ioPAC 6500 32-Ch DI Module, 24 VDC, -40 to 75°C, Conformal

Authorised Moxa Partner

SKU:65M-1900-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-1900-CT-T is a 32-channel digital input module for the ioPAC 6500 rugged Linux-based controller platform. It accepts 24 VDC sink-type inputs, operates across a -40 to 75°C temperature range and carries a conformal coating, making it suited to harsh industrial automation and field monitoring deployments.

Channels 1 to 8 can be configured by software as either standard DI or event counter inputs, and digital filtering intervals are software configurable. The module includes wire-break detection and internal field circuit supply detection diagnostics, and integrates with the ioPAC 6500 series, which supports IEC 61131-3 programming.

Features

- Part of the ioPAC 6500 Series of Linux-based controllers with a built-in Layer-2 managed switch
- Supports IEC 61131-3 automation programming
- Input wire-break detection and internal field circuit supply detection diagnostics
- Wide-temperature design with conformal coating for harsh environments
- Software-selectable DI or event counter mode on channels 1 to 8

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32 x digital input channels
- 24 VDC sink-type inputs
- Input voltage: On 11 to 30 VDC, Off 0 to 5 VDC
- Input current (voltage on): 2.35 mA ±20% per channel
- DI or event counter mode on channels 1 to 8, group configurable by software
- Counter frequency: square wave 0 to 10 kHz
- Software-configurable digital filtering time interval
- Internal field circuit supply: 24 VDC (22.8 to 25.2 VDC), 125 mA max., dry contact only
- Isolation between signal and system: 3k VDC
- System power consumption: 0.019 A @ 24 VDC without internal field circuit supply
- System power consumption: 0.115 A @ 24 VDC, 32-channel dry contact with internal field circuit supply
- Field power: 0.068 A @ 12 VDC
- Weight: 253 g (0.56 lb)
- Operating temperature: -40 to 75°C
- Conformal coating

FAQs

Q: How many digital input channels does the 65M-1900-CT-T provide?
A: It provides 32 digital input channels, rated at 24 VDC with sink-type inputs.

Q: What temperature range does this module support?
A: It operates from -40 to 75°C, and the conformal coating adds protection for harsh environments.

Q: Can any channels be used as event counters?
A: Yes. Channels 1 to 8 can be configured by software as DI or event counter inputs, with a square wave counter frequency of 0 to 10 kHz.

Q: Does the module support dry contact field devices?
A: Yes. The internal field circuit supply provides 24 VDC (22.8 to 25.2 VDC) at up to 125 mA maximum for dry contact use.

Q: Is a matching terminal block available?
A: The ioPAC 6500 series datasheet lists terminal block 65M-TB-1900-CT-T for this module.

Q: What diagnostics does the module offer?
A: It supports input wire-break detection and internal field circuit supply detection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
