Moxa 45MR-7820-T | ioThinx 4500 Potential Distributor Module, 8-Ch, -40 to 75°C

Authorised Moxa Partner

SKU:45MR-7820-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

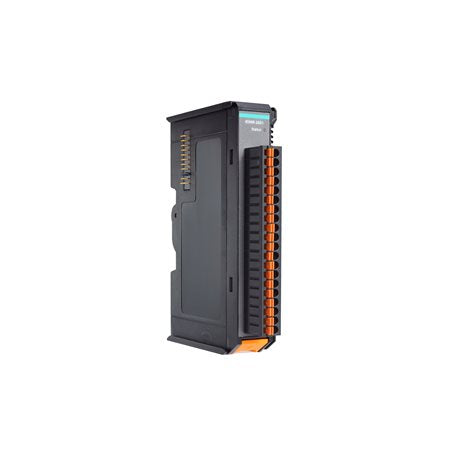

The Moxa 45MR-7820-T is an ioThinx 4500 Series potential distributor module that provides 8 field power output channels at 0 VDC and 12/24 VDC. It is the wide-temperature -40 to 75°C version of the 45MR-7820, built for industrial automation cabinets, outdoor enclosures and other harsh environments where standard temperature modules are not suitable.

The module slots into the ioThinx 4500 modular advanced controller and I/O platform, which also offers digital I/O, analogue I/O, relay, RTD and thermocouple modules. Tool-free installation, DIN-rail mounting and a spring-type Euroblock terminal connector keep wiring fast and tidy, while built-in LED indicators show channel status at a glance.

Features

- Easy tool-free installation and removal
- Built-in LED indicators for I/O channels
- Wide operating temperature range of -40 to 75°C
- Spring-type Euroblock terminal connector
- Part of the ioThinx 4500 series, which offers DI/O, AI/O, relay, RTD, thermocouple and power modules

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x field potential output channels (8 x FP+, 8 x FP-)
- Potential output mode: 0 VDC / 12/24 VDC
- Isolation: 3k VDC or 2k Vrms
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Housing: Plastic
- Installation: DIN-rail mounting
- Wiring: 18 to 24 AWG, I/O cable strip length 9 to 10 mm
- Dimensions: 19.5 x 99.0 x 60.5 mm
- Weight: 73.6 g (0.163 lb)

FAQs

Q: What does the Moxa 45MR-7820-T do?
A: It is a potential distributor module for the ioThinx 4500 Series. It provides 8 field power output channels (FP+ and FP-) so field devices can be supplied at 0 VDC and 12/24 VDC from the I/O station.

Q: How does the 45MR-7820-T differ from the 45MR-7820?
A: The 45MR-7820-T is the wide-temperature version, rated for operation from -40 to 75°C, making it suitable for extreme environments.

Q: Which platform is this module compatible with?
A: It is designed for the Moxa ioThinx 4500 Series modular advanced controller and I/O platform, alongside the other 45MR modules.

Q: How is the module mounted and wired?
A: It mounts on a DIN rail and installs without tools. Wiring uses a spring-type Euroblock terminal connector, accepting 18 to 24 AWG wire with a 9 to 10 mm strip length.

Q: What isolation does the module provide?
A: The module provides 3k VDC or 2k Vrms isolation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
