Moxa 45MR-7820 | ioThinx 4500 Potential Distributor Module, 8-Ch, 12/24 VDC

Authorised Moxa Partner

SKU:45MR-7820

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

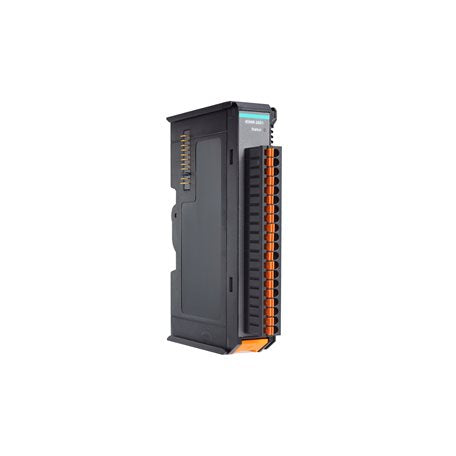

The 45MR-7820 is a potential distributor module for the Moxa ioThinx 4500 Series modular controller and I/O system. It supplies 0 VDC and 12/24 VDC field potential outputs across 8 channels, making it a practical way to distribute field power directly from the DIN rail. This standard temperature version operates from -20 to 60°C.

The compact plastic housing measures 19.5 x 99 x 60.5 mm and mounts on a DIN rail alongside other ioThinx 4500 Series (45MR) modules. Wiring accepts 18 to 24 AWG conductors with a 9 to 10 mm strip length, and the module is rated for up to 4000 m altitude and 5 to 95% non-condensing humidity.

Features

- Expands the ioThinx 4500 Series modular controller and I/O system with field potential distribution
- Provides both 0 VDC and 12/24 VDC potential outputs for field wiring
- Compact DIN-rail module design
- Standard temperature range of -20 to 60°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 field potential output channels
- Potential output mode: 0 VDC and 12/24 VDC
- Housing: Plastic
- Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
- Weight: 73.6 g (0.163 lb)
- Installation: DIN-rail mounting
- Wiring: 18 to 24 AWG, I/O cable strip length 9 to 10 mm
- Operating temperature: -20 to 60°C (-4 to 140°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 4000 m
- EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: What does the Moxa 45MR-7820 do?
A: It is a potential distributor module that provides 0 VDC and 12/24 VDC field potential outputs across 8 channels for the ioThinx 4500 Series.

Q: What operating temperature does the 45MR-7820 support?
A: It operates from -20 to 60°C. A wide-temperature -T variant covering -40 to 75°C is also available.

Q: How is the 45MR-7820 mounted?
A: It mounts on a standard DIN rail in a compact plastic housing measuring 19.5 x 99 x 60.5 mm.

Q: What wire size does the module accept?
A: It accepts 18 to 24 AWG wiring with an I/O cable strip length of 9 to 10 mm.

Q: Which Moxa series is the 45MR-7820 designed for?
A: It is part of the ioThinx 4500 Series (45MR) modules and is intended for use within that modular controller and I/O system.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
