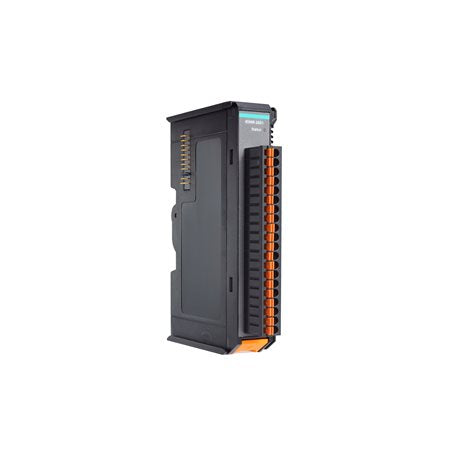

Moxa 45MR-7210-T | ioThinx 4500 Series Power Module, System and Field Input, -40 to 75°C

Authorised Moxa Partner

SKU:45MR-7210-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 45MR-7210-T is a wide-temperature power module for the ioThinx 4500 Series (45MR) remote I/O platform. It adds one system power input channel and one field power input channel, so an ioThinx 4510 or 4533 adapter and its expansion modules can draw the power they need when a single supply is not enough. This -T variant is rated for operation from -40 to 75°C, suiting cabinets and enclosures exposed to extreme temperatures.

The system power input accepts 12 to 48 VDC at up to 1 A, while the field power input supports 12/24 VDC at up to 2 A. Built-in over-voltage and over-current protection safeguards the connected modules, spring-type Euroblock terminals keep wiring quick, and DIN-rail mounting with tool-free installation and removal simplifies deployment and maintenance. Install it to the left of any module position where the power budget would otherwise be exceeded.

Features

- Power module with separate system power and field power inputs
- Tool-free installation and removal
- Built-in LED indicators
- Wide operating temperature range of -40 to 75°C
- Install to the left of modules where power consumption would otherwise be exceeded
- Over-voltage and over-current protection on both power inputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x system power input channel
- 1 x field power input channel
- System power input: 12 to 48 VDC, 1 A max. output current
- System power consumption: 800 mA @ 12 VDC
- System power over-voltage protection: 55 VDC
- System power over-current protection: 1 A @ 25°C
- Field power input: 12/24 VDC, 2 A max. output current
- Field power over-current protection: 2.5 A @ 25°C
- Field power over-voltage protection: 33 VDC
- Connector: spring-type Euroblock terminal
- Wiring: 12 to 18 AWG
- Weight: 77 g (0.17 lb)
- Mounting: DIN-rail
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C

FAQs

Q: What is the Moxa 45MR-7210-T used for?
A: It is a power module for the ioThinx 4500 Series that provides an additional system power input and field power input, supporting an ioThinx 4510 or 4533 adapter and its expansion modules when more power is required.

Q: What input voltages does the 45MR-7210-T support?
A: The system power input accepts 12 to 48 VDC with a maximum output current of 1 A. The field power input supports 12/24 VDC with a maximum output current of 2 A.

Q: What does the -T in 45MR-7210-T mean?
A: The -T suffix denotes the wide-temperature variant, rated for operation from -40 to 75°C (-40 to 167°F).

Q: How is the module mounted and wired?
A: It mounts on a DIN-rail and uses spring-type Euroblock terminals that accept 12 to 18 AWG wire. Installation and removal are tool-free.

Q: Where should the power module be installed in an ioThinx 4500 system?
A: Install it on the left of the module position where the power consumption of the modules would otherwise exceed the available supply.

Q: What protection does the module provide?
A: The system power input has 55 VDC over-voltage protection and 1 A over-current protection at 25°C. The field power input has 33 VDC over-voltage protection and 2.5 A over-current protection at 25°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
