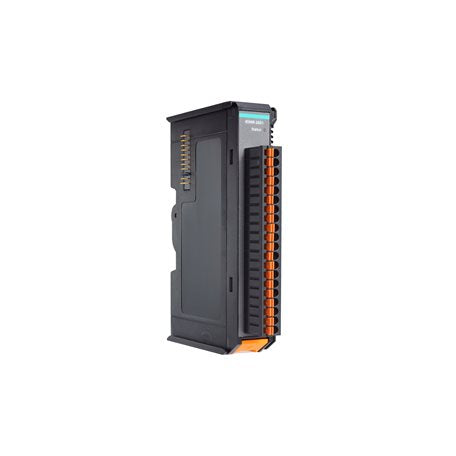

Moxa 45MR-7210 | ioThinx 4500 Power Module, System & Field Inputs, -20 to 60C

Authorised Moxa Partner

SKU:45MR-7210

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 45MR-7210 is an ioThinx 4500 Series power module for remote I/O and modular advanced controller systems. It provides one system power input and one field power input, accepts 12 to 48 VDC, and operates across a standard -20 to 60°C temperature range.

The module connects through a spring-type Euroblock terminal and includes 1 A over-current protection at 25°C. It installs and removes without tools and sits alongside the DI/DO, AI, relay and RTD modules in the ioThinx 4500 (45MR) family. A wide-temperature variant, the 45MR-7210-T, is available for harsher environments.

Features

- Separate system power and field power inputs on a single module
- Tool-free installation and removal
- Spring-type Euroblock terminal for fast, secure wiring
- Part of the ioThinx 4500 (45MR) module family alongside DI/DO, AI, relay and RTD modules

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- System power input channels: 1
- Field power input channels: 1
- Input voltage: 12 to 48 VDC
- Power connector: spring-type Euroblock terminal
- Over-current protection: 1 A @ 25°C
- Operating temperature: -20 to 60°C
- Compatible with the ioThinx 4500 Series

FAQs

Q: What does the Moxa 45MR-7210 do in an ioThinx 4500 system?
A: It supplies power to the ioThinx 4500 Series system through one system power input and one field power input.

Q: What input voltage does the 45MR-7210 accept?
A: It accepts 12 to 48 VDC on its power inputs.

Q: What is the operating temperature range?
A: The standard 45MR-7210 operates from -20 to 60°C. For wide-temperature environments, choose the 45MR-7210-T variant.

Q: Does the module include over-current protection?
A: Yes, it provides 1 A over-current protection at 25°C.

Q: How is the module wired and installed?
A: Power is connected via a spring-type Euroblock terminal, and the module installs and removes without tools.

Q: Which Moxa series is it compatible with?
A: It is designed for the ioThinx 4500 Series modular advanced controller and I/O system.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
