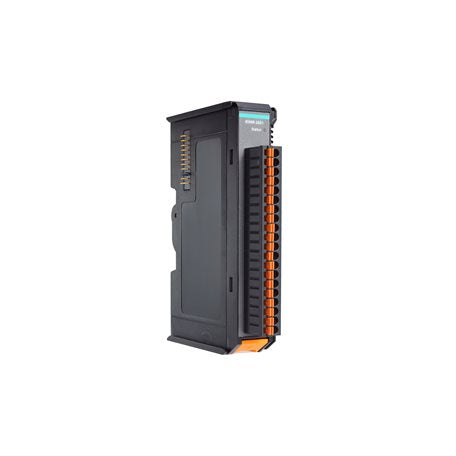

Moxa 45MR-6810 | ioThinx 4500 8-Channel Thermocouple Input I/O Module, -20 to 60°C

Authorised Moxa Partner

SKU:45MR-6810

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 45MR-6810 is an 8-channel thermocouple input module for the ioThinx 4500 Series advanced modular controller and I/O system. It provides 8 thermocouple channels with 3 kV DC isolation and operates across a -20 to 60°C temperature range, making it well suited to industrial temperature monitoring in control cabinets and process environments.

The module expands the ioThinx 4500 Series 45MR range with tool-free DIN-rail mounting and a mechanical design that reduces installation and removal time. It offers accuracy of ±0.1% FSR at 25°C and a 12 samples/sec sampling rate across all channels, giving dependable temperature data for industrial edge connectivity applications.

Features

- Modular I/O expansion module for the ioThinx 4500 Series advanced controllers
- Mechanical design that reduces installation and removal time
- Tool-free DIN-rail mounting
- 8 isolated thermocouple input channels for industrial temperature monitoring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 thermocouple channels
- Isolation: 3k VDC or 2k Vrms
- Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -40 and 75°C
- Sampling rate: 12 samples/sec (all channels), 1.5 samples/sec per channel
- Input impedance: 1 mega-ohm (min.)
- Housing: plastic
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 78.4 g
- Installation: DIN-rail mounting
- Wiring: 18 to 24 AWG, strip length 9 to 10 mm
- Operating temperature: -20 to 60°C (-4 to 140°F)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 4000 m

FAQs

Q: What is the Moxa 45MR-6810 used for?
A: It is a thermocouple input module that adds 8 thermocouple channels to an ioThinx 4500 Series advanced modular controller and I/O system, for industrial temperature measurement.

Q: How many thermocouple channels does the 45MR-6810 provide?
A: It provides 8 thermocouple input channels, with isolation of 3k VDC or 2k Vrms.

Q: What is the operating temperature range?
A: The module operates from -20 to 60°C (-4 to 140°F) and can be stored from -40 to 85°C.

Q: How is the 45MR-6810 mounted?
A: It mounts on a DIN rail without tools, and its mechanical design reduces installation and removal time.

Q: What wire size does the module accept?
A: It accepts 18 to 24 AWG wiring with a strip length of 9 to 10 mm.

Q: What is the sampling rate and accuracy?
A: The module samples at 12 samples/sec across all channels (1.5 samples/sec per channel), with accuracy of ±0.1% FSR at 25°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
