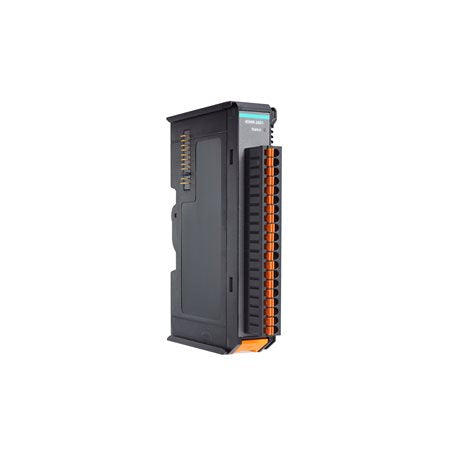

Moxa 45MR-6600-T | ioThinx 4500 6-Channel RTD Input Module, -40 to 75°C

Authorised Moxa Partner

SKU:45MR-6600-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 45MR-6600-T is a 6-channel RTD input module for the ioThinx 4500 Series (45MR) modular advanced controllers and I/Os. This is the wide-temperature variant, rated for operation from -40 to 75°C, making it well suited to harsh industrial environments where standard-temperature modules would not be suitable. It accepts 2- or 3-wire RTD sensors across PT, JPT and NI types for accurate industrial temperature monitoring.

The module offers 3k VDC or 2k Vrms isolation, 0.1°C or 0.1 ohm converter resolution and a hot-pluggable, DIN-rail mounted design with a compact plastic housing. It supports a wide range of RTD sensor types and resistance ranges, so one module can cover many temperature measurement applications within an ioThinx 4500 Series system.

Features

- Wide operating temperature range of -40 to 75°C for harsh industrial environments
- Supports many RTD sensor types, including PT, JPT and NI series
- Hot-pluggable modular design for the ioThinx 4500 Series (45MR) controllers and I/Os, DIN-rail mounted

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 RTD input channels
- Isolation: 3k VDC or 2k Vrms
- Supported RTD types: PT50, PT100, PT200, PT500 (-200 to 850°C); PT1000 (-200 to 350°C)
- Supported RTD types: JPT100, JPT200, JPT500 (-200 to 640°C); JPT1000 (-200 to 350°C); NI100, NI200, NI500 (-60 to 250°C)
- Resistance types: 310, 620, 1250 and 2200 ohms
- Input connection: 2- or 3-wire
- Sampling rate: 12 samples/sec for all channels, 2 samples/sec per channel
- Converter resolution: 0.1°C or 0.1 ohms
- System power consumption: 131.7 mA @ 3.3 VDC
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 78.7 g
- Plastic housing, DIN-rail mounting
- Operating temperature: -40 to 75°C (-40 to 167°F)

FAQs

Q: What is the difference between the 45MR-6600-T and the 45MR-6600?
A: Both are 6-channel RTD input modules. The 45MR-6600-T is the wide-temperature model rated for -40 to 75°C, while the standard 45MR-6600 is rated for -20 to 60°C.

Q: Which RTD sensor types does the 45MR-6600-T support?
A: It supports PT50, PT100, PT200, PT500 and PT1000, JPT100, JPT200, JPT500 and JPT1000, and NI100, NI200 and NI500 sensors, plus resistance inputs of 310, 620, 1250 and 2200 ohms.

Q: How many wires can the RTD inputs use?
A: The module supports 2-wire and 3-wire RTD input connections.

Q: How is the module mounted?
A: It is DIN-rail mounted and uses a hot-pluggable modular design for the ioThinx 4500 Series (45MR) system.

Q: What is the measurement resolution and sampling rate?
A: Converter resolution is 0.1°C or 0.1 ohms. Sampling is 12 samples per second across all channels, or 2 samples per second per channel.

Q: What isolation does the module provide?
A: It provides 3k VDC or 2k Vrms isolation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
