Moxa 45MR-6600 | ioThinx 4500 6-Channel RTD Input Module, -20 to 60°C

Authorised Moxa Partner

SKU:45MR-6600

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

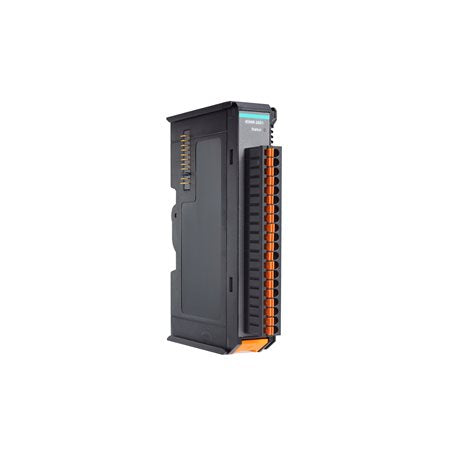

The Moxa 45MR-6600 is a 6-channel RTD input module for the ioThinx 4500 Series (45MR) modular advanced controllers. It accepts PT50, PT100, PT200, PT500, PT1000, JPT100, JPT200 and JPT500 sensors over 2- or 3-wire connections, with 0.1°C resolution and ±0.1% FSR accuracy at 25°C. This standard temperature version operates from -20 to 60°C and mounts on a DIN rail with tool-free installation and removal.

Spring-type Euroblock terminals accept 18 to 24 AWG wiring, and built-in LED indicators show the status of each I/O channel. The module expands an ioThinx 4500 Series controller with precise temperature measurement for industrial monitoring and automation, and can be combined with other 45MR digital, analog, relay and thermocouple modules to suit the application.

Features

- Six RTD channels supporting a wide range of PT and JPT sensor types
- Easy tool-free installation and removal
- Built-in LED indicators for I/O channels
- Modular I/O expansion for ioThinx 4500 Series controllers
- Flexible I/O choices (DI/Os, AIs, relays, RTDs, thermocouples) to fit the application
- Spring-type Euroblock terminals for quick, reliable wiring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x RTD input channels
- RTD sensor types: PT50, PT100, PT200, PT500 (-200 to 850°C); PT1000 (-200 to 350°C); JPT100, JPT200, JPT500 (-200 to 640°C)
- Resistance types: 310, 620, 1250, 2200 ohms
- Input connection: 2- or 3-wire
- Converter resolution: 0.1°C or 0.1 ohms
- Accuracy: ±0.1% FSR @ 25°C
- Sampling rate: 12 samples/sec (all channels), 2 samples/sec per channel
- Isolation: 3k VDC or 2k Vrms
- System power consumption: 131.7 mA @ 3.3 VDC
- Connector: Spring-type Euroblock terminal, 18 to 24 AWG wiring
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 78.7 g
- Housing: Plastic, DIN-rail mounting
- Operating temperature: -20 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 4000 m
- MTBF: 2,291,755 hrs (Telcordia SR332)
- Compliance: RoHS, CRoHS, WEEE

FAQs

Q: Which RTD sensor types does the 45MR-6600 support?
A: It supports PT50, PT100, PT200, PT500 and PT1000 as well as JPT100, JPT200 and JPT500 sensors, plus resistance inputs of 310, 620, 1250 and 2200 ohms.

Q: What controllers is this module designed for?
A: It is an expansion I/O module for Moxa's ioThinx 4500 Series modular advanced controllers, mounted on a DIN rail alongside other 45MR modules.

Q: What is the operating temperature range?
A: This standard version operates from -20 to 60°C. A wide-temperature variant (45MR-6600-T, -40 to 75°C) is a separate model.

Q: Does it support 2-wire and 3-wire RTD connections?
A: Yes, the module supports 2- or 3-wire RTD input connections.

Q: How is the module installed?
A: It clips onto a DIN rail and supports tool-free installation and removal. Field wiring uses spring-type Euroblock terminals accepting 18 to 24 AWG.

Q: What measurement resolution and accuracy can I expect?
A: Converter resolution is 0.1°C or 0.1 ohms, with accuracy of ±0.1% FSR at 25°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
