Moxa 45MR-4420-T | ioThinx 4500 4-Channel Analog Output Module, 0-10V/4-20mA

Authorised Moxa Partner

SKU:45MR-4420-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

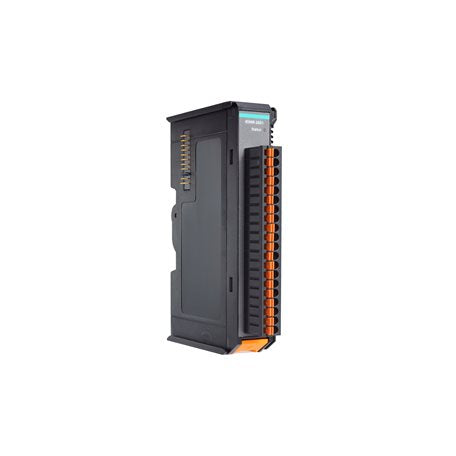

The Moxa 45MR-4420-T is an analog output I/O module for the ioThinx 4500 Series (45MR) modular controller range. It provides 4 analog output channels configurable for voltage or current, covering 0 to 10 VDC, 0 to 20 mA and 4 to 20 mA signals, with 12-bit resolution. A wide -40 to 75°C operating range suits harsh industrial environments such as outdoor cabinets, utilities and process automation.

Software-selectable output modes let one module drive a mix of valves, actuators, drives and other analog-controlled equipment. Spring-type Euroblock terminals allow tool-free wiring, and the module expands ioThinx 4500 Series advanced controllers and I/Os alongside DI/DO, AI, relay and RTD modules.

Features

- Part of the ioThinx 4500 Series modular I/O range, which also offers DI/DO, AI, relay, RTD and other I/O module types
- Software-selectable voltage or current output modes
- Wide-temperature design (-40 to 75°C) for harsh industrial environments
- Spring-type Euroblock terminals for tool-free wiring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x analog outputs (AO)
- I/O mode: voltage or current
- Output range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA
- Resolution: 12-bit
- Accuracy: ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 to 75°C
- Load (current mode, internal power): 500 ohms max.
- Load (voltage mode): 1000 ohms min.
- Connector: spring-type Euroblock terminal
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 4000 m
- MTBF: 1,450,453 hrs (Telcordia SR332)
- Compliance: RoHS, CRoHS, WEEE

FAQs

Q: What output signal types does the 45MR-4420-T support?
A: Its 4 analog output channels support 0 to 10 VDC voltage output as well as 0 to 20 mA and 4 to 20 mA current output.

Q: Which Moxa products is this module designed to work with?
A: It is an expansion I/O module for the ioThinx 4500 Series advanced controllers and I/Os.

Q: What is the operating temperature range?
A: This wide-temperature model operates from -40 to 75°C (-40 to 167°F).

Q: What load can the analog outputs drive?
A: In current mode with internal power the maximum load is 500 ohms. In voltage mode the minimum load is 1000 ohms.

Q: How is the module wired?
A: It uses spring-type Euroblock terminals, which allow tool-free field wiring.

Q: What is the output resolution and accuracy?
A: Resolution is 12-bit. Accuracy is ±0.1% FSR at 25°C and ±0.3% FSR across -40 to 75°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
