Moxa 45MR-4420 | ioThinx 4500 Series 4-Channel Analog Output Module, 0-10V/4-20mA

Authorised Moxa Partner

SKU:45MR-4420

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

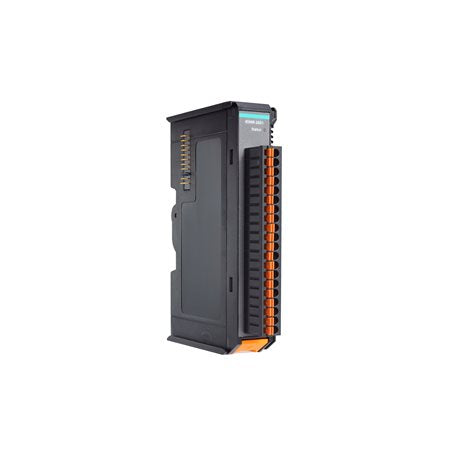

The Moxa 45MR-4420 is a 4-channel analog output I/O module for the ioThinx 4500 Series (45MR) modular advanced controllers and I/Os. Each channel can be configured for voltage or current output, covering 0 to 10 VDC, 0 to 20 mA and 4 to 20 mA ranges with 12-bit converter resolution. This standard temperature model is rated for operation from -20 to 60°C and suits control cabinets, process automation and machine control applications that need precise analog actuation.

The module uses tool-free installation and removal with DIN-rail mounting and spring-type Euroblock terminals, and it mixes with other ioThinx 4500 I/O modules such as digital I/O, analog input, relay, RTD and thermocouple to match the target application. Isolation of 3k VDC or 2k Vrms helps protect field wiring and the controller, and the module carries UL 61010-2-201, ATEX Class I Division 2, RoHS, CRoHS and WEEE certifications.

Features

- Tool-free installation and removal
- Mixes with other ioThinx 4500 I/O modules (DI/DO, AI, relay, RTD, thermocouple) to suit the target application
- Selectable voltage or current output per module
- Standard temperature model rated for -20 to 60°C operation
- 3k VDC or 2k Vrms isolation for reliable field-side protection
- Compact DIN-rail design with spring-type Euroblock terminals

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x Analog Output channels
- I/O mode: Voltage/Current
- Output range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA
- 12-bit converter resolution
- Accuracy: ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 to 75°C
- Load (current mode): 500 ohms max.; Load (voltage mode): 1000 ohms min.
- Isolation: 3k VDC or 2k Vrms
- Connector: Spring-type Euroblock terminal
- System power consumption: 44 mA @ 3.3 VDC
- Field power consumption: 220.2 mA @ 12 VDC; 122.3 mA @ 24 VDC
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 79 g
- Installation: DIN-rail mounting
- Wiring: 18 to 24 AWG
- Operating temperature: -20 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- MTBF: 1,450,453 hrs (Telcordia SR-332)
- Certifications: UL 61010-2-201, ATEX Class I Division 2, RoHS, CRoHS, WEEE

FAQs

Q: What output ranges does the Moxa 45MR-4420 support?
A: The module provides 4 analog output channels supporting 0 to 10 VDC voltage output and 0 to 20 mA or 4 to 20 mA current output, with 12-bit converter resolution.

Q: Which product family is the 45MR-4420 compatible with?
A: It is an I/O module for the Moxa ioThinx 4500 Series (45MR) modular advanced controllers and I/Os and can be combined with other ioThinx 4500 I/O modules.

Q: What is the operating temperature range?
A: This standard temperature model operates from -20 to 60°C. The 45MR-4420-T variant extends the range to -40 to 75°C.

Q: How is the module installed?
A: It mounts on a DIN rail and supports tool-free installation and removal. Field wiring connects through spring-type Euroblock terminals accepting 18 to 24 AWG wire.

Q: What load can the analog outputs drive?
A: In current mode the maximum load is 500 ohms, and in voltage mode the minimum load is 1000 ohms.

Q: What isolation and certifications does the module have?
A: It provides 3k VDC or 2k Vrms isolation and carries UL 61010-2-201, ATEX Class I Division 2, RoHS, CRoHS and WEEE certifications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
