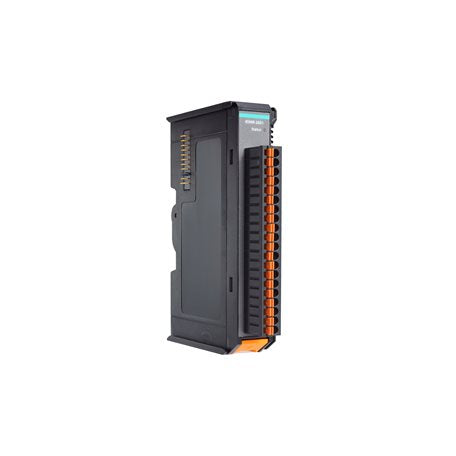

Moxa 45MR-3810-T | ioThinx 4500 Analog Input Module, 8 x AI, -10 to 10V, -40 to 75°C

Authorised Moxa Partner

SKU:45MR-3810-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 45MR-3810-T is an 8-channel analog input I/O module for the ioThinx 4500 Series modular remote I/O system. It measures differential voltage signals of 0 to 10 VDC or -10 to 10 VDC with 16-bit resolution, making it well suited to sensor and process monitoring in industrial automation. As a wide-temperature -T model, it operates from -40 to 75°C for harsh environments.

Part of the ioThinx 4500 Series (45MR modules), it can be mixed with digital I/O, relay, RTD and other module types to match the I/O combination of the target application. Spring-type Euroblock terminals simplify wiring, and over-voltage protection helps safeguard the inputs.

Features

- Part of the ioThinx 4500 Series (45MR), which offers DI/O, AI, relay, RTD and other I/O module types
- Modules can be mixed to match the I/O combination of the target application
- Wide operating temperature range of -40 to 75°C for harsh industrial environments
- 16-bit resolution voltage measurement across 8 differential input channels

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x Analog Input channels
- I/O mode: voltage, differential input type
- Input range: 0 to 10 VDC or -10 to 10 VDC
- Resolution: 16 bits
- Connector: spring-type Euroblock terminal
- Over-voltage protection: -25 to +30 VDC (power on), -35 to +35 VDC (power off)
- Accuracy: ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 and 75°C
- Sampling rate: 100 samples/sec (all channels), 12.5 samples/sec per channel, 100 samples/sec single channel
- Load (voltage mode): 1000 ohms min.
- Operating temperature: -40 to 75°C (wide temperature -T model)

FAQs

Q: What signal types does the Moxa 45MR-3810-T measure?
A: It measures voltage signals on 8 differential analog input channels, with a selectable input range of 0 to 10 VDC or -10 to 10 VDC.

Q: What is the operating temperature range?
A: As a wide-temperature -T model, the 45MR-3810-T operates from -40 to 75°C.

Q: What resolution and accuracy does it offer?
A: The module provides 16-bit resolution with an accuracy of ±0.1% FSR at 25°C and ±0.3% FSR at -40 and 75°C.

Q: Which system does this module belong to?
A: It is part of the ioThinx 4500 Series (45MR modules), a modular remote I/O system where different module types can be combined to suit the application.

Q: Can it measure current signals such as 4-20 mA?
A: No. This model is a voltage-mode module for 0 to 10 VDC and -10 to 10 VDC inputs.

Q: How are field devices connected to the module?
A: Field wiring connects through spring-type Euroblock terminals.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
