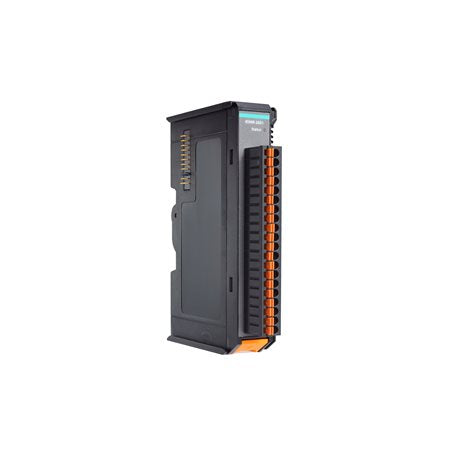

• Moxa 45MR-3810 ioThinx 4500 black PLC module with orange terminals, teal label
1 1

Moxa

Moxa 45MR-3810 | ioThinx 4500 8-Ch Analog Input Module, \u00b110V, -20 to 60\u00b0C

Moxa 45MR-3810 | ioThinx 4500 8-Ch Analog Input Module, \u00b110V, -20 to 60\u00b0C

Authorised Moxa Partner

45MR-3810

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa 45MR-3810 is an ioThinx 4500 Series analog input I/O module with 8 differential voltage input channels, supporting 0 to 10 VDC or \u00b110 VDC ranges.

Rated for standard-temperature industrial environments from -20 to 60\u00b0C, it delivers 16-bit resolution for precise process and sensor signal acquisition.\n\nThis hot-pluggable, tool-free module mounts on a DIN rail and expands ioThinx 4500 Series modular advanced controllers and I/O. Spring-type Euroblock terminals, 3k VDC isolation and over-voltage protection make it suited to demanding factory automation and industrial edge connectivity deployments.

Features

- Tool-free installation and removal of modules
- Hot-pluggable design for quick setup and replacement
- 16-bit resolution for accurate analog signal acquisition
- Spring-type Euroblock terminals for fast, reliable wiring
- Part of a wide range of ioThinx 4500 I/O module types including DI/DO, AI, relay, RTD and thermocouple

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x analog input channels, differential voltage input
- Input range: 0 to 10 VDC or \u00b110 VDC
- 16-bit converter resolution
- Accuracy: \u00b10.1% FSR @ 25\u00b0C, \u00b10.3% FSR @ -40 and 75\u00b0C
- Sampling rate: 100 samples/sec (all channels), 12.5 samples/sec per channel
- Input impedance: 10 mega-ohms (min.)
- Over-voltage protection: -25 to +30 VDC (power on), -35 to +35 VDC (power off)
- Isolation: 3k VDC or 2k Vrms
- Connector: spring-type Euroblock terminal, 18 to 24 AWG wiring
- Power consumption: 187 mA @ 3.3 VDC
- Operating temperature: -20 to 60\u00b0C
- Plastic housing, DIN-rail mounting
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 79 g
- MTBF: 2,478,459 hrs
- Safety: UL 61010-2-201; EMC: EN 55032/24, FCC Part 15B Class A

FAQs

Q: What input ranges does the 45MR-3810 support?
A: It provides 8 differential voltage input channels supporting 0 to 10 VDC or \u00b110 VDC.

Q: What is the operating temperature range of the 45MR-3810?
A: The standard model operates from -20 to 60\u00b0C. A wide-temperature 45MR-3810-T variant is available for -40 to 75\u00b0C environments.

Q: Is the module hot-pluggable?
A: Yes. The ioThinx 4500 Series modules support tool-free, hot-pluggable installation and removal.

Q: What resolution and accuracy does it offer?
A: The converter has 16-bit resolution with accuracy of \u00b10.1% FSR at 25\u00b0C.

Q: How is the module mounted and wired?
A: It mounts on a DIN rail and uses spring-type Euroblock terminals accepting 18 to 24 AWG wire with a 9 to 10 mm strip length.

Q: Which controllers does this module work with?
A: It is an expansion module for the Moxa ioThinx 4500 Series modular advanced controllers and I/O.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
