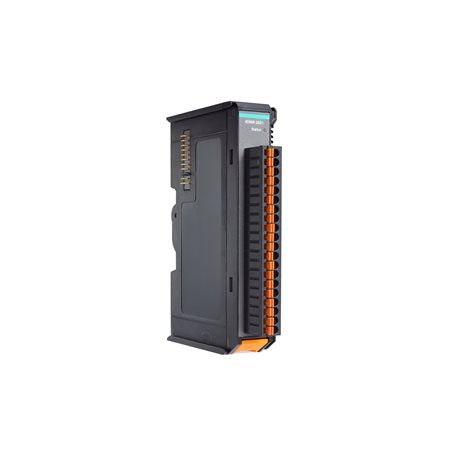

Moxa 45MR-2606-T | ioThinx 4500 Series Remote I/O Module, 8 DI, 8 DO, 24 VDC, -40 to 75°C

Authorised Moxa Partner

SKU:45MR-2606-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 45MR-2606-T is an ioThinx 4500 Series (45MR) remote I/O module that adds 8 digital inputs (24 VDC, PNP) and 8 source-type digital outputs to an ioThinx 4500 system. As the wide-temperature variant, it operates from -40 to 75°C, making it suited to harsh industrial cabinets, outdoor enclosures and process environments.

The first two input channels support an event counter function with a 1 kHz counter frequency, and the first two output channels support pulse output at up to 1 kHz. Digital filtering on the inputs is software configurable, and spring-type Euroblock terminals allow tool-free wiring. The module is designed as an expansion for the ioThinx 4500 Series advanced controllers and I/Os.

Features

- Software-configurable digital filtering time interval on inputs
- Event counter function on the first 2 DI channels
- Pulse output function on the first 2 DO channels
- Spring-type Euroblock terminals for tool-free wiring
- Wide-temperature (-T) variant for harsh industrial environments
- Part of the modular ioThinx 4500 Series, which offers DI/O, AI, relay, RTD and other I/O module types

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x digital input channels (24 VDC, PNP wet contact or dry contact)
- 8 x digital output channels (source type)
- DI mode: DI or event counter (first 2 channels only), 1 kHz counter frequency
- DO mode: DO or pulse output (first 2 channels only), 1 kHz pulse output frequency
- Wet contact (DI to FP-): ON 10 to 30 VDC, OFF 0 to 3 VDC
- DO external power: 12/24 VDC
- DO current rating: 500 mA per channel
- DO over-voltage protection: 45 VDC
- DO over-temperature shutdown: 175°C typical, 150°C min.
- Isolation: 3k VDC or 2k Vrms
- Connectors: spring-type Euroblock terminal
- Operating temperature: -40 to 75°C

FAQs

Q: How many digital inputs and outputs does the Moxa 45MR-2606-T provide?
A: It provides 8 digital input channels (24 VDC, PNP, wet or dry contact) and 8 source-type digital output channels.

Q: What is the operating temperature range of the 45MR-2606-T?
A: As a wide-temperature (-T) model, it operates from -40 to 75°C.

Q: Which channels support counter and pulse functions?
A: The first 2 DI channels can operate as event counters at up to 1 kHz, and the first 2 DO channels can operate as pulse outputs at up to 1 kHz.

Q: What current can each digital output handle?
A: Each DO channel is rated for 500 mA, with external power of 12/24 VDC and over-voltage protection up to 45 VDC.

Q: What system is the 45MR-2606-T designed to work with?
A: It is an expansion I/O module for the Moxa ioThinx 4500 Series advanced controllers and I/Os.

Q: How is the module wired?
A: It uses spring-type Euroblock terminals, which allow tool-free wiring.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
