Moxa 45MR-2606 | ioThinx 4500 I/O Module, 8 DI PNP, 8 DO Source, 24 VDC

Authorised Moxa Partner

SKU:45MR-2606

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

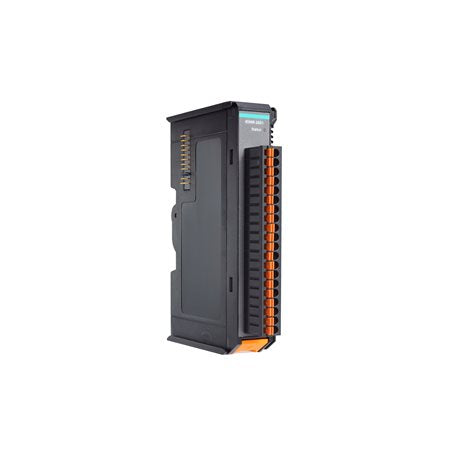

The ioThinx 4500 Series (45MR) I/O module is a DIN-rail expansion module that adds 8 PNP digital inputs and 8 source-type digital outputs at 24 VDC to an ioThinx 4500 Series controller or I/O system. It is designed for standard-temperature industrial automation, with an operating range of -20 to 60°C, and suits machine monitoring, panel control and factory-floor signal acquisition.

The first two input channels can operate as event counters at up to 1 kHz, and the first two output channels support pulse output at up to 1 kHz. Each output is rated at 500 mA with over-temperature shutdown protection, and 3k VDC isolation separates field wiring from the system. Spring-type Euroblock terminals and tool-free installation keep wiring and replacement quick.

Features

- Easy tool-free installation and removal
- Built-in LED indicators for I/O channels
- Compatible with the ioThinx 4500 Series (45MR) controller and module family
- Software-configurable digital filtering time interval
- Event counter and pulse output functions on selected channels
- Over-temperature shutdown protection on outputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x digital inputs, 24 VDC, PNP wet contact / dry contact
- 8 x digital outputs, 24 VDC, source type
- DI mode: DI or event counter (first 2 channels only), 1 kHz counter frequency
- DO mode: DO or pulse output (first 2 channels only), 1 kHz pulse output frequency
- Wet contact: On 10 to 30 VDC, Off 0 to 3 VDC
- DO current rating: 500 mA per channel, external power 12/24 VDC
- Over-temperature shutdown: 175°C typical, 150°C minimum
- Isolation: 3k VDC or 2k Vrms
- Connector: spring-type Euroblock terminal
- Power consumption: 62.7 mA @ 3.3 VDC system, 15.4 mA @ 12 VDC / 18.7 mA @ 24 VDC field
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 77.4 g
- Mounting: DIN-rail
- Operating temperature: -20 to 60°C
- Certifications: CISPR 32, FCC Part 15B Class A, EN 55032/35, UL 61010-2-201, ATEX, Class I Division 2

FAQs

Q: What type of digital inputs and outputs does the 45MR-2606 provide?
A: It provides 8 PNP digital inputs and 8 source-type digital outputs, all rated for 24 VDC operation.

Q: Which ioThinx systems is this module designed for?
A: It is part of the ioThinx 4500 Series (45MR) module family and is designed to expand ioThinx 4500 Series advanced controllers and I/O systems.

Q: Can any channel be used as a counter or pulse output?
A: Yes. The first two DI channels can function as event counters at up to 1 kHz, and the first two DO channels can function as pulse outputs at up to 1 kHz.

Q: What is the output current rating?
A: Each digital output is rated at 500 mA per channel with 12/24 VDC external power, and includes over-temperature shutdown protection.

Q: What is the operating temperature range?
A: This standard-temperature model operates from -20 to 60°C. It is not the extended-temperature (T) variant.

Q: How is the module mounted and wired?
A: It mounts on a DIN rail and uses spring-type Euroblock terminals, with tool-free installation and removal.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
