Moxa 45MR-2601-T | ioThinx 4500 16-Ch Digital Output Module, 24 VDC Source, -40 to 75°C

Authorised Moxa Partner

SKU:45MR-2601-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

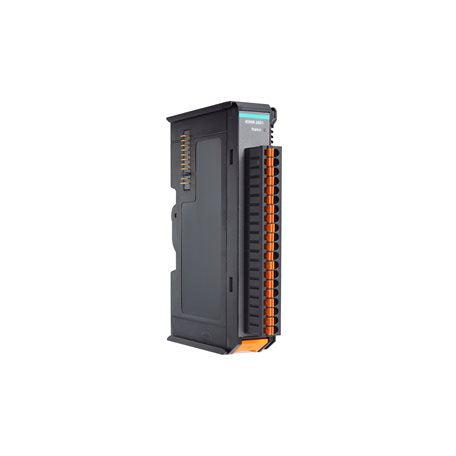

The Moxa 45MR-2601-T is a 16-channel digital output I/O module for the ioThinx 4500 Series (45MR) advanced controllers and I/Os. It provides 16 source-type outputs on a 12/24 VDC field supply, with a wide-temperature -T rating of -40 to 75°C for harsh industrial environments.

Each channel is rated at 500 mA with over-temperature shutdown protection, and the first four channels can also operate as 1 kHz pulse outputs. Spring-type Euroblock terminals allow tool-free wiring, and the compact DIN-rail design lets it slot into modular ioThinx 4500 Series I/O configurations.

Features

- 16 source-type digital output channels in a single module
- First four channels support 1 kHz pulse output
- Over-temperature shutdown protects outputs under fault conditions
- Spring-type Euroblock terminals for tool-free wiring
- Wide operating temperature range of -40 to 75°C for harsh environments
- Compact DIN-rail mountable design
- Part of the modular ioThinx 4500 Series, so I/O types can be combined to suit the application

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital output channels, source type
- I/O mode: DO or pulse output (first 4 channels only)
- Pulse output frequency: 1 kHz
- External power: 12/24 VDC
- Current rating: 500 mA per channel
- Over-temperature shutdown: 175°C typical, 150°C min.
- Isolation: 3k VDC or 2k Vrms
- Connector: spring-type Euroblock terminal
- Wiring: 18 to 22 AWG, strip length 9 to 10 mm
- System power consumption: 63.8 mA @ 3.3 VDC
- Housing: plastic, DIN-rail mounting
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 77 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 4000 m
- MTBF: 660,179 hrs (Telcordia SR332)

FAQs

Q: Is the 45MR-2601-T a source or sink output module?
A: It is a source-type digital output module with 16 channels, powered from a 12/24 VDC field supply.

Q: What is the current rating per channel?
A: Each digital output channel is rated at 500 mA, with over-temperature shutdown protection.

Q: Can any channel be used for pulse output?
A: Pulse output at 1 kHz is available on the first four channels only. The remaining channels operate as standard digital outputs.

Q: What operating temperature range does it support?
A: The -T model operates from -40 to 75°C, suiting outdoor cabinets and harsh industrial sites.

Q: How is the module wired and mounted?
A: It uses spring-type Euroblock terminals accepting 18 to 22 AWG wire with a 9 to 10 mm strip length, and mounts on a DIN rail.

Q: Which Moxa product family does this module belong to?
A: It belongs to the ioThinx 4500 Series (45MR) modules, which are expansion I/O modules for the ioThinx 4500 advanced controllers and I/Os.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
