Moxa 45MR-2600-T | ioThinx 4500 Digital Output Module, 16 DOs, 24 VDC Sink, -40 to 75°C

Authorised Moxa Partner

SKU:45MR-2600-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

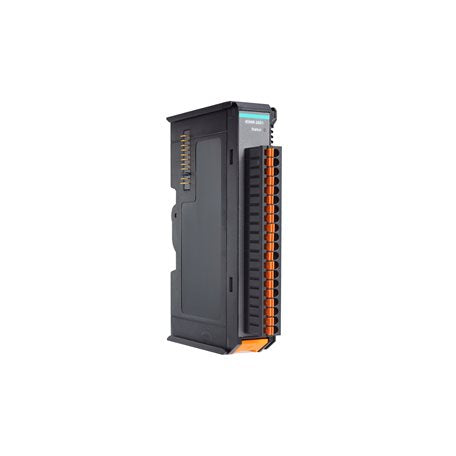

The Moxa 45MR-2600-T is a 16-channel digital output expansion module for the ioThinx 4500 Series, with sink-type outputs at 24 VDC. This wide-temperature variant operates from -40 to 75°C, making it suited to harsh industrial environments, control cabinets and remote automation sites. A hot-pluggable, tool-free design simplifies installation and replacement.

The module offers DO or pulse output modes on the first four channels at 1 kHz, and connects through a spring-type Euroblock terminal for 18 to 24 AWG wiring. It mounts on a DIN-rail and works within the modular ioThinx 4500 Series (45MR) ecosystem, alongside controllers and protocol gateways such as the 4510.

Features

- Tool-free installation and removal
- Hot-pluggable module design
- Part of the modular ioThinx 4500 Series, with DI, DO, AI, AO, relay, RTD and thermocouple module options
- Compatible with ioThinx 4500 Series (45MR) modules and controllers/protocol gateways such as the 4510
- Wide operating temperature range for harsh industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital output channels
- Sink-type outputs, 24 VDC
- I/O mode: DO or pulse output (first 4 channels only)
- Pulse output frequency: 1 kHz
- Connector: spring-type Euroblock terminal
- Wiring: 18 to 24 AWG
- Dimensions: 19.5 x 99.0 x 60.5 mm
- Mounting: DIN-rail
- Operating temperature: -40 to 75°C (wide temp model)
- MTBF: 647,334 hrs

FAQs

Q: What type of outputs does the 45MR-2600-T provide?
A: It provides 16 sink-type digital outputs at 24 VDC. The first four channels can also be configured for pulse output at 1 kHz.

Q: What is the operating temperature range?
A: This is the wide-temperature (-T) model, rated for operation from -40 to 75°C.

Q: Which Moxa products is this module compatible with?
A: It is designed for the ioThinx 4500 Series (45MR) modules and works with controllers and protocol gateways such as the 4510.

Q: How is the module installed and wired?
A: It mounts on a DIN-rail and installs and removes without tools. Wiring uses a spring-type Euroblock terminal that accepts 18 to 24 AWG conductors.

Q: Can the module be swapped while the system is running?
A: Yes, the module is hot-pluggable, so it can be added or replaced without a full system shutdown.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
