Moxa 45MR-2600 | ioThinx 4500 Series 16-Channel Digital Output Module, 24 VDC Sink

Authorised Moxa Partner

SKU:45MR-2600

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

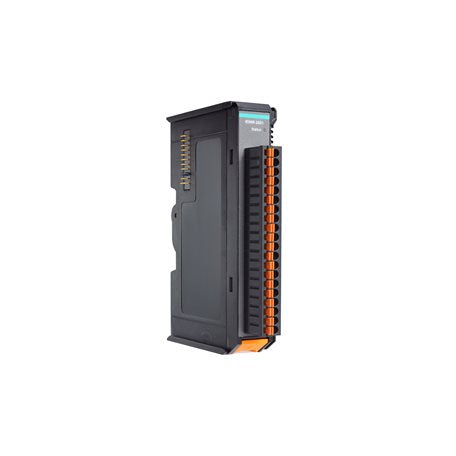

The Moxa 45MR-2600 is a digital output I/O module for the ioThinx 4500 Series (45MR) modular advanced controllers. It provides 16 sink-type digital output channels at 24 VDC with 500 mA per channel and is rated for operation from -20 to 60°C, making it suited to industrial automation and edge connectivity deployments.

The first four channels can operate in DO or pulse output mode at up to 1 kHz. Built-in protections include short-circuit protection, 45 VDC over-voltage protection and over-temperature shutdown, with 3k VDC isolation. The module uses a spring-type Euroblock terminal, mounts on a DIN rail, and is compatible with ioThinx 4500 Series (45MR) controllers, which support up to 32 expansion modules.

Features

- Easy tool-free installation and removal
- Built-in LED indicators for I/O channels
- Compatible with ioThinx 4500 Series (45MR) controllers, which support up to 32 expansion modules
- Spring-type Euroblock terminal for wiring
- Short-circuit, over-voltage and over-temperature protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 digital output channels
- I/O type: Sink
- External power: 12/24 VDC
- Current rating: 500 mA per channel
- I/O mode: DO or pulse output (first 4 channels only), pulse output frequency 1 kHz
- Over-voltage protection: 45 VDC
- Over-temperature shutdown: 175°C (typical), 150°C (min.)
- Short-circuit protection supported
- Isolation: 3k VDC or 2k Vrms
- Connector: Spring-type Euroblock terminal
- Wiring: 18 to 24 AWG I/O cable, strip length 9 to 10 mm
- System power consumption: 57.2 mA @ 3.3 VDC
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 77.4 g
- Housing: Plastic
- Installation: DIN-rail mounting
- Operating temperature: -20 to 60°C
- MTBF: 647,334 hrs (Telcordia SR332)

FAQs

Q: What type of outputs does the Moxa 45MR-2600 provide?
A: It provides 16 sink-type digital output channels at 24 VDC, with a current rating of 500 mA per channel.

Q: Which controllers is the 45MR-2600 compatible with?
A: It is an expansion module for the ioThinx 4500 Series (45MR) modular advanced controllers, which support up to 32 expansion modules.

Q: Can any channels be used for pulse output?
A: Yes. The first four channels can be configured for either DO or pulse output, with a pulse output frequency of 1 kHz.

Q: What protections does the module include?
A: It includes short-circuit protection, 45 VDC over-voltage protection and over-temperature shutdown, along with 3k VDC isolation.

Q: What is the operating temperature range?
A: The module is rated for operation from -20 to 60°C.

Q: How is the module installed and wired?
A: It mounts on a DIN rail without tools and uses a spring-type Euroblock terminal that accepts 18 to 24 AWG I/O cable.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
