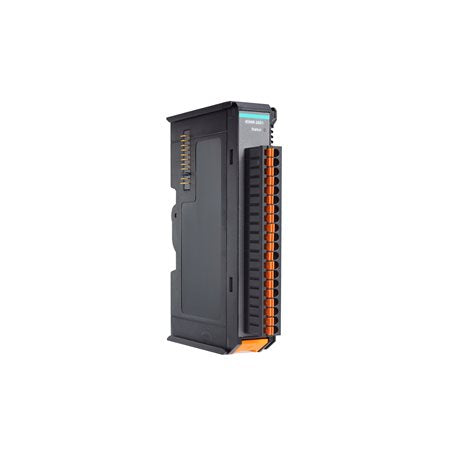

Moxa 45MR-2404-T | ioThinx 4500 4-Channel Relay I/O Module, Form A, -40 to 75°C

Authorised Moxa Partner

SKU:45MR-2404-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 45MR-2404-T is a 4-channel Form A relay I/O module for the ioThinx 4500 Series (45MR) modular advanced controllers and I/Os. It provides four N.O. power relay outputs rated at 2 A at 30 VDC or 250 VDC (resistive load), and its wide operating temperature range of -40 to 75°C suits cabinets and installations outside climate-controlled rooms.

The module uses spring-type Euroblock terminals and tool-free DIN-rail installation, so it can be added to or removed from an ioThinx 4500 system quickly. Built-in LED indicators show the status of each I/O channel, and 3k VDC isolation separates field wiring from the system side.

Features

- Wide operating temperature range of -40 to 75°C
- Tool-free installation and removal
- Built-in LED indicators for I/O channels
- 4 Form A (N.O.) power relay outputs
- Spring-type Euroblock terminals for fast field wiring
- Designed for the ioThinx 4500 Series modular controllers and I/Os

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x Relay channels, Form A (N.O.) power relay, DO mode
- Contact rating (resistive load): 2 A @ 30 VDC, 2 A @ 250 VDC
- Relay on/off time: 10 ms (max.)
- Isolation: 3k VDC or 2k Vrms
- Initial insulation resistance: 1000 megaohms (min.) @ 500 VDC
- Mechanical endurance: 5,000,000 operations
- Electrical endurance: 50,000 operations @ 2 A resistive load
- Contact resistance: 100 milliohms (max.)
- Connector: Spring-type Euroblock terminal, 18 AWG wiring, 9 to 10 mm strip length
- System power consumption: 44 mA @ 3.3 VDC
- Field power consumption: 31.2 mA @ 12 VDC, 24.7 mA @ 24 VDC
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 88.4 g
- Housing: Plastic, DIN-rail mounting
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing

FAQs

Q: What does the Moxa 45MR-2404-T do?
A: It is a relay output module that adds four Form A (N.O.) power relay channels to an ioThinx 4500 Series modular controller or I/O system.

Q: What is the contact rating of the relays?
A: Each relay is rated at 2 A at 30 VDC or 2 A at 250 VDC for resistive loads.

Q: What temperature range does this module support?
A: It operates from -40 to 75°C (-40 to 167°F), so it is suitable for installations outside climate-controlled environments.

Q: How is the module installed and wired?
A: It mounts on a DIN rail without tools and uses spring-type Euroblock terminals that accept 18 AWG wiring with a 9 to 10 mm strip length.

Q: Which systems is this module compatible with?
A: It is designed for the Moxa ioThinx 4500 Series modular advanced controllers and I/Os.

Q: How many switching operations can the relays handle?
A: The relays are rated for 5,000,000 mechanical operations and 50,000 electrical operations at a 2 A resistive load.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
