Moxa 45MR-1601-T | ioThinx 4500 45MR 16-Ch Digital Input Module, 24 VDC NPN

Authorised Moxa Partner

SKU:45MR-1601-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

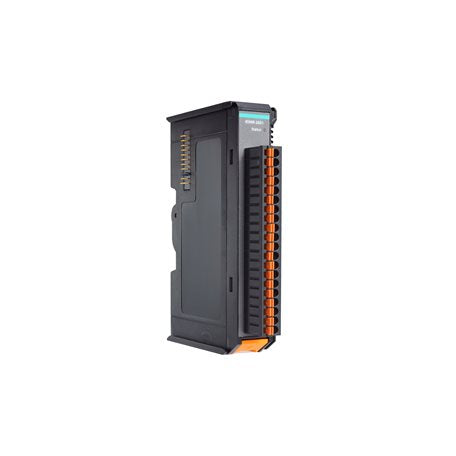

The 45MR-1601-T is a 16-channel digital input I/O module for the ioThinx 4500 Series, built for industrial edge connectivity. It supports 24 VDC NPN wet contact and dry contact sensors, and operates across a -40 to 75°C temperature range, making it suited to harsh cabinet and field installations.

The first four channels can also operate as event counters at up to 1 kHz, while digital filtering is software configurable to suit noisy signals. Spring-type Euroblock terminals allow tool-free wiring, and the compact DIN-rail mountable housing expands ioThinx 4500 Series advanced controllers and I/Os with additional digital input capacity.

Features

- Wide operating temperature range of -40 to 75°C for harsh industrial environments
- Spring-type Euroblock terminals for tool-free wiring
- Software-configurable digital filtering
- Supports both dry contact and NPN wet contact sensors
- Compact DIN-rail mountable design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital inputs
- 24 VDC, NPN (wet contact) or dry contact sensor type
- Isolation: 3k VDC or 2k Vrms
- Connector: spring-type Euroblock terminal
- I/O mode: DI or event counter (first 4 channels only), 1 kHz counter frequency
- Wet contact: On 10 to 30 VDC, Off 0 to 3 VDC
- Digital filtering time interval: software configurable
- System power consumption: 59.4 mA @ 3.3 VDC
- Field power consumption: 19.3 mA @ 12 VDC, 25.3 mA @ 24 VDC
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 77.6 g
- Plastic housing, DIN-rail mounting
- Wiring: 18 to 24 AWG, strip length 9 to 10 mm
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 4000 m
- EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: What type of sensors does the 45MR-1601-T support?
A: It supports 24 VDC NPN wet contact sensors and dry contact sensors across its 16 digital input channels.

Q: Can any of the inputs be used as counters?
A: Yes. The first four channels can operate in event counter mode with a counter frequency of up to 1 kHz. The remaining channels operate as standard digital inputs.

Q: What is the operating temperature range?
A: The module operates from -40 to 75°C, which suits harsh industrial environments and outdoor or unconditioned cabinets.

Q: How is the module mounted and wired?
A: It mounts on a DIN rail and uses spring-type Euroblock terminals accepting 18 to 24 AWG wire with a 9 to 10 mm strip length.

Q: Which Moxa product family does this module belong to?
A: It is part of the ioThinx 4500 Series (45MR) modules, used to expand ioThinx 4500 Series advanced controllers and I/Os.

Q: What are the wet contact voltage thresholds?
A: For wet contact sensors, the On state is 10 to 30 VDC and the Off state is 0 to 3 VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
