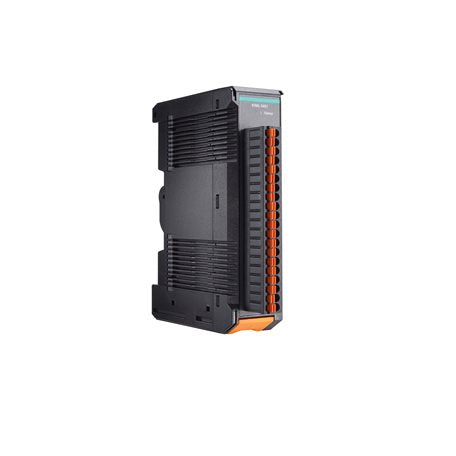

Moxa 45ML-5401 | ioThinx 4500 Series Serial Module, 4-Port RS-232/422/485

Authorised Moxa Partner

SKU:45ML-5401

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 45ML-5401 is an ioThinx 4500 Series serial interface I/O module that adds four software-selectable RS-232/422/485 serial ports to a modular advanced controller. Rated for -20 to 60°C standard-temperature operation, it suits factory automation, building automation and other industrial control cabinets where serial devices such as meters, PLCs and sensors must be integrated.

The module uses spring-type Euroblock terminals and DIN-rail mounting for tool-free installation and removal. It expands the ioThinx 4500 Series head module (ioThinx 4530), carries ATEX Class I Division 2 hazardous location approval, and is built to IEC shock and vibration standards. A wide-temperature sibling, the 45ML-5401-T, is available for -40 to 75°C environments.

Features

- Four serial ports in one module for compact serial expansion
- 3-in-1 RS-232/422/485 serial interface
- Expands the ioThinx 4500 Series head module with serial connectivity
- Tool-free installation and removal
- Spring-type Euroblock terminals for fast, reliable wiring
- DIN-rail mounting for control cabinet deployment

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x serial ports (RS-232, RS-422, RS-485-2w)
- Connector: Spring-type Euroblock terminal
- Operating temperature: -20 to 60°C (-4 to 140°F)
- Storage temperature: -40 to 85°C (package included)
- System power consumption: 74.1 mA @ 12 VDC, 37.05 mA @ 24 VDC
- Field power consumption: 140.4 mA @ 12 VDC, 59.8 mA @ 24 VDC
- Dimensions: 26.4 x 99 x 65.5 mm
- Weight: 115 g
- Housing: Plastic
- Installation: DIN-rail mounting
- Wiring: serial cable 18 to 24 AWG, strip length 9 to 10 mm
- Safety: EN 61010-2-201
- Hazardous locations: ATEX Class I Division 2
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- MTBF: 916,671 hrs (Telcordia SR-332)
- Green product: RoHS, CRoHS, WEEE

FAQs

Q: What serial interfaces does the Moxa 45ML-5401 support?
A: It provides four serial ports supporting RS-232, RS-422 and RS-485 (2-wire) interfaces.

Q: What is the operating temperature range of the 45ML-5401?
A: The standard 45ML-5401 operates from -20 to 60°C. For -40 to 75°C environments, the wide-temperature 45ML-5401-T model is available.

Q: How is the 45ML-5401 installed?
A: It mounts on a DIN rail alongside the ioThinx 4500 Series head module and connects through spring-type Euroblock terminals. Installation and removal are tool-free.

Q: What cable can be wired to the terminals?
A: Serial cable of 18 to 24 AWG with a strip length of 9 to 10 mm.

Q: Is the 45ML-5401 approved for hazardous locations?
A: Yes, it carries ATEX Class I Division 2 hazardous location approval.

Q: How does the 45ML-5401 differ from the 45ML-5401-T?
A: Both provide four RS-232/422/485 serial ports. The 45ML-5401 operates from -20 to 60°C, while the -T model extends the range to -40 to 75°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
