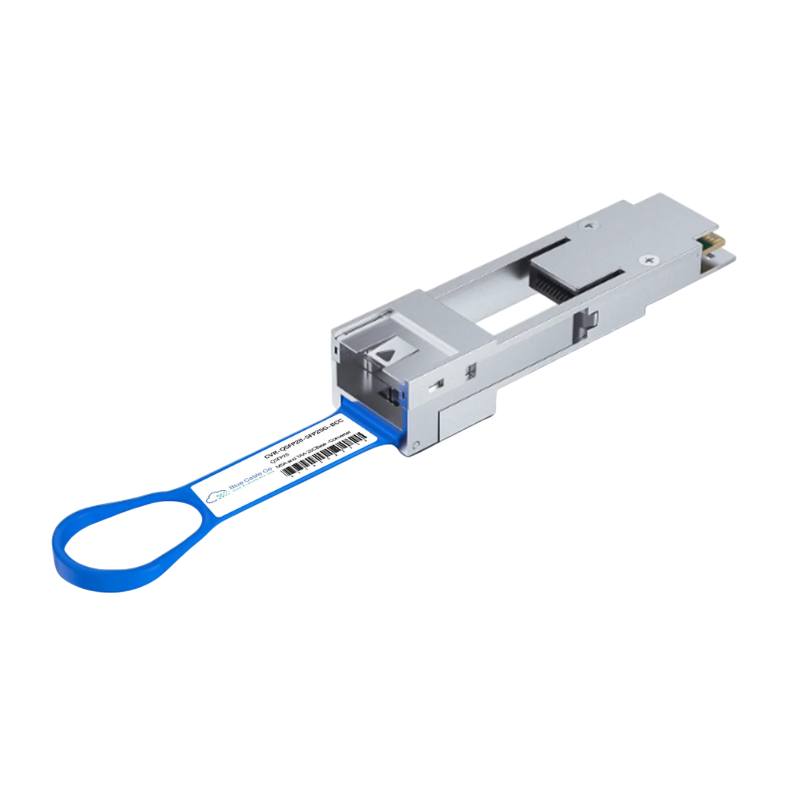

• Silver metallic sfp plus transceiver module with blue plastic handle and label for nvidia mellanox qsfp28 adapter
1 1

Blue Cable Co

MAM1Q00A-QSA28-BCC | NVIDIA Mellanox Compatible QSFP28 to SFP28 Adapter

MAM1Q00A-QSA28-BCC | NVIDIA Mellanox Compatible QSFP28 to SFP28 Adapter

MAM1Q00A-QSA28-BCC

Stock Status: Enquire

$148.50 AUD
$148.50 AUD
$148.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The MAM1Q00A-QSA28-BCC is a Blue Cable Co QSFP28 to SFP28 adapter, compatible with NVIDIA Mellanox platforms. It enables an SFP28, SFP+, or SFP transceiver to be installed directly into a QSFP28 port, providing a cost-effective solution for connecting 25GbE, 10GbE, or 1GbE SFP-form-factor equipment to switches and NICs with QSFP28 ports. The adapter uses lane 1 of the QSFP28 connector and is plug-and-play with all major SFP28 transceivers, AOC, and DAC cables. Backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

  • Plug-and-play QSFP28 to SFP28 adapter — accepts SFP28, SFP+, or SFP transceivers, AOC, and DAC cables
  • Enables 25GbE SFP28, 10GbE SFP+, or 1GbE SFP connectivity on QSFP28 ports of Mellanox switches and NICs
  • Uses lane 1 of the QSFP28 connector — single lane, not a 4x25G breakout
  • SFF-8636 compliant I2C management interface — passes SFP transceiver identity to the host
  • Built-in EEPROM for product identification
  • Low insertion loss with matched impedance design
  • Secure latching mechanism for reliable retention in the QSFP28 cage
  • Compliant with QSFP28 MSA SFF-8665 and SFP28 MSA SFF-8402
  • Operating case temperature range: 0°C to +70°C
  • Maximum power consumption: 0.1W
  • RoHS compliant

Features

- NVIDIA Mellanox compatible QSFP28 to SFP28 adapter
- Plug-and-play — accepts SFP28, SFP+, or SFP transceivers, AOC, and DAC cables
- Enables 25GbE SFP28, 10GbE SFP+, or 1GbE SFP connectivity on QSFP28 ports
- Single-lane design using lane 1 of QSFP28 — not a 4x25G breakout
- SFF-8636 I2C management interface passes SFP transceiver identity to the host
- Built-in EEPROM for product identification
- Low insertion loss, matched impedance, secure latching mechanism
- QSFP28 MSA SFF-8665 and SFP28 MSA SFF-8402 compliant
- RoHS compliant, 0.1W maximum power consumption

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: MAM1Q00A-QSA28-BCC
Reference SKU: MAM1Q00A-QSA28
Compatibility: NVIDIA Mellanox compatible
Product Type: QSFP28 to SFP28 Adapter
Host Port: QSFP28
Accepts: SFP28 (25GbE), SFP+ (10GbE), or SFP (1GbE) transceivers, AOC, and DAC cables
Lane Usage: Lane 1 of QSFP28 connector (single lane)
Compliance: SFF-8665 (QSFP28 MSA), SFF-8402 (SFP28 MSA), SFF-8636, RoHS
Operating Case Temperature: 0°C to +70°C
Storage Temperature: -40°C to +85°C
Power Consumption: 0.1W maximum
Stock Location: Sydney, Australia
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)

Alternate Part Codes

CVR-QSFP28-SFP25G=, CVR-QSFP28-SFP25G-RF

FAQs

Q1: Which NVIDIA Mellanox platforms is the MAM1Q00A-QSA28-BCC compatible with?
A1: The MAM1Q00A-QSA28-BCC is compatible with NVIDIA Mellanox switches and NICs that have QSFP28 ports, allowing an SFP28, SFP+, or SFP transceiver to be installed in place of a QSFP28 module. It is designed as a compatible replacement for the OEM MAM1Q00A-QSA28. Contact our team to confirm fit for your specific platform before ordering.

Q2: What transceivers and cables can I plug into this adapter?
A2: The MAM1Q00A-QSA28-BCC accepts SFP28 transceivers (25GbE), SFP+ transceivers (10GbE), SFP transceivers (1GbE), SFP28 AOC, and SFP28 DAC cables that conform to the SFP MSA standard. It is vendor-agnostic and interoperates with all major optical module and direct attach copper cable vendors.

Q3: Does this adapter support 4x25G breakout — can I get four 25G ports from one QSFP28 port?
A3: No. The MAM1Q00A-QSA28-BCC uses only lane 1 of the QSFP28 connector, providing a single 25GbE, 10GbE, or 1GbE connection per QSFP28 port. For 4x25G breakout, a dedicated QSFP28 breakout cable or module is required.

Q4: How does the host identify the SFP28 transceiver inserted into this adapter?
A4: The adapter includes both a built-in EEPROM for its own product identification and an SFF-8636 compliant I2C management interface that provides a direct path to the inserted SFP transceiver's memory. The host system can read the transceiver's vendor information and diagnostic data as it would from a directly installed module.

Q5: Can this adapter connect a Mellanox 100GbE QSFP28 switch port to a 25GbE SFP28 server NIC?
A5: Yes, that is a primary use case. Install the MAM1Q00A-QSA28-BCC into the QSFP28 port of a Mellanox switch, then connect an SFP28 DAC cable or transceiver to the adapter's SFP28 receptacle for direct connectivity to a 25GbE SFP28 NIC port — without replacing either device.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers
