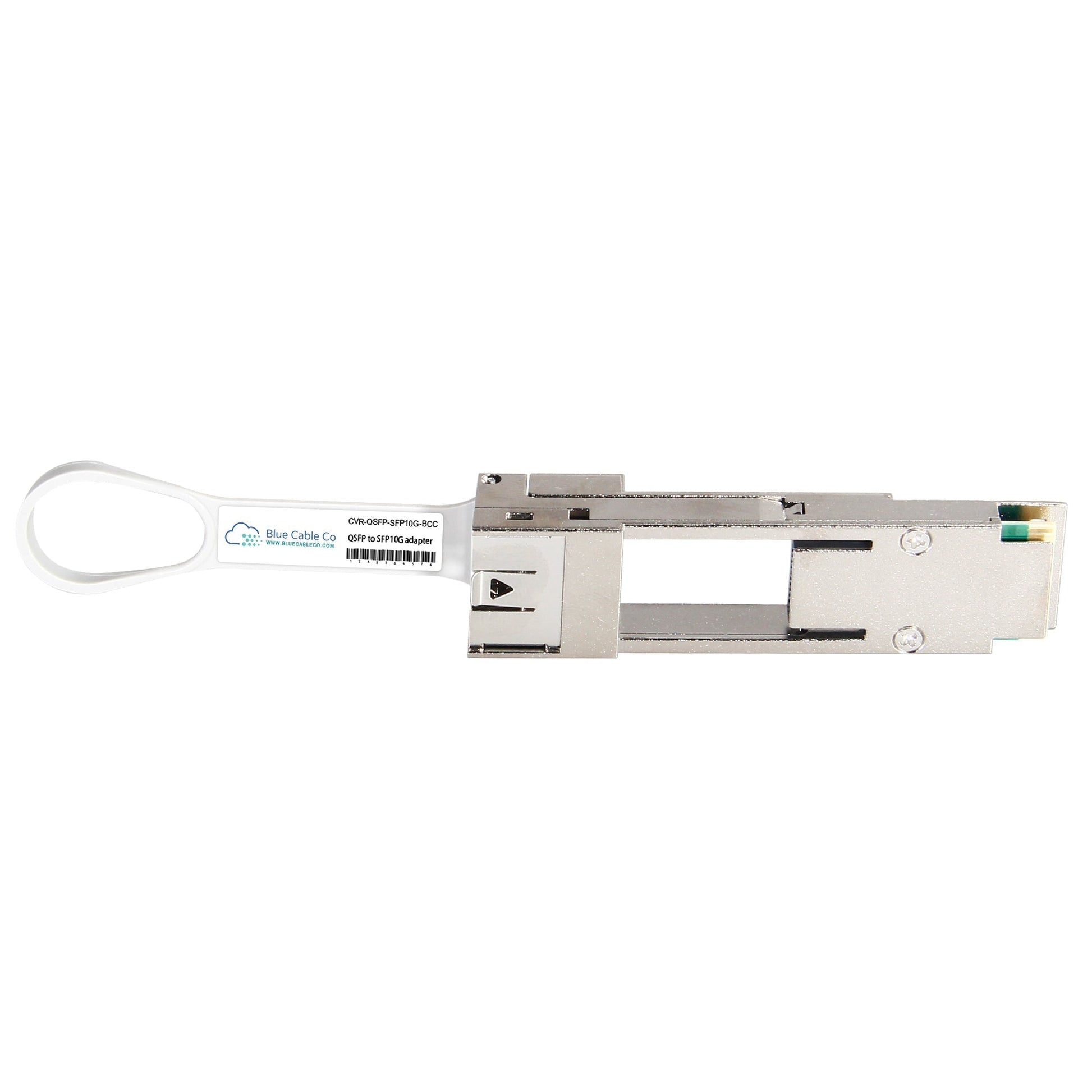

MAM1Q00A-QSA-BCC | NVIDIA Mellanox Compatible 40GB QSFP+ to SFP+ Adapter

MAM1Q00A-QSA-BCC | NVIDIA Mellanox Compatible 40GB QSFP+ to SFP+ Adapter

MAM1Q00A-QSA-BCC

Stock Status: Enquire

$258.50 AUD
$258.50 AUD
$258.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The MAM1Q00A-QSA-BCC is a Blue Cable Co QSFP+ to SFP+ adapter, compatible with NVIDIA Mellanox platforms. It enables an SFP+ or SFP transceiver to be installed directly into a QSFP+ port, providing a cost-effective solution for connecting 10GbE SFP+ or 1GbE SFP equipment to switches and NICs with QSFP+ ports. The adapter uses lane 1 of the QSFP+ connector and is plug-and-play with all major SFP+ transceivers, AOC, and DAC cables. Backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

  • Plug-and-play QSFP+ to SFP+ adapter — accepts any SFP+ or SFP transceiver, AOC, or DAC
  • Enables 10GbE SFP+ or 1GbE SFP connectivity on QSFP+ ports of Mellanox switches and NICs
  • Uses lane 1 of the QSFP+ connector — single lane, not a 4x10G breakout
  • SFF-8636 compliant I2C management interface — passes through SFP transceiver identity to the host
  • Low insertion loss with matched impedance design
  • Secure latching mechanism for reliable retention in the QSFP+ cage
  • Compliant with QSFP+ MSA SFF-8436 and SFP+ MSA SFF-8418/8419
  • Operating case temperature range: 0°C to +70°C
  • Maximum power consumption: 0.1W
  • RoHS compliant

Features

- NVIDIA Mellanox compatible QSFP+ to SFP+ adapter
- Plug-and-play — accepts any SFP+ or SFP transceiver, AOC, or DAC cable
- Enables 10GbE SFP+ or 1GbE SFP connectivity on QSFP+ switch and NIC ports
- Single-lane design using lane 1 of QSFP+ — not a 4x10G breakout
- SFF-8636 I2C management interface passes SFP transceiver identity to the host
- Low insertion loss, matched impedance, secure latching mechanism
- QSFP+ MSA SFF-8436 and SFP+ MSA SFF-8418/8419 compliant
- RoHS compliant, 0.1W maximum power consumption

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: MAM1Q00A-QSA-BCC
Reference SKU: MAM1Q00A-QSA
Compatibility: NVIDIA Mellanox compatible
Product Type: QSFP+ to SFP+ Adapter
Host Port: QSFP+
Accepts: SFP+ (10GbE) or SFP (1GbE) transceivers, AOC, and DAC cables
Lane Usage: Lane 1 of QSFP+ connector (single lane)
Compliance: SFF-8436 (QSFP+ MSA), SFF-8418/8419 (SFP+ MSA), SFF-8636, RoHS
Operating Case Temperature: 0°C to +70°C
Storage Temperature: -40°C to +85°C
Power Consumption: 0.1W maximum
Stock Location: Sydney, Australia
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)

FAQs

Q1: Which NVIDIA Mellanox platforms is the MAM1Q00A-QSA-BCC compatible with?
A1: The MAM1Q00A-QSA-BCC is compatible with NVIDIA Mellanox switches and NICs that have QSFP+ ports, allowing an SFP+ or SFP transceiver to be installed in place of a QSFP+ module. It is designed as a compatible replacement for the OEM MAM1Q00A-QSA. Contact our team to confirm fit for your specific platform before ordering.

Q2: What transceivers and cables can I plug into this adapter?
A2: The MAM1Q00A-QSA-BCC accepts any SFP+ transceiver (10GbE), SFP transceiver (1GbE), SFP+ AOC, or SFP+ DAC cable that conforms to the SFP MSA standard. It is vendor-agnostic and interoperates with all major optical module and direct attach copper cable vendors.

Q3: Does this adapter support 4x10G breakout — can I get four 10G ports from one QSFP+ port?
A3: No. The MAM1Q00A-QSA-BCC uses only lane 1 of the QSFP+ connector. It provides a single 10GbE or 1GbE connection on one QSFP+ port. For 4x10G breakout, a dedicated QSFP+ breakout cable or module is required.

Q4: Will the host switch or NIC be able to identify the SFP+ transceiver inserted into this adapter?
A4: Yes. The adapter includes an SFF-8636 compliant I2C management interface that provides a direct path to the SFP transceiver's memory, allowing the host system to read the transceiver's identity, vendor information, and diagnostic data as normal.

Q5: Can this adapter be used to connect a Mellanox switch QSFP+ port to a server NIC with an SFP+ port?
A5: Yes, that is a primary use case. The MAM1Q00A-QSA-BCC installs into the QSFP+ port of a Mellanox switch or NIC and accepts an SFP+ DAC cable or transceiver on the other end, enabling direct connectivity between QSFP+ and SFP+ infrastructure without replacing hardware.
