Juniper SRX345-SYS-JE-DC | SRX345 Services Gateway Firewall, 16GE, 4x MPIM, DC PSU

Name: Juniper SRX345-SYS-JE-DC | SRX345 Services Gateway Firewall, 16GE, 4x MPIM, DC PSU
Brand: Juniper
SKU: SRX345-SYS-JE-DC
Price: 8012.86 AUD
Availability: BackOrder

Authorised Juniper Partner

SKU:SRX345-SYS-JE-DC

Stock Status: Enquire

$8,012.86 inc. GST

$7,284.42 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

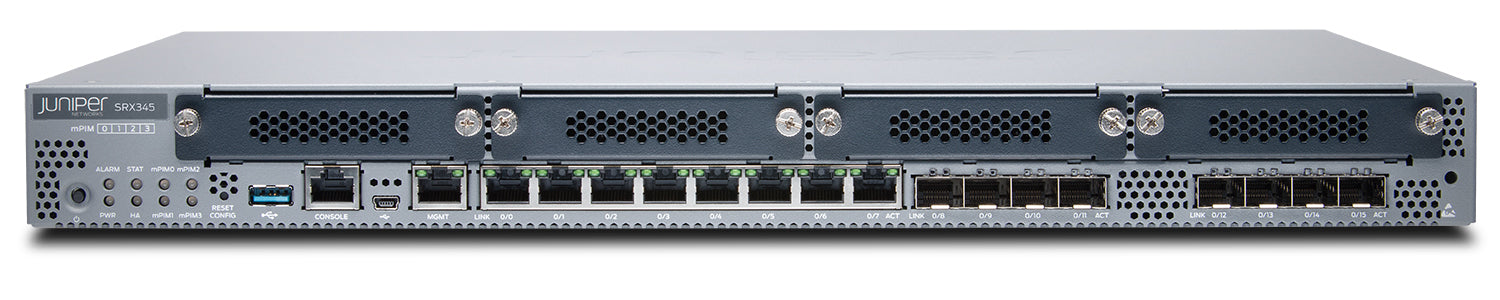

The SRX345 services gateway is a 1U branch-office firewall and router that combines next-generation firewall security, SD-WAN, routing and WAN connectivity on Junos OS. This SRX345-SYS-JE-DC model includes 16 onboard 1GbE ports (8 x RJ-45 and 8 x SFP), 4 Mini-PIM slots for modular WAN connectivity, 4GB RAM, 8GB flash and a single internal DC power supply, with the Enhanced (JE) software feature set.

The DC power supply accepts -40.8 to -72 VDC, suiting telecom and remote-site racks that run on DC power. It delivers up to 5 Gbps stateful firewall throughput, 800 Mbps IPsec VPN and 300 Mbps next-generation firewall performance. It supports stateful high availability with dual-box clustering, MPLS and L2/L3 VPN routing, and management through the Junos CLI and Web UI, Junos Space and Security Director, with Zero-Touch Provisioning.

Features

- Next-generation firewall with application visibility and control
- Site-to-site, hub-and-spoke, AutoVPN, ADVPN and Group VPN, plus Juniper Secure Connect remote access
- Enhanced SD-WAN with application-based policy routing and AppQoE
- Advanced security services (IPS, antivirus, antispam, URL filtering, ATP, SecIntel) available as subscription licences
- MPLS, L2/L3 VPN and VPLS routing services
- Stateful high availability with dual-box clustering, active/active and active/passive
- Management through the Junos CLI and Web UI, Junos Space and Security Director, with Zero-Touch Provisioning
- Four Mini-PIM slots for modular WAN connectivity

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x 1GbE onboard ports (8 x RJ-45, 8 x SFP)
- 4 x Mini-PIM (MPIM) WAN slots
- 4GB RAM, 8GB flash storage
- Single internal DC PSU, -40.8 to -72 VDC input
- 1U rack-mount form factor
- Stateful firewall throughput up to 5 Gbps (1,518 B packets)
- IPsec VPN throughput up to 800 Mbps (1,400 B packets)
- Next-generation firewall throughput up to 300 Mbps
- 1 x 1GbE out-of-band management port, RJ-45 and miniUSB console, 1 x USB 3.0 port
- Average power consumption 122 W, front-to-back airflow
- Dimensions 44.09 x 4.36 x 37.01 cm, weight 4.9 kg

FAQs

Q: What power input does the SRX345-SYS-JE-DC use?
A: It has a single internal DC power supply with a -40.8 to -72 VDC input and a maximum current draw of 6 A at -48 VDC.

Q: How many ports does the SRX345 have onboard?
A: It provides 16 x 1GbE onboard ports, made up of 8 RJ-45 and 8 SFP ports, plus a dedicated 1GbE out-of-band management port and a console port.

Q: Can the WAN connectivity be expanded?
A: Yes. The four Mini-PIM (MPIM) slots accept Juniper Mini-PIM modules for modular WAN connectivity.

Q: Does this model include PoE?
A: No. This model has no PoE+ ports.

Q: Are advanced security services included?
A: This SKU carries the Enhanced (JE) software feature set. Advanced services such as IPS, antivirus, URL filtering, ATP and SecIntel are available as separate subscription licences.

Q: Does it support high availability?
A: Yes. It supports stateful high availability with dual-box clustering in active/active and active/passive modes.
