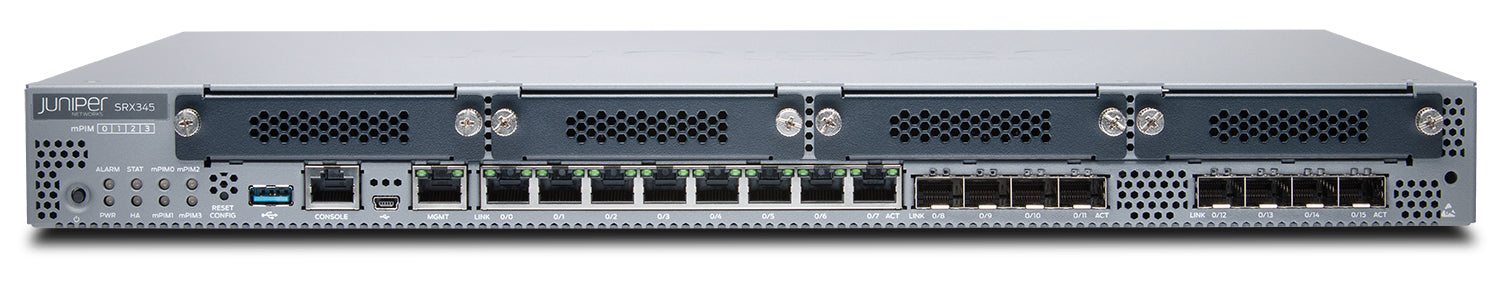

Juniper SRX345-SYS-JB-T | SRX345 Services Gateway Firewall, 16GE, TAA, Single AC PSU

Authorised Juniper Partner

SKU:SRX345-SYS-JB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper SRX345-SYS-JB-T is a TAA compliant SRX345 services gateway firewall for midsize to large distributed enterprise branches, consolidating security, routing, switching and WAN connectivity in a 1U chassis. It provides 16 x 1GbE onboard ports (8 x RJ-45 and 8 x SFP), four Mini-PIM WAN slots, 4 GB RAM and 8 GB flash, with firewall throughput up to 5 Gbps and 375,000 concurrent sessions. This SKU ships with a single internal AC power supply and the Junos Software Base.

The SRX345 supports stateful and zone-based firewalling, site-to-site IPsec VPN, AutoVPN, ADVPN and SD-WAN with application-based policy routing. Advanced security services such as IPS, antivirus, URL filtering and Advanced Threat Prevention are available through subscription licences. Supported Mini-PIMs include T1/E1, VDSL2, 4G/LTE and 802.11ac Wave 2 Wi-Fi, and the platform can be managed through Junos CLI, Junos Space, Security Director and Mist AI.

Features

- Junos Software Base with firewall, NAT, IPsec, routing, MPLS and switching
- Stateful and zone-based firewall with DDoS protection and user role-based firewall
- Site-to-site, AutoVPN, ADVPN and Group VPN, plus Juniper Secure Connect remote access and SSL VPN
- Advanced security services (IPS, antivirus, antispam, URL filtering, Advanced Threat Prevention) via subscription licences
- SD-WAN with application-based policy routing and AppQoE
- High availability with dual-box clustering, active/active and active/passive
- Management via Junos CLI and Web UI, Junos Space, Security Director, Mist AI and Zero-Touch Provisioning
- Supports T1/E1, VDSL2, 4G/LTE and 802.11ac Wave 2 Wi-Fi Mini-PIMs

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x 1GbE onboard ports (8 x RJ-45 and 8 x SFP)
- 4 x Mini-PIM (MPIM) WAN slots
- 4 GB RAM and 8 GB flash storage
- Stateful firewall throughput up to 5 Gbps (1,518 B packets)
- IPsec VPN throughput 800 Mbps (1,400 B packets)
- 375,000 maximum concurrent sessions
- 15,000 connections per second
- 2,048 IPsec VPN tunnels
- 1U rack-mount form factor
- Single internal AC power supply
- Average power consumption 122 W
- 1 x out-of-band management port, 1 x console port, 1 x USB 3.0 port
- TAA compliant, includes Junos Software Base

FAQs

Q: What does the -T suffix mean on the SRX345-SYS-JB-T?
A: The -T indicates the TAA compliant version of the SRX345-SYS-JB bundle, suitable for procurement requirements that mandate Trade Agreements Act compliance.

Q: What is included with this SKU?
A: This bundle includes the SRX345 hardware with a single AC power supply, cable and rack-mount kit, and the Junos Software Base.

Q: Does the SRX345 have a redundant power supply?
A: Redundant power is only available on the dual AC model. This SKU has a single internal AC power supply.

Q: Can I add WAN or LTE connectivity?
A: Yes. The four Mini-PIM slots support T1/E1, VDSL2, 4G/LTE and 802.11ac Wave 2 Wi-Fi modules.

Q: Are IPS and advanced threat protection included?
A: No. The Junos Software Base covers firewall, NAT, IPsec, routing, MPLS and switching. IPS, antivirus, URL filtering and Advanced Threat Prevention require separate subscription licences.

Q: Does this model support PoE?
A: No. The SRX345 has no PoE or PoE+ ports, so powered devices need a separate PoE switch or injector.
