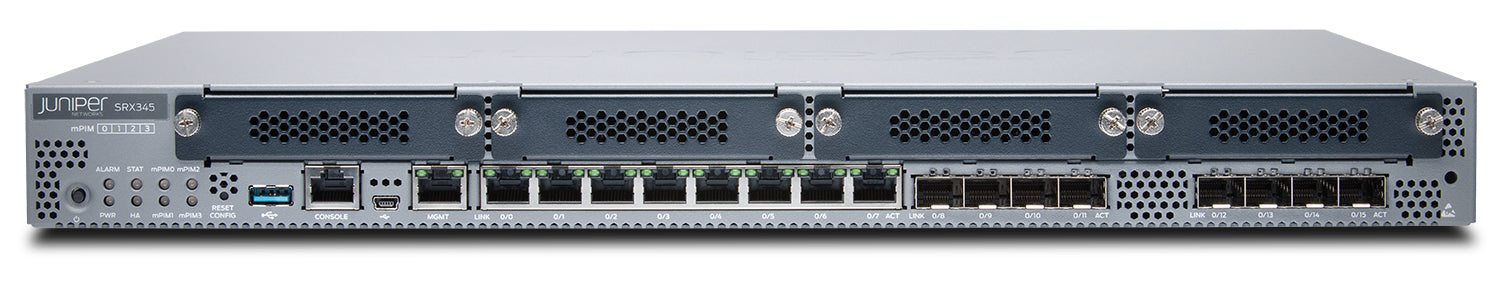

Juniper SRX345-SYS-JB-DC-T | SRX345 Services Gateway Firewall, 16GE, 4x MPIM, DC PSU

Authorised Juniper Partner

SKU:SRX345-SYS-JB-DC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The SRX345 services gateway is a 1U branch-office firewall and router combining next-generation security, routing, switching and secure SD-WAN in one platform. This single DC power supply configuration provides 16 x 1GbE onboard ports (8 x RJ-45 and 8 x SFP), four Mini-PIM WAN slots, 4 GB RAM and 8 GB storage, and ships with Junos Software Base.

The SRX345 delivers stateful firewall throughput up to 5 Gbps, IPsec VPN up to 800 Mbps and 375,000 concurrent sessions. The DC input (-40.8 to -72 VDC) suits telecom and data room deployments, and the four MPIM slots accept T1/E1, VDSL2, serial, 4G/LTE and 802.11ac Wave 2 Wi-Fi modules. Optional subscription licences add AppSecure, IPS, URL filtering and advanced threat protection.

Features

- Next-generation secure SD-WAN and security in a single branch platform
- Junos Software Base included (firewall, NAT, IPsec, routing, MPLS and switching)
- Four Mini-PIM slots supporting T1/E1, VDSL2, serial, 4G/LTE and 802.11ac Wave 2 Wi-Fi modules
- MACsec-capable 1GbE ports for Layer 2 encryption
- Optional subscription licences for AppSecure, IPS, URL filtering and advanced threat protection
- FIPS 140-2 Level 2 and Common Criteria certifications (Junos 15.1X49-D60)
- Includes cable and rack mount kit

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x 1GbE onboard ports (8 x RJ-45 and 8 x SFP), all MACsec-capable
- 4 x Mini-PIM (MPIM) WAN slots
- 1 x 1GbE out-of-band management port
- Console (RJ-45 and miniUSB) and 1 x USB 3.0 Type A port
- 4 GB RAM, 8 GB storage, 1 SSD slot
- Single internal DC power supply, -40.8 to -72 VDC input
- Average power consumption 122 W, maximum 6 A at -48 VDC
- 1U form factor, 17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm)
- Weight 10.80 lb (4.90 kg)
- Front-to-back airflow, 45.5 dBA acoustic noise
- Stateful firewall: 5,000 Mbps (1,518 B), 1,700 Mbps (IMIX)
- IPsec VPN: 800 Mbps (1,400 B), 300 Mbps (IMIX)
- Next-generation firewall 300 Mbps, recommended IPS 600 Mbps
- 375,000 maximum concurrent sessions, 15,000 connections per second
- 2,048 IPsec VPN tunnels, 250 remote access/SSL VPN users
- Operating temperature 0 to 40 C, MTBF 27.4 years

FAQs

Q: What power input does this SRX345 model use?
A: This SKU has a single internal DC power supply with an input range of -40.8 to -72 VDC and a maximum current draw of 6 A at -48 VDC.

Q: What WAN modules can be fitted to the four MPIM slots?
A: The Mini-PIM slots support T1/E1, VDSL2, serial, 4G/LTE and 802.11ac Wave 2 Wi-Fi modules.

Q: What software is included?
A: It ships with Junos Software Base, covering firewall, NAT, IPsec, routing, MPLS and switching. AppSecure, IPS, URL filtering and advanced threat protection are optional subscription licences.

Q: How many onboard ports does it have and what type are they?
A: There are 16 x 1GbE ports: 8 x RJ-45 and 8 x SFP. All 16 are MACsec-capable, plus a separate 1GbE out-of-band management port.

Q: Does the SRX345 support PoE?
A: No. The SRX345 has no PoE+ ports, so powered devices need a separate PoE switch or injector.

Q: What firewall and VPN throughput can I expect?
A: Stateful firewall throughput is up to 5 Gbps with 1,518 byte packets, IPsec VPN is up to 800 Mbps with 1,400 byte packets, and next-generation firewall throughput is 300 Mbps.
