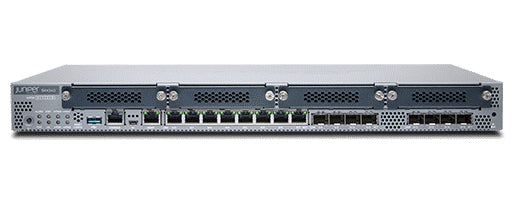

Juniper SRX340-SYS-JB | SRX340 1U Firewall, 4x MPIM, 4.7 Gbps, AC, 16x GbE

Name: Juniper SRX340-SYS-JB | SRX340 1U Firewall, 4x MPIM, 4.7 Gbps, AC, 16x GbE
Brand: Juniper
SKU: SRX340-SYS-JB
Price: 3056.59 AUD
Availability: InStock

Authorised Juniper Partner

SKU:SRX340-SYS-JB

In stock:7

$3,056.59 inc. GST

$2,778.72 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Juniper SRX340-SYS-JB is a 1U branch-office firewall and services gateway that combines stateful firewall, NAT, IPsec VPN, routing, MPLS and switching in a single platform. It delivers 4.7 Gbps of stateful firewall throughput and 600 Mbps of IPsec VPN throughput, with 16x 1GbE onboard ports (8x RJ-45 and 8x SFP), 4x MPIM WAN slots, 4GB RAM, 8GB flash and an internal AC power supply, and it ships with Junos Software Base.

The four Mini-PIM slots allow modular WAN connectivity such as T1/E1, VDSL2, 4G/LTE and 802.11ac Wave 2 Wi-Fi, so one chassis can adapt to different branch circuits. All 16 onboard ports are MACsec-capable, and the platform supports up to 256,000 concurrent sessions, 64 security zones and 64 virtual routers. Supported routing protocols include OSPF, BGP, IS-IS, MPLS, L2/L3 VPN and VPLS.

Features

- Consolidates firewall, routing, switching and WAN connectivity in a single 1U platform
- Junos Software Base includes firewall, NAT, IPsec VPN, routing, MPLS and switching
- Modular WAN connectivity through MPIMs (T1/E1, VDSL2, 4G/LTE, 802.11ac Wave 2 Wi-Fi)
- MACsec-capable on all 16 onboard 1GbE ports
- Zone-based and user role-based stateful firewall with DDoS protection and SSL forward-proxy inspection
- Site-to-site, AutoVPN, ADVPN and Group VPN, plus Juniper Secure Connect remote access VPN
- Advanced routing with OSPF, BGP, IS-IS, MPLS, L2/L3 VPN and VPLS

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x 1GbE onboard ports (8 x RJ-45 and 8 x SFP)
- 4 x Mini-PIM (MPIM) WAN slots
- 1 x 1GbE out-of-band management port
- Console port (RJ-45 and miniUSB) and 1 x USB 3.0 Type A port
- 4.7 Gbps stateful firewall throughput (1,518 B packets)
- 1.1 Gbps stateful firewall throughput (IMIX)
- 600 Mbps IPsec VPN throughput (1,400 B packets)
- 3,000 Mbps routing throughput (1,518 B packets)
- Next-generation firewall throughput: 280 Mbps
- Recommended IPS throughput: 400 Mbps
- 256,000 maximum concurrent sessions
- 10,000 connections per second
- 2,000 maximum security policies
- 64 security zones and 64 virtual routers
- 4 GB RAM and 8 GB flash storage
- 1U rack-mount form factor, 44.09 x 4.36 x 37.01 cm (WxHxD)
- Internal AC power supply (non-redundant), 122 W average power consumption
- Weight: 4.90 kg including power supply
- Operating temperature 0 to 40 C, front to back airflow
- FIPS 140-2 Level 2 and Common Criteria certified (Junos 15.1X49-D60)

FAQs

Q: What is included with the SRX340-SYS-JB?
A: It includes the SRX340 hardware with 16x GbE ports, 4x MPIM slots, 4GB RAM, 8GB flash, an AC power supply, cable and rack-mount kit, plus Junos Software Base.

Q: What WAN interfaces can be added to the SRX340?
A: The four Mini-PIM slots accept modules for T1/E1, VDSL2, 4G/LTE and 802.11ac Wave 2 Wi-Fi connectivity.

Q: Does the SRX340 support PoE?
A: No. The SRX340 has no PoE+ ports, so powered devices need a separate PoE switch or injector.

Q: What throughput can I expect from this firewall?
A: Stateful firewall throughput is 4.7 Gbps with 1,518 B packets and 1.1 Gbps with IMIX traffic, while IPsec VPN throughput is 600 Mbps with 1,400 B packets.

Q: Does it have a redundant power supply?
A: No. This model has a single internal AC power supply and no redundant PSU option.

Q: Which onboard ports support MACsec?
A: All 16 onboard 1GbE ports (8x RJ-45 and 8x SFP) are MACsec-capable.
