Juniper SRX340 | Firewall, 16GE (8x SFP), 4x MPIM, Hardware Only

Name: Juniper SRX340 | Firewall, 16GE (8x SFP), 4x MPIM, Hardware Only
Brand: Juniper
SKU: SRX340
Price: 4025.52 AUD
Availability: BackOrder

Authorised Juniper Partner

SKU:SRX340

Stock Status: Enquire

$4,025.52 inc. GST

$3,659.56 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

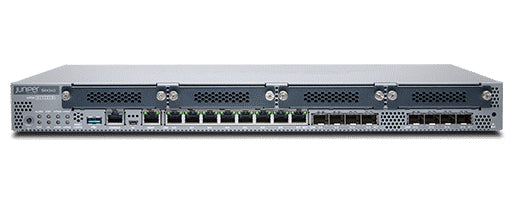

The SRX340 is a 1U branch firewall and services gateway with 16 Gigabit Ethernet ports (8x RJ45 and 8x SFP) and four Mini-PIM slots for WAN expansion. It combines next-generation firewall security, routing, switching and WAN connectivity in a single Junos OS platform, making it well suited to midsize distributed enterprises and branch offices. This is the hardware-only SKU without a Junos software bundle, and it requires SRX340-SYS-JB or SRX340-SYS-JE to complete the system.

With 4 GB DRAM, 8 GB flash, up to 4.7 Gbps firewall throughput and support for 256,000 concurrent sessions and 1024 IPsec VPN tunnels, the SRX340 handles demanding branch workloads. Optional Mini-PIM modules add T1/E1, ADSL2/2+, VDSL2 and 3G/4G LTE connectivity, while an optional 802.11ac Wave 2 Wi-Fi module is also available.

Features

- Next-generation firewall features: intrusion prevention, application visibility and control, anti-virus, anti-spam and enhanced Web filtering
- Advanced Threat Prevention: dynamic malware detection, SecIntel threat feeds, Encrypted Traffic Insights, Adaptive Threat Profiling
- Modular WAN options via Mini-PIM: T1/E1, ADSL2/2+, VDSL2, 3G/4G LTE
- Optional 802.11ac Wave 2 Wi-Fi module
- MACsec support on built-in ports
- Supports IPsec VPN, high availability, QoS and MPLS
- Consolidates security, routing, switching and WAN in a single platform

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x 1GbE RJ-45 ports plus 8 x 1GbE SFP ports (16GE total)
- 4 x Mini-PIM (MPIM) slots for WAN modules
- 4 GB DRAM
- 8 GB flash
- 1 x out-of-band management port (RJ-45)
- 1 x console port (RJ-45) plus 1 x mini-USB console
- 1 x USB 3.0 Type-A port
- Firewall throughput up to 4.7 Gbps (1518B)
- IPS performance 400 Mbps
- VPN performance 733 Mbps
- 256,000 maximum concurrent sessions
- 1024 IPsec VPN tunnels
- 1U rack form factor, 4.9 kg
- Runs Junos OS
- Hardware only, requires SRX340-SYS-JB or SRX340-SYS-JE to complete the system

FAQs

Q: Is the SRX340 a complete system out of the box?
A: No. This is the hardware-only SKU. It requires either SRX340-SYS-JB or SRX340-SYS-JE to complete the system.

Q: What ports does the SRX340 provide?
A: It has 16 Gigabit Ethernet ports: 8 x RJ-45 and 8 x SFP. It also has an out-of-band management port, RJ-45 and mini-USB console ports, and a USB 3.0 Type-A port.

Q: Can I add WAN connectivity to the SRX340?
A: Yes. The four Mini-PIM slots accept modules for T1/E1, ADSL2/2+, VDSL2 and 3G/4G LTE connectivity.

Q: How much memory and storage does the SRX340 have?
A: It includes 4 GB DRAM and 8 GB flash.

Q: What performance can I expect from the SRX340?
A: Firewall throughput is up to 4.7 Gbps, IPS performance is 400 Mbps and VPN performance is 733 Mbps. It supports up to 256,000 concurrent sessions and 1024 IPsec VPN tunnels.

Q: Does the SRX340 support Wi-Fi?
A: Yes, through an optional 802.11ac Wave 2 Wi-Fi module.
