Juniper SRX320-SYS-JE | SRX320 Services Gateway Firewall, 8GE, 2x MPIM, JE

Name: Juniper SRX320-SYS-JE | SRX320 Services Gateway Firewall, 8GE, 2x MPIM, JE
Brand: Juniper
SKU: SRX320-SYS-JE
Price: 3065.59 AUD
Availability: BackOrder

Authorised Juniper Partner

SKU:SRX320-SYS-JE

Stock Status: Enquire

$3,065.59 inc. GST

$2,786.90 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

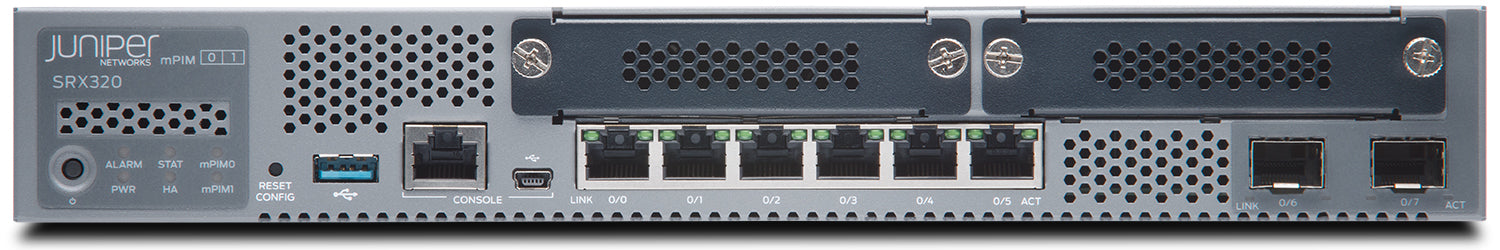

The Juniper SRX320 services gateway is a compact desktop secure SD-WAN and firewall appliance for branch offices, built around 8x Gigabit Ethernet ports (6x RJ-45 and 2x SFP) and 2x Mini-PIM WAN slots. This SRX320-SYS-JE non-PoE model includes 4GB RAM, 8GB storage and the Junos Enhanced (JE) software tier, delivering up to 1.9 Gbps stateful firewall throughput and 300 Mbps IPsec VPN.

Running Junos OS, the SRX320 consolidates routing, stateful firewall, NAT, IPsec VPN and switching in one low-power unit. Optional threat defence services such as IPS, antivirus, antispam and URL filtering can be added, and the Mini-PIM slots allow modular WAN connectivity to suit each site.

Features

- Junos OS with firewall, NAT, IPsec VPN, routing, MPLS and switching
- Secure SD-WAN capabilities including application-based advanced policy-based routing and AppQoE
- Optional threat defence and intelligence services: IPS, antivirus, antispam and URL filtering
- Modular WAN connectivity through 2x Mini-PIM slots
- MACsec-capable ports for Layer 2 encryption
- Compact desktop form factor suited to branch offices

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8x 1GbE onboard ports (6x RJ-45 and 2x SFP)
- 2x Mini-PIM (WAN) slots
- 4GB RAM, 8GB storage
- Stateful firewall throughput: 1.9 Gbps (1,518 B), 500 Mbps IMIX
- IPsec VPN throughput: 300 Mbps (1,400 B packets)
- Maximum concurrent sessions: 64,000
- Connections per second: 5,000
- IPsec VPN tunnels: 256
- MACsec-capable ports: 2x 1GbE
- Console port (RJ-45 and miniUSB), 1x USB 3.0 Type A
- Desktop form factor with external AC power supply
- Non-PoE model, average power consumption 46 W, 37 dBA noise level
- Dimensions (WxHxD): 29.99 x 4.39 x 19.10 cm, weight 1.51 kg

FAQs

Q: What does the JE in SRX320-SYS-JE mean?
A: JE denotes the Junos Enhanced software tier that ships with this system, which is the non-PoE SRX320 with 8GE, 2x Mini-PIM slots, 4GB RAM and 8GB storage.

Q: Does the SRX320-SYS-JE support Power over Ethernet?
A: No. This is the non-PoE model, with an external AC power supply and an average power consumption of 46 W.

Q: What WAN options are available on the SRX320?
A: The two Mini-PIM slots accept optional WAN modules such as T1/E1 and VDSL2, allowing connectivity to be tailored to each branch.

Q: What firewall and VPN performance does it deliver?
A: It provides up to 1.9 Gbps stateful firewall throughput with 1,518 byte packets, 500 Mbps at IMIX, and 300 Mbps IPsec VPN throughput with 1,400 byte packets.

Q: How many sessions and VPN tunnels does it support?
A: The SRX320 supports up to 64,000 concurrent sessions, 5,000 connections per second and 256 IPsec VPN tunnels.

Q: Can IPS, antivirus and URL filtering be added?
A: Yes. Optional threat defence and intelligence services including IPS, antivirus, antispam and URL filtering are available as add-ons.
