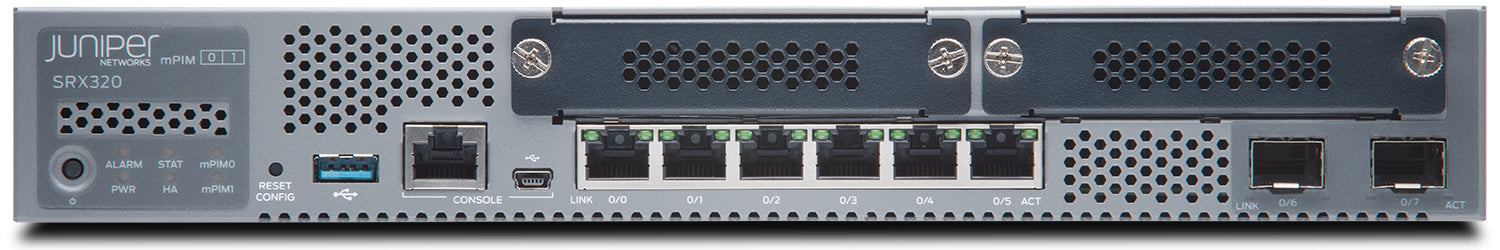

• Juniper SRX320 services gateway with 8 GE ports, perforated casing
1 1

Juniper

Juniper SRX320-SYS-JB-T | SRX320 Services Gateway Firewall, 8GE, 4GB RAM, 8GB Flash

Juniper SRX320-SYS-JB-T | SRX320 Services Gateway Firewall, 8GE, 4GB RAM, 8GB Flash

Authorised Juniper Partner

SRX320-SYS-JB-T

Stock Status: Enquire

$5,175.42 inc. GST
$4,704.93 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper SRX320 services gateway is a compact desktop branch-office firewall that combines security, routing, switching and WAN connectivity in a single device. This SRX320-SYS-JB-T configuration provides 8GE ports (6 x RJ-45 and 2 x SFP), 4GB RAM and 8GB flash, with an external AC power adapter included. It delivers up to 1 Gbps firewall throughput and up to 300 Mbps IPsec VPN throughput on Junos OS.

Two Mini-PIM slots allow WAN expansion with T1/E1, VDSL2, serial, 4G/LTE or 802.11ac Wave 2 Wi-Fi modules. Application security services include IPS, application-aware security, user role-based firewall controls and antivirus and anti-spam, making it a practical fit for branch offices and remote sites that need consolidated protection and secure SD-WAN capability.

Features

- Consolidates security, routing, switching and WAN connectivity in one compact desktop device
- Runs Junos OS
- Application security services: IPS, application-aware security, user role-based firewall controls
- On-box and cloud-based antivirus and anti-spam
- Mini-PIM support for T1/E1, VDSL2, serial, 4G/LTE and 802.11ac Wave 2 Wi-Fi
- Secure SD-WAN capable

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x GbE ports (6 x 1000Base-T RJ-45 + 2 x 1000Base-X SFP)
- 4 GB RAM
- 8 GB flash storage
- Up to 1 Gbps firewall throughput
- Up to 300 Mbps IPsec VPN throughput
- Up to 64,000 concurrent sessions
- 256 IPsec VPN tunnels, 256 GRE tunnels
- 16 security zones, 32 virtual routers
- 2 x Mini-PIM slots for WAN expansion
- Console: 1 x RJ-45, 1 x mini-USB; 1 x USB 2.0 Type A
- Desktop form factor, external AC power adapter included
- Dimensions (H x W x D): 4.39 x 29.99 x 19.1 cm, weight 1.51 kg
- Operating temperature 0 to 40 C, humidity 10% to 90% non-condensing

FAQs

Q: What ports does the SRX320-SYS-JB-T provide?
A: It provides 8 gigabit ports: 6 x 1000Base-T RJ-45 and 2 x 1000Base-X SFP, plus RJ-45 and mini-USB console ports and a USB 2.0 Type A port.

Q: Is a power adapter included?
A: Yes. This configuration includes an external AC power adapter.

Q: What WAN expansion options are supported?
A: The two Mini-PIM slots support T1/E1, VDSL2, serial, 4G/LTE and 802.11ac Wave 2 Wi-Fi modules.

Q: What throughput can the SRX320 deliver?
A: Up to 1 Gbps firewall throughput and up to 300 Mbps IPsec VPN throughput, with up to 64,000 concurrent sessions.

Q: What operating system does it run?
A: The SRX320 runs Junos OS.

Q: Who is the SRX320 suited to?
A: Its desktop form factor and consolidated security, routing and switching suit branch offices and remote sites that need a single compact gateway.
