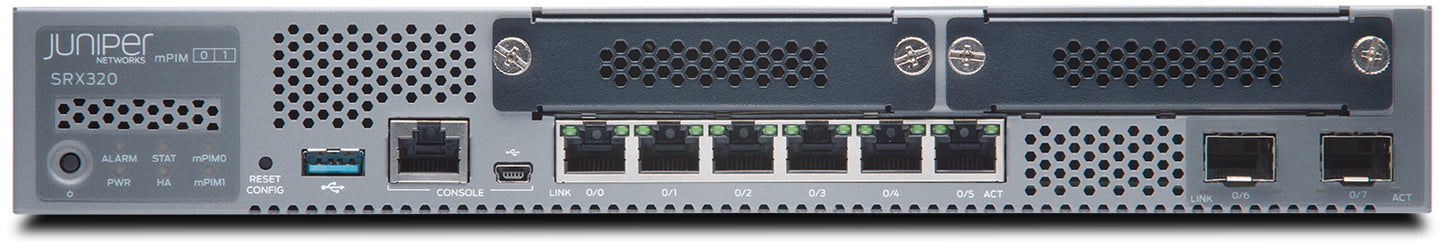

• Juniper SRX320 firewall with perforated casing and Ethernet ports
1 1

Juniper

Juniper SRX320-SYS-JB | SRX320 Services Gateway, 8x GE, 2x MPIM, AC, Non-PoE

Juniper SRX320-SYS-JB | SRX320 Services Gateway, 8x GE, 2x MPIM, AC, Non-PoE

Authorised Juniper Partner

SRX320-SYS-JB

Stock Status: Enquire

$1,384.42 inc. GST
$1,258.56 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The SRX320 Services Gateway is a desktop branch-office firewall and router that consolidates security, routing, switching and WAN connectivity in one compact device. This non-PoE model with an AC power adapter provides 8 x 1GbE onboard ports (6 x RJ-45 and 2 x SFP), 2 x MPIM slots, 4 GB DRAM and 8 GB flash, with up to 1 Gbps of firewall throughput and up to 300 Mbps of IPsec VPN throughput.

It ships with Junos Software Base, covering firewall, NAT, IPsec, routing, MPLS and switching. The two MPIM slots allow modular WAN expansion such as T1/E1, VDSL2 or serial, and the SFP ports support MACsec. It suits small distributed enterprise branch offices that need a single, manageable security and routing platform. The PoE variant is SRX320-SYS-JB-P.

Features

- Consolidates security, routing, switching and WAN connectivity in a small desktop device
- Junos Software Base includes firewall, NAT, IPsec, routing, MPLS and switching
- Modular WAN expansion via 2 MPIM slots (e.g. T1/E1, VDSL2, serial)
- MACsec support on the SFP ports
- Aimed at small distributed enterprise branch offices

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x 1GbE onboard ports (6 x RJ-45 and 2 x SFP)
- 2 x MPIM slots
- 4 GB DRAM
- 8 GB flash
- Up to 1 Gbps firewall throughput
- IPsec VPN: 300 Mbps (1,400 B packets), 100 Mbps (IMIX)
- Application visibility and control: 500 Mbps
- Recommended IPS: 200 Mbps
- Next-generation firewall: 171 Mbps
- Route table size: 256,000 IPv4 or IPv6 entries (RIB/FIB)
- MACsec support on SFP ports
- Management ports: 1 x RJ-45 console, 1 x Mini USB, 1 x USB
- Desktop fixed chassis: 4.39 cm H x 29.99 cm W x 19.10 cm D
- Weight: 1.49 kg as shipped
- AC power adapter and cable included, non-PoE

FAQs

Q: Does this SRX320 model support PoE?
A: No. SRX320-SYS-JB is the non-PoE model supplied with an AC power adapter. The PoE variant is SRX320-SYS-JB-P.

Q: What onboard ports does the SRX320-SYS-JB have?
A: It has 8 x 1GbE onboard ports, made up of 6 x RJ-45 and 2 x SFP, plus console, Mini USB and USB management ports.

Q: Can the WAN connectivity be expanded?
A: Yes. Two MPIM slots allow modular WAN interfaces such as T1/E1, VDSL2 or serial.

Q: What software comes with this unit?
A: It ships with Junos Software Base, which includes firewall, NAT, IPsec, routing, MPLS and switching.

Q: How much memory and storage does it have?
A: The SRX320-SYS-JB has 4 GB DRAM and 8 GB flash.

Q: What throughput can I expect?
A: Up to 1 Gbps firewall throughput and up to 300 Mbps IPsec VPN throughput with 1,400 byte packets.
