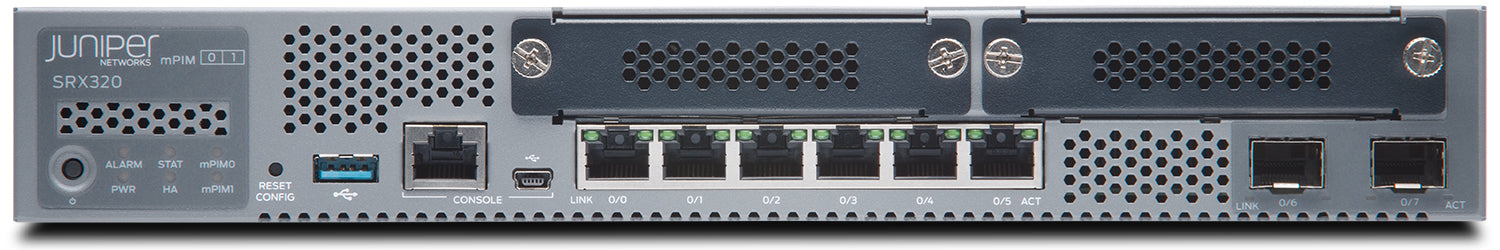

• Juniper SRX320 firewall with perforated casing, 8 GE ports, 6 PoE+ ports
1 1

Juniper

Juniper SRX320-SYS-JB-P | SRX320 Services Gateway Firewall, 8GE, 6-Port PoE+

Juniper SRX320-SYS-JB-P | SRX320 Services Gateway Firewall, 8GE, 6-Port PoE+

Authorised Juniper Partner

SRX320-SYS-JB-P

Stock Status: Enquire

$3,220.41 inc. GST
$2,927.65 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper SRX320 Services Gateway is a compact desktop branch-office firewall and router running Junos OS, combining firewall, IPsec VPN and routing in one chassis. This PoE+ model provides 8GE connectivity with 6 PoE+ RJ-45 ports to power phones, access points and cameras, plus two Mini-PIM slots and 4 GB of DRAM.

With 1900 Mbps of firewall throughput (1518B), up to 64K concurrent sessions and 256 IPsec VPN tunnels, it suits small to mid-sized branch sites that need secure WAN connectivity. Two 1GbE SFP ports with MACsec support, 8 GB of internal flash and a fixed AC power supply complete the package.

Features

- Junos OS with integrated firewall, VPN and routing for branch offices
- PoE+ on the built-in RJ-45 ports to power phones, access points and cameras
- Two Mini-PIM slots allow WAN and LAN expansion
- MACsec support on the SFP ports
- Fixed AC power supply and compact desktop chassis

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 6 x 10/100/1000 BASE-T RJ-45 ports with PoE+
- 2 x 1GbE SFP ports with MACsec support
- 2 x Mini-PIM slots
- 4 GB DRAM
- 8 GB internal flash storage
- Firewall throughput 1900 Mbps (1518B), 600 Mbps (IMIX)
- IPsec VPN throughput 0.336 Gbps (1400B)
- Up to 64K concurrent sessions and 256 IPsec VPN tunnels
- 2 console ports (RJ-45, Mini USB Type B) and 1 x USB 3.0 Type A
- Desktop fixed chassis, 30.0 x 19.1 x 4.39 cm, 1.55 kg
- AC to DC fixed power supply, 221 W average system power consumption
- Operating temperature 0 to 40 C

FAQs

Q: Does the SRX320-SYS-JB-P support PoE+?
A: Yes. This is the PoE+ model, with PoE+ supplied on its 6 built-in RJ-45 gigabit ports to power devices such as IP phones, access points and cameras.

Q: Can the SRX320 be expanded?
A: Yes. It has two Mini-PIM slots for adding WAN or LAN interface modules, plus two 1GbE SFP ports for fibre or SFP-based uplinks.

Q: What operating system does the SRX320 run?
A: It runs Junos OS, providing integrated firewall, IPsec VPN and routing functions.

Q: How much memory and storage does this model have?
A: It includes 4 GB of DRAM and 8 GB of internal flash storage.

Q: What firewall and VPN performance can I expect?
A: Firewall throughput is 1900 Mbps with 1518B packets and 600 Mbps with IMIX traffic. IPsec VPN throughput is 0.336 Gbps with 1400B packets, with support for up to 256 IPsec VPN tunnels and 64K concurrent sessions.

Q: Is the SRX320 rack-mountable?
A: It is a desktop form factor fixed chassis measuring 1.73 in high, 11.81 in wide and 7.52 in deep, designed for branch office and desktop deployment.
