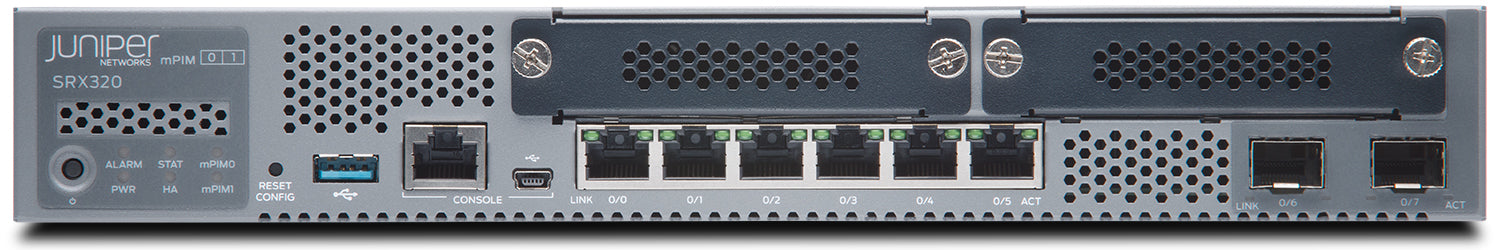

Juniper SRX320-JSE | SRX320 Services Gateway Firewall, JSE, non-PoE, 8x 1GbE

Name: Juniper SRX320-JSE | SRX320 Services Gateway Firewall, JSE, non-PoE, 8x 1GbE
Brand: Juniper
SKU: SRX320-JSE
Price: 2198.81 AUD
Availability: BackOrder

Authorised Juniper Partner

SKU:SRX320-JSE

Stock Status: Enquire

$2,198.81 inc. GST

$1,998.92 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Juniper SRX320 Services Gateway with Junos Software Enhanced (JSE) is a compact desktop branch-office firewall that consolidates stateful firewall, NAT, IPsec VPN, routing, switching and WAN connectivity, including MPLS, in a single device. This non-PoE model provides 8 x 1GbE onboard ports (6 x RJ-45 and 2 x SFP), up to 1 Gbps of stateful firewall throughput and up to 300 Mbps of IPsec VPN throughput.

Two Mini-PIM slots allow WAN options such as T1/E1, VDSL2, serial or 4G/LTE to be added, while MACsec on two 1GbE ports, chassis cluster HA support and TPM-based protection of secrets suit secure branch deployments. Optional subscription services add IPS, antivirus, enhanced web filtering and Advanced Threat Prevention.

Features

- Consolidates security, routing, switching and WAN connectivity in one small desktop device
- Stateful, zone-based firewall with DDoS protection and screens
- IPsec VPN and Juniper Secure Connect SSL remote access VPN
- MACsec encryption on 2 x 1GbE ports
- Optional Mini-PIMs for T1/E1, VDSL2, serial or 4G/LTE connectivity
- Advanced security via subscription: IPS, antivirus, enhanced web filtering, Advanced Threat Prevention and Encrypted Traffic Insights
- SD-WAN features including AppQoE, APBR and ZTP
- TPM-based protection of secrets and anti-counterfeit hardware features
- Chassis cluster HA support

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x 1GbE onboard ports (6 x RJ-45 and 2 x SFP)
- 2 x Mini-PIM WAN slots
- MACsec-capable ports: 2 x 1GbE
- Stateful firewall throughput: up to 1 Gbps (1,518 B)
- IPsec VPN throughput: up to 300 Mbps (1,400 B)
- Next-generation firewall throughput: 100 Mbps
- Recommended IPS throughput: 200 Mbps
- Application visibility and control: 500 Mbps
- Maximum concurrent sessions: 64,000
- IPsec VPN tunnels: 256
- Maximum security policies: 1,000
- Connections per second: 5,000
- Maximum VLANs: 1,000
- 4 GB RAM and 8 GB storage
- Console port (RJ-45 and miniUSB) and 1 x USB 3.0 Type A
- Desktop form factor with front-to-back cooling and external AC power supply
- Average power consumption: 46 W (non-PoE model)
- Dimensions (WxHxD): 29.99 x 4.39 x 19.10 cm, weight 1.51 kg
- Operating temperature: 0 to 40 C

FAQs

Q: Does the SRX320-JSE support PoE?
A: No. The SRX320-JSE is the non-PoE model. A PoE+ version is available as the SRX320-POE.

Q: What WAN options can be added to the SRX320?
A: The two Mini-PIM slots accept optional modules including T1/E1, VDSL2, serial and 4G/LTE.

Q: What firewall and VPN throughput does it deliver?
A: Up to 1 Gbps of stateful firewall throughput (1,518 B packets) and up to 300 Mbps of IPsec VPN throughput (1,400 B packets).

Q: How many onboard ports does it have?
A: There are 8 x 1GbE onboard ports: 6 x RJ-45 and 2 x SFP. Two of the 1GbE ports are MACsec-capable.

Q: Does it support high availability?
A: Yes. The SRX320 supports chassis cluster high availability.

Q: Are advanced threat features included?
A: IPS, antivirus, enhanced web filtering, Advanced Threat Prevention and Encrypted Traffic Insights are available through optional subscriptions.
