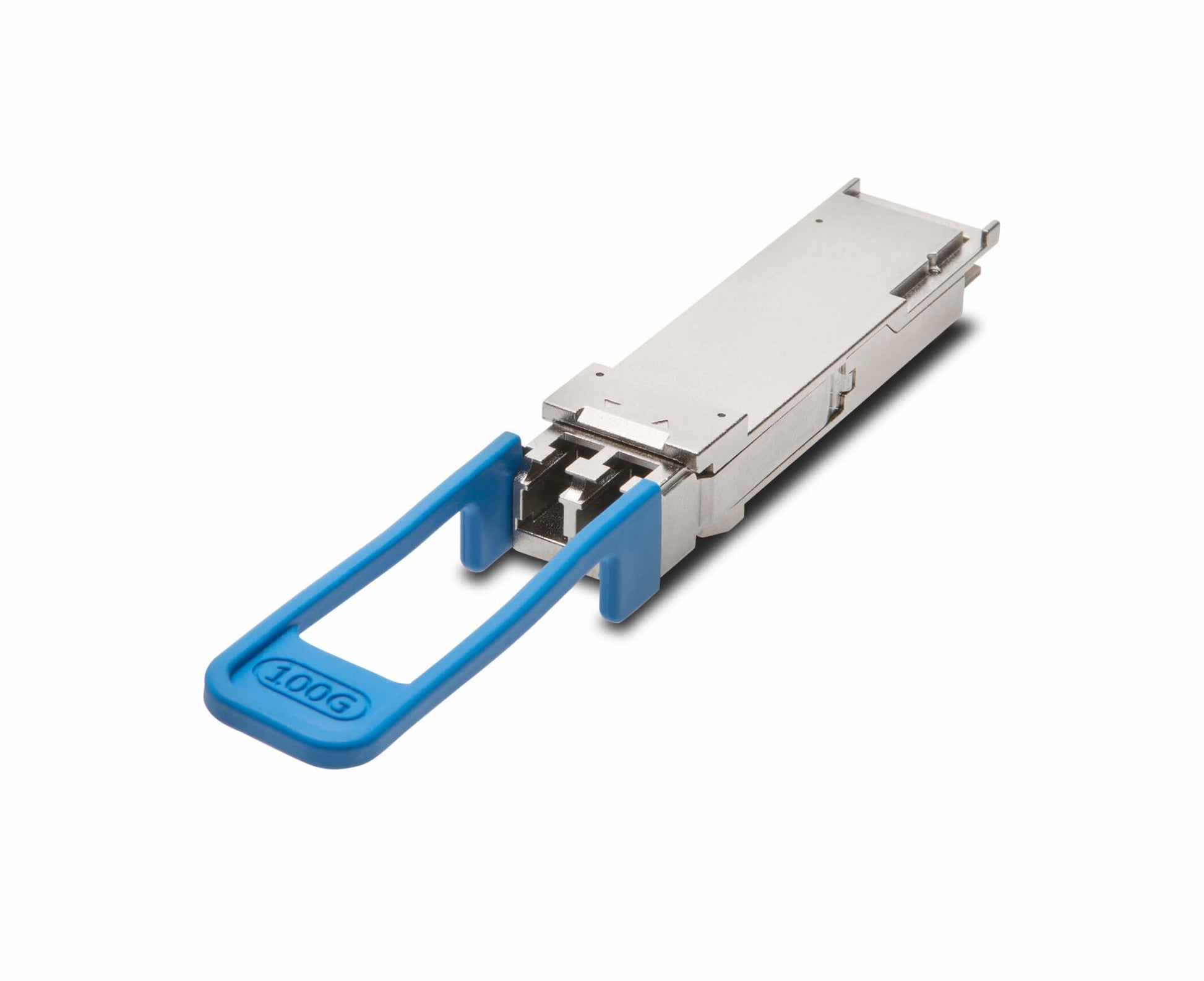

Juniper QSFP-100G-ER4L | 100G QSFP28 ER4 Lite Transceiver, Single-Mode, 40km, LC

Authorised Juniper Partner

SKU:QSFP-100G-ER4L

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The QSFP-100G-ER4L is a 100G QSFP28 ER4 Lite transceiver for single-mode fibre links, built for long-reach 100 Gigabit Ethernet connections of up to 40 km with host FEC. It uses a duplex LC connector and a standard 0 to 70 C operating temperature range, making it suited to metro, campus interconnect and carrier-grade deployments.

The module is a hot-swappable QSFP28 optic that operates in the 1310 nm band using LAN-WDM wavelengths (4 x 25G) and supports Ethernet rate only. Without host FEC the reach is up to 30 km. Digital diagnostics monitoring allows optical power and module health to be tracked in operation.

Features

- Hot-swappable QSFP28 form factor
- Long-reach 100G over single-mode fibre, up to 40 km with host FEC
- Duplex LC connector
- LAN-WDM 4 x 25G operation in the 1310 nm band
- Digital diagnostics monitoring for optical performance visibility
- Ethernet rate support

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP28
- Data rate: 100 Gbps
- Standard: 100GBASE-ER4 Lite
- Fibre type: Single-mode (G.652)
- Connector: Duplex LC
- Wavelength: 1295.56, 1300.05, 1304.58, 1309.14 nm (LAN-WDM)
- Maximum distance: 40 km with host FEC, 30 km without FEC
- Operating temperature: 0 to 70 C (standard temperature)
- Digital diagnostics monitoring (DDM)

FAQs

Q: What is the maximum reach of the QSFP-100G-ER4L?
A: It reaches up to 40 km with host FEC enabled and up to 30 km without FEC, over single-mode fibre.

Q: What fibre and connector does this transceiver use?
A: It uses single-mode fibre (G.652) with a duplex LC connector.

Q: What temperature range does this module support?
A: This is the standard temperature version, rated for 0 to 70 C operation.

Q: Does it support digital diagnostics?
A: Yes, it provides digital diagnostics monitoring (DDM) so optical parameters can be monitored.

Q: Does this module support protocols other than Ethernet?
A: No, it supports Ethernet rate only.

Q: What host port does it need?
A: It requires a QSFP28 port capable of 100GBASE operation. Check your platform's supported optics list before ordering.
