Juniper EX4400-48MXP-S | EX4400 48-Port Multigigabit PoE++ Switch, 12x 10G, Spare Chassis

Authorised Juniper Partner

SKU:EX4400-48MXP-S

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

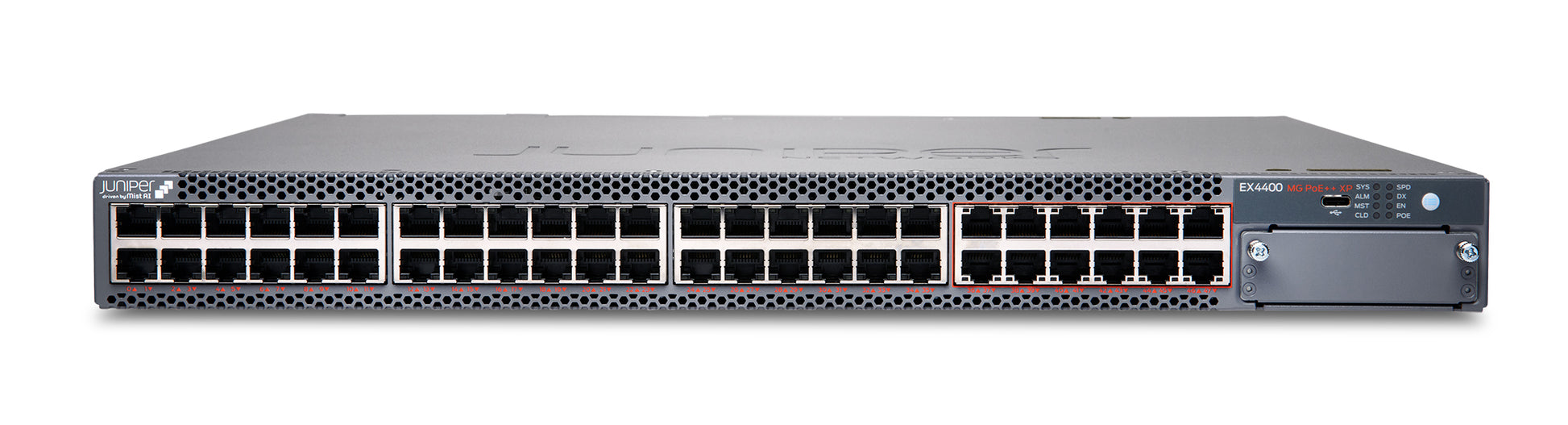

The Juniper EX4400-48MXP-S is an EX4400 48-port multigigabit PoE++ switch supplied as a spare chassis without fans or power supplies. It delivers 12 x 100M/1/2.5/5/10GbE and 36 x 100M/1/2.5GbE RJ-45 ports in a fixed 1 U form factor, with IEEE 802.3bt PoE of up to 90W per port for Wi-Fi 7-ready access points, cameras and other high-power devices in campus access deployments.

The chassis offers 1020 Gbps switching capacity, 758 Mpps throughput and a 400 Gbps Virtual Chassis interconnect backplane. It supports an optional uplink module with 10/25/40/100GbE ports and works with EVPN-VXLAN and Virtual Chassis campus fabrics. Because this spare SKU ships without power supplies and fan modules, compatible modules must be supplied separately to complete the installation.

Features

- Wi-Fi 7-ready multigigabit access switch
- High-power PoE++ for access points, cameras and IoT devices
- Supports EVPN-VXLAN campus fabrics
- Virtual Chassis support for simplified management
- Cloud-managed with Wired Assurance
- 100GbE uplink and stacking capability
- Redundant, load-sharing power supplies and field-replaceable modules supported

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 12 x 100M/1/2.5/5/10GbE RJ-45 ports
- 36 x 100M/1/2.5GbE RJ-45 ports
- 48 RJ-45 ports in total
- Optional 4 x 10/25/40/100GbE uplink ports via uplink module
- PoE++ (IEEE 802.3bt) up to 90W per port
- Up to 3600W total PoE budget with dual AC power supplies
- Switching capacity: 1020 Gbps
- Throughput: 758 Mpps
- Virtual Chassis interconnect backplane: 400 Gbps
- Fixed 1 U form factor, 44.2 x 4.4 x 39.9 cm
- Spare chassis SKU, no fans or power supplies included

FAQs

Q: Does the EX4400-48MXP-S include power supplies and fans?
A: No. This is a spare chassis SKU supplied without fan modules or power supplies, which must be sourced separately.

Q: How many multigigabit ports does this switch have?
A: It has 48 RJ-45 ports: 12 ports supporting 100M/1/2.5/5/10GbE and 36 ports supporting 100M/1/2.5GbE.

Q: What PoE standard does the EX4400-48MXP support?
A: It supports PoE++ (IEEE 802.3bt) with up to 90W per port, and up to 3600W total PoE budget when fitted with dual AC power supplies.

Q: Does this switch include uplink ports?
A: Uplinks are provided by an optional uplink module offering 4 x 10/25/40/100GbE ports, sold separately.

Q: Can the EX4400-48MXP-S be used in a Virtual Chassis?
A: Yes. The EX4400 platform supports Virtual Chassis with a 400 Gbps interconnect backplane, and also supports EVPN-VXLAN campus fabrics.

Q: What is this spare chassis typically used for?
A: It is intended as a replacement or expansion chassis for EX4400-48MXP deployments, where existing compatible power supplies and fan modules can be reused or purchased separately.
