Juniper EX4100-H-24F-T | EX4100-H Hardened 24-Port 1G SFP Switch, 4x 10G SFP+, MACsec

Authorised Juniper Partner

SKU:EX4100-H-24F-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

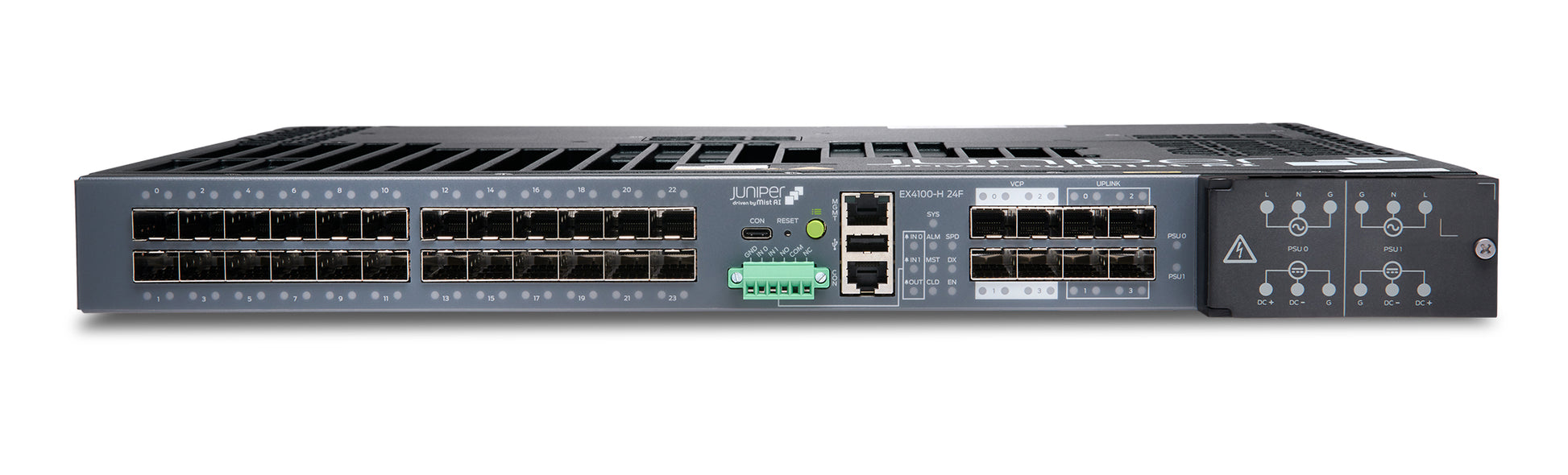

The Juniper EX4100-H-24F-T is a hardened 24-port Gigabit SFP fibre access switch from the EX4100 series, built for deployments that need fibre connectivity in demanding environments. It provides 24 x 1G SFP ports with 4 x 10G SFP+ Virtual Chassis capable uplinks, MACsec AES-256 link encryption and an AC power supply, making it well suited to secure campus, branch and edge aggregation.

The 10G SFP+ uplinks allow high-speed connections back to the core or aggregation layer, and Virtual Chassis support lets multiple switches be managed as a single logical device. This is a TAA-compliant model, suitable for government and regulated procurement requirements.

Features

- 24-port Gigabit SFP fibre access connectivity
- 4 x 10G SFP+ uplinks for core or aggregation links
- Virtual Chassis capable uplinks for single-point management
- MACsec AES-256 for Layer 2 link encryption
- Hardened chassis for demanding deployment environments
- TAA-compliant for government procurement

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 1GbE SFP ports
- 4 x 10GbE SFP+ Virtual Chassis uplinks
- MACsec AES-256 encryption support
- AC power supply
- Hardened design
- TAA-compliant model

FAQs

Q: What port configuration does the EX4100-H-24F-T provide?
A: It provides 24 x 1G SFP ports for fibre access connections and 4 x 10G SFP+ uplink ports.

Q: Does the EX4100-H-24F-T support MACsec?
A: Yes. It supports MACsec with AES-256 encryption for securing Layer 2 links between devices.

Q: Can the uplink ports be used for Virtual Chassis?
A: Yes. The 4 x 10G SFP+ uplinks are Virtual Chassis capable, allowing multiple switches to be managed as one logical unit.

Q: Does this switch include copper PoE ports?
A: No. This model is an SFP-based fibre access switch with 24 x 1G SFP ports. Optics or transceivers are required for the SFP and SFP+ ports.

Q: What power supply does the EX4100-H-24F-T use?
A: It is the AC-powered variant, supplied with an AC power supply.

Q: Is the EX4100-H-24F-T suitable for government tenders?
A: It is a TAA-compliant model, which suits procurement requirements that specify TAA compliance.
