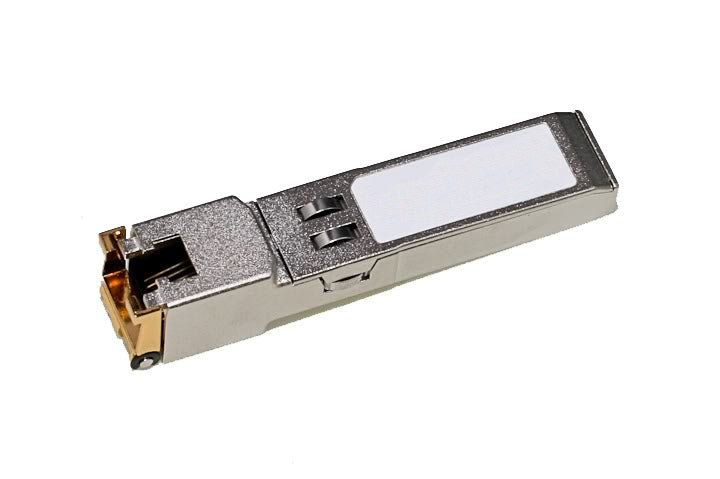

Juniper EX-SFP-1GE-T | EX Series 1G Copper SFP Transceiver, RJ-45, 100m

Name: Juniper EX-SFP-1GE-T | EX Series 1G Copper SFP Transceiver, RJ-45, 100m
Brand: Juniper
SKU: EX-SFP-1GE-T
Price: 542.32 AUD
Availability: BackOrder

Authorised Juniper Partner

SKU:EX-SFP-1GE-T

Stock Status: Enquire

$542.32 inc. GST

$493.02 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Juniper EX-SFP-1GE-T is a 1G copper SFP transceiver supporting 10/100/1000BASE-T Ethernet over Cat5 or better twisted-pair cabling, with an RJ-45 connector and a reach of up to 100m. It lets you add a copper Gigabit link to an SFP port on Juniper EX Series switches and other Juniper platforms with SFP ports, so short runs do not need fibre.

Built to the SFP Multi-Source Agreement footprint, the module is hot-pluggable and supports 10/100/1000BASE-T auto-negotiation in host systems with an SGMII interface. It does not provide digital diagnostics (DOM/DDM), making it a straightforward option for access-layer and short-reach copper uplink deployments.

Features

- Supports 10/100/1000BASE-T auto-negotiation
- Hot-pluggable SFP footprint
- Based on the SFP Multi-Source Agreement (MSA)
- Reaches 100m over copper, so fibre is not needed for short runs
- Works with 10/100/1000BASE-T operation in host systems with an SGMII interface

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: SFP (Small Form-factor Pluggable)
- Speed: 10/100/1000BASE-T (1 Gigabit Ethernet)
- Connector: RJ-45
- Media: Copper twisted pair (Cat5 or better)
- Reach: 100m
- Transceiver type: TX
- Digital diagnostics (DOM/DDM): No

FAQs

Q: What cabling does the EX-SFP-1GE-T use?
A: It uses copper twisted-pair cabling, Cat5 or better, terminated with an RJ-45 connector, for runs of up to 100m.

Q: What speeds does this SFP support?
A: It supports 10/100/1000BASE-T Ethernet with auto-negotiation, so it can link at 10, 100 or 1000 Mbps depending on the connected device.

Q: Which Juniper platforms is it used with?
A: It is used in Juniper EX Series switches and other Juniper platforms that have SFP ports.

Q: Does this module support digital diagnostics (DOM/DDM)?
A: No. The EX-SFP-1GE-T is a non-DOM module, so it does not report digital diagnostic data.

Q: Is this a fibre transceiver?
A: No. It is a copper SFP with an RJ-45 port, intended for short-reach twisted-pair links where fibre is not required.

Q: Can it be installed while the switch is powered on?
A: Yes. The module uses a hot-pluggable SFP footprint based on the SFP Multi-Source Agreement.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
