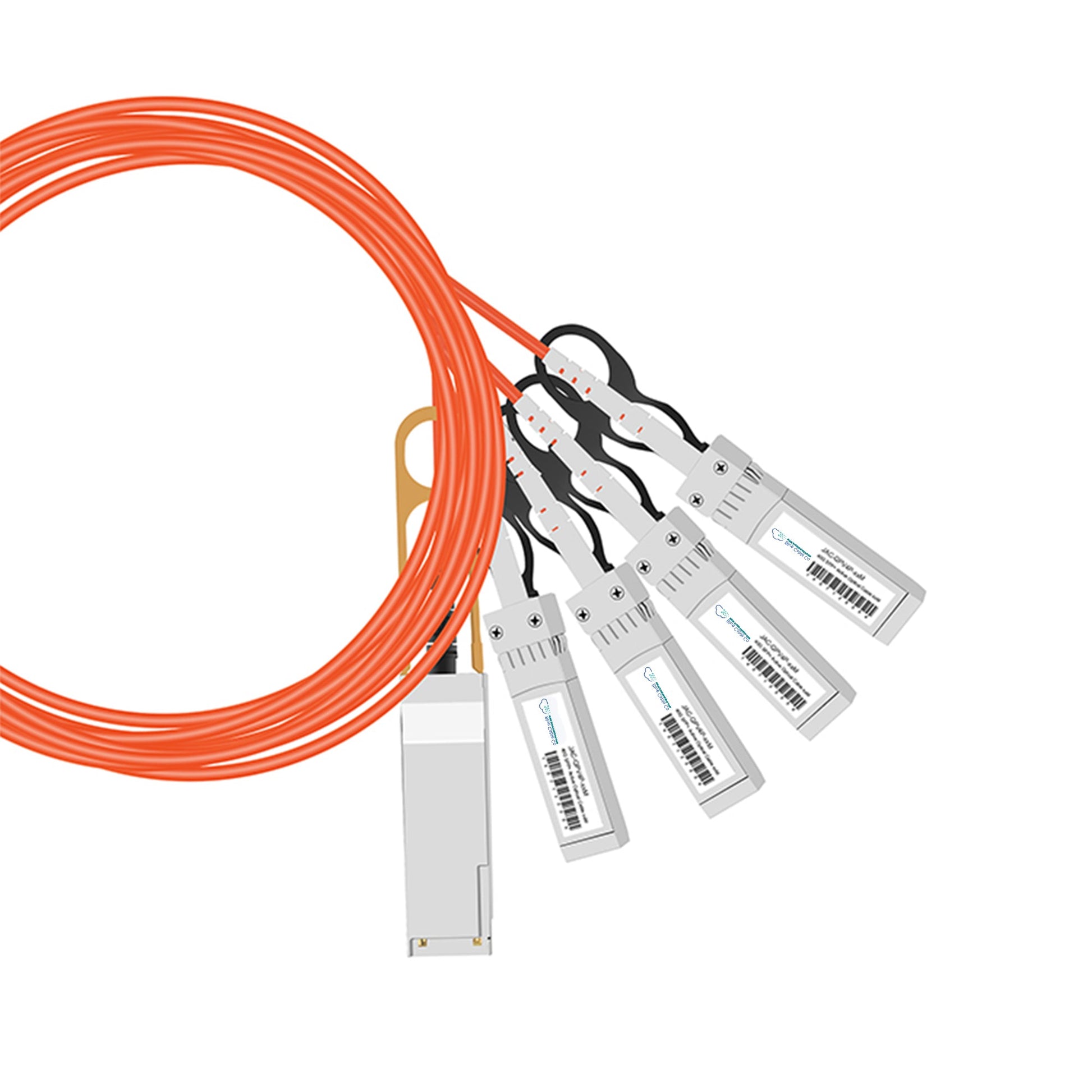

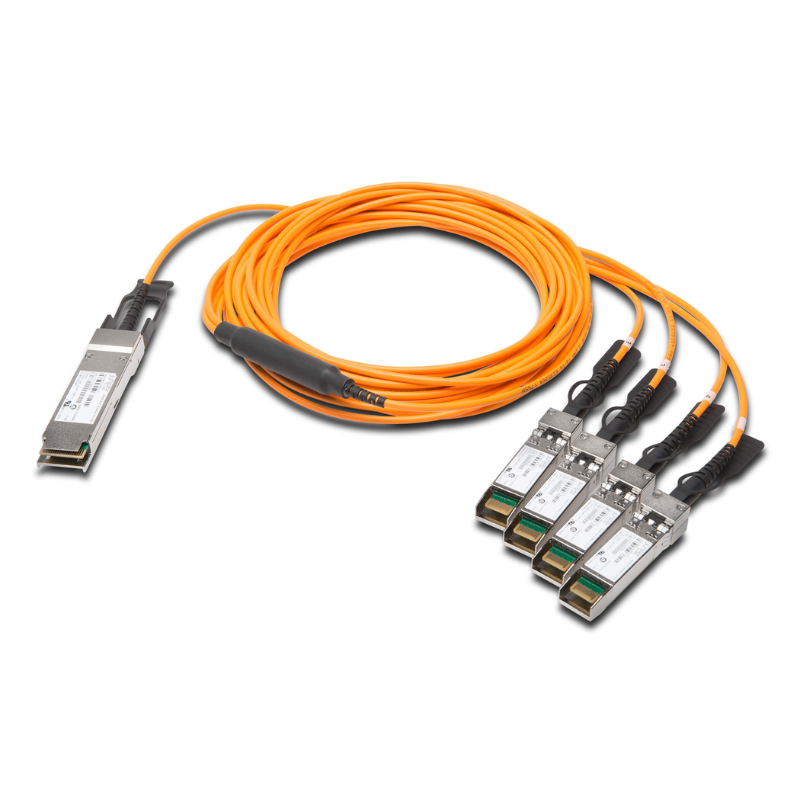

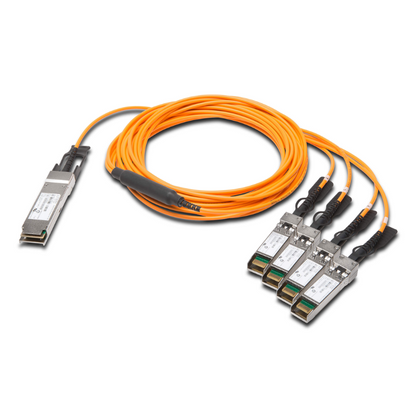

JNP-QSFP-AOCBO-xM-BCC | Juniper Compatible 40GB QSFP to 4 x 10GB SFP+ Active Optical Breakout Cable | 1M to 10M

Q: Will this work in place of the Juniper JNP-QSFP-AOCBO-1M?
A: Yes. This cable is designed as a plug-and-play replacement for the Juniper JNP-QSFP-AOCBO-1M. It adheres to the same MSA standards (SFF-8436 for QSFP+ and SFF-8431 for SFP+), operates at the same 40Gbps aggregate rate (4x 10.3125 Gbps per lane), and uses the same 850nm VCSEL technology over multi-mode fibre. It will function identically in any application where the OEM part is specified.

Q: Which Juniper platforms support this breakout cable?
A: This cable works in any Juniper device with 40G QSFP+ ports that support breakout to 10G SFP+ connectivity. This includes QFX Series data centre switches (such as QFX5100, QFX5110, QFX5120, and QFX10000 line cards), EX Series switches with QSFP+ uplink ports, and MX Series routers with compatible interface modules. Verify that your platform supports 40G-to-4x10G channelisation or breakout mode in your Junos OS release.

Q: Can I mix different length variants of this cable in the same switch or fabric?
A: Yes. Each cable functions independently and the electrical and optical characteristics are consistent across all length variants from 1M to 10M. All variants use the same 850nm VCSEL array, the same power profile, and the same signal integrity design. You can deploy a 1M cable for intra-rack connections and a 10M cable for adjacent-rack uplinks on the same switch without any compatibility concerns or configuration changes.

Q: How does this AOC compare to a passive copper DAC for the same 40G-to-4x10G breakout application?
A: Active optical cables offer lower weight, greater flexibility, and immunity to electromagnetic interference compared to passive copper DAC cables. AOCs are preferred for lengths beyond 3 metres and for dense environments where bend radius and cable management matter. Copper DACs consume less power and cost less at very short distances (1 to 2 metres), but AOCs provide consistent signal quality across all supported lengths and do not suffer from the stiffness and weight issues common in longer copper twinax assemblies.

Q: Do I need to configure breakout mode on the QSFP+ port before inserting this cable?
A: Yes, in most cases. On Juniper platforms, you must issue a CLI command to channelise the 40G QSFP+ port into four 10G interfaces before the SFP+ ends will be recognised by the downstream devices. The exact command syntax depends on your platform and Junos OS version, typically using a command such as 'set interfaces interface-name channelized-options channel speed 10g'. Consult your platform documentation for the correct procedure. Once configured, the breakout is persistent across reboots.
