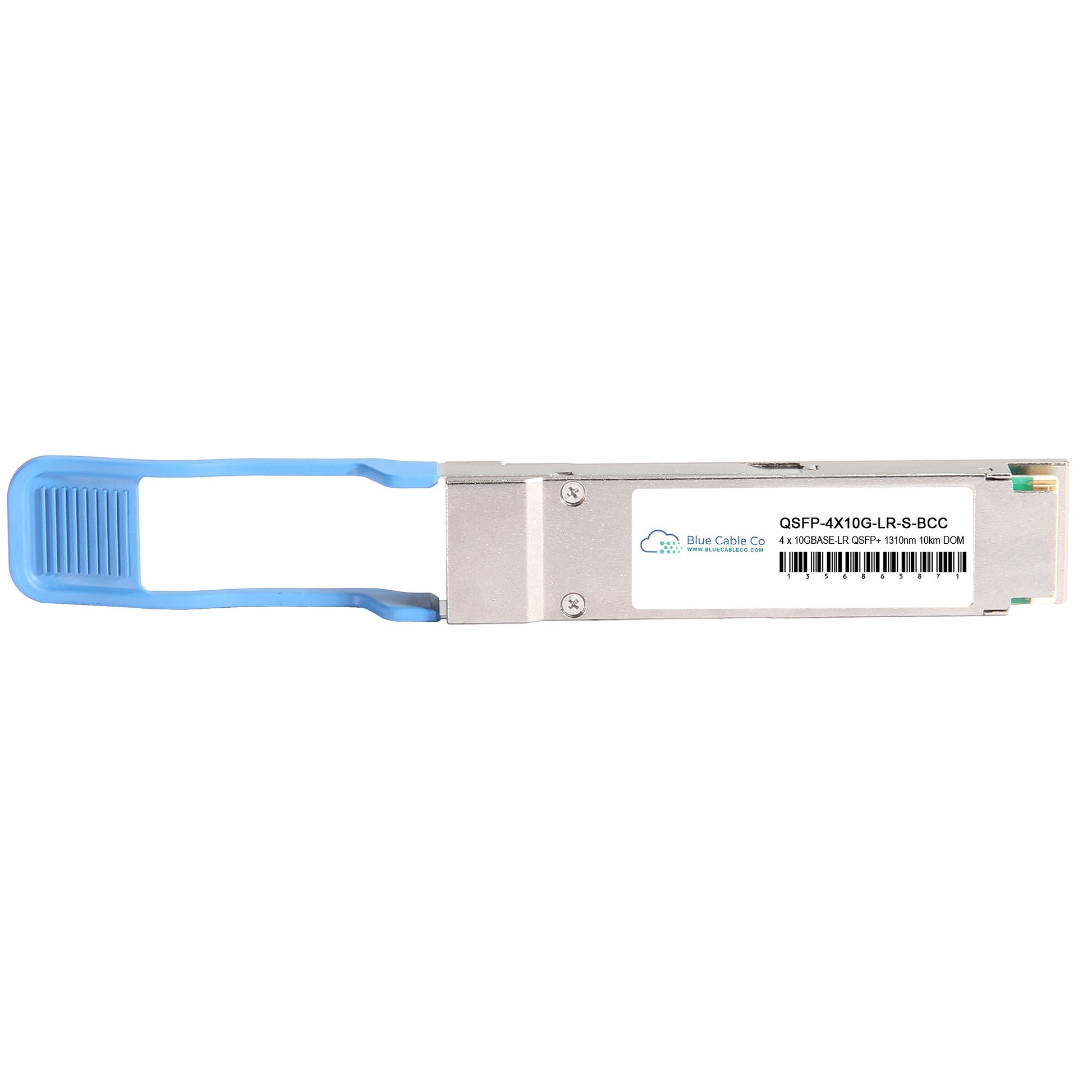

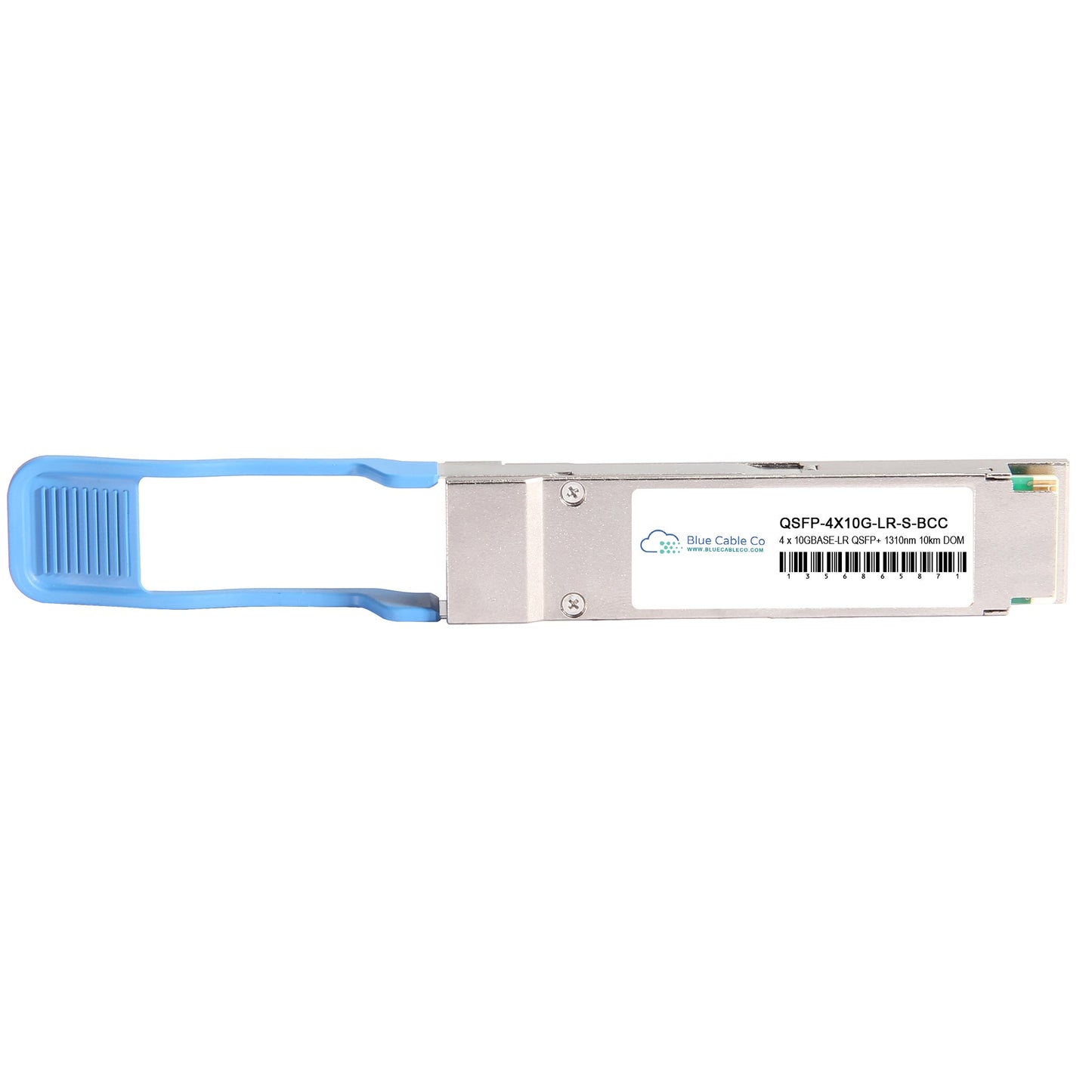

JNP-QSFP-4X10GE-LR-BCC | Juniper Compatible 40GB Single-Mode Breakout Transceiver - 10km (40GBASE-LR / 4x10GBASE-LR)

JNP-QSFP-4X10GE-LR-BCC | Juniper Compatible 40GB Single-Mode Breakout Transceiver - 10km (40GBASE-LR / 4x10GBASE-LR)

JNP-QSFP-4X10GE-LR-BCC

Stock Status: Enquire

$828.30 AUD
$828.30 AUD
$828.30 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

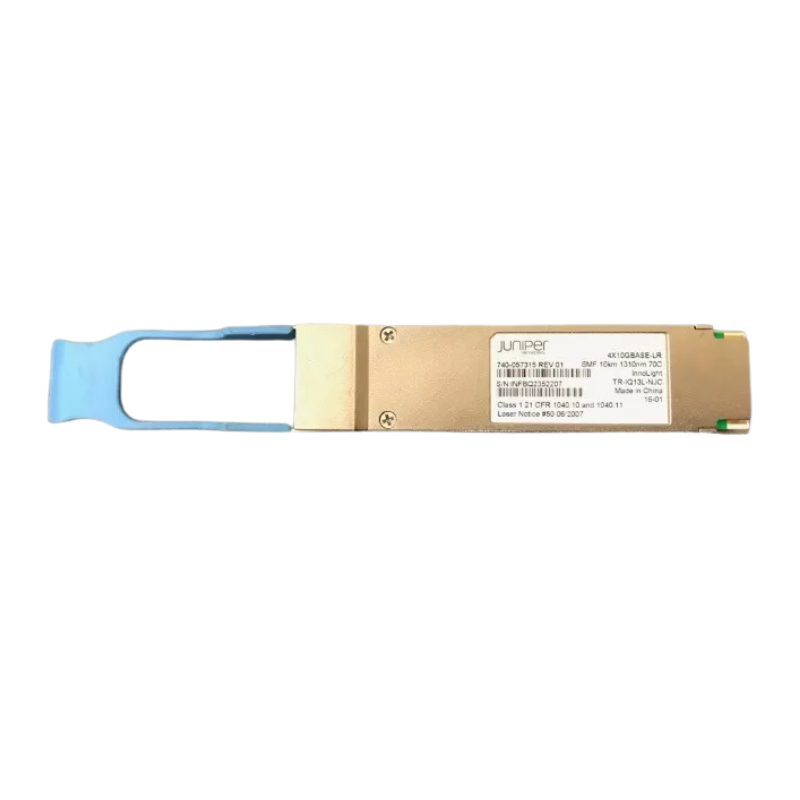

The JNP-QSFP-4X10GE-LR-BCC is a drop-in compatible replacement for the Juniper JNP-QSFP-4X10GE-LR. This QSFP+ transceiver enables plug-and-play 40G or 4x10G connectivity on Juniper platforms requiring 40GBASE-PLR4/PSM4 or 4x10GBASE-LR breakout capability. - IEEE 802.3ba 40GBASE-PSM4 and QSFP+ MSA compliance guarantees interoperability across vendor platforms and breakout cable compatibility - QSFP+ form factor with 40Gbps aggregate data rate over four independent 10Gbps lanes at 1310nm wavelength - Supports up to 10km reach over single-mode fibre (G.652) via MPO-12 connector - Can operate in native 40G mode or break out to four independent 10GBASE-LR interfaces using MTP/MPO-8 to 4xLC duplex breakout cables - Digital diagnostic monitoring (DOM) provides real-time visibility into optical power, temperature, bias current, and voltage per lane - Hot-swappable design with commercial temperature range (0 to 70°C) for flexible deployment in data centre and campus network environments

Features

• IEEE 802.3ba 40GBASE-PSM4 compliance ensures each of the four 10Gbps lanes meets 10GBASE-LR optical specifications, enabling native 40G links or breakout to four independent 10GBASE-LR SFP+ ports over the same transceiver and fibre infrastructure
• Four parallel DFB transmitters and PIN photodiode receivers operate independently at 1310nm, each lane supporting up to 11.2Gbps with CML electrical signalling for aggregate bandwidth up to 44.8Gbps
• 7dB minimum link budget per lane supports 10km reach over standard G.652 single-mode fibre, suitable for inter-building campus links, data centre interconnects, and metropolitan area network aggregation
• MPO-12 APC connector interface with 8 active fibres (4 Tx, 4 Rx) minimizes back-reflection and supports both native 40G parallel optics and 4x10G breakout via standard MTP/MPO-8 to 4xLC duplex OS2 breakout cables
• Per-lane digital diagnostics provide independent monitoring of transmit power, receive power, laser bias current, temperature, and supply voltage via I2C interface per SFF-8436, enabling proactive link troubleshooting and optical budget verification
• Hot-swappable QSFP+ form factor with 38-pin electrical interface per MSA allows installation and removal without system interruption, supporting flexible network topology changes and maintenance windows
• Maximum power consumption under 2.5W enables high-density 40G switch deployments without exceeding thermal envelopes in compact chassis designs

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: JNP-QSFP-4X10GE-LR-BCC
Compatible Replacement For: JNP-QSFP-4X10GE-LR
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP+
Data Rate: 40Gbps aggregate (4x10Gbps per lane)
Wavelength: 1310nm (4x DFB lasers)
Fibre Type: Single-mode (SMF G.652)
Connector Type: MPO-12 (MTP/MPO)
Max Reach: Up to 10km (per datasheet, subject to fibre and link conditions)
DOM Support: Yes (per-lane monitoring)
Standards: IEEE 802.3ba 40GBASE-PSM4, QSFP+ MSA, SFF-8436, SFF-8636
Operating Temperature: 0°C to 70°C (commercial)
Breakout Support: 4x10GBASE-LR via external breakout cable

Alternate Part Codes

740-057315

FAQs

Q: Will this work in place of the Juniper JNP-QSFP-4X10GE-LR?
A: Yes. This transceiver is coded and tested for plug-and-play compatibility with the JNP-QSFP-4X10GE-LR. It meets IEEE 802.3ba 40GBASE-PSM4 specifications with the same QSFP+ form factor, 1310nm wavelength, 10km reach, and MPO-12 connector, ensuring it functions identically in Juniper platforms requiring this interface type.

Q: Which Juniper platforms support this transceiver?
A: This transceiver is compatible with Juniper switches and routers that support 40G QSFP+ interfaces and 40GBASE-PSM4 or 4x10GBASE-LR breakout modes. Compatibility depends on the platform having QSFP+ ports that recognize 1310nm parallel single-mode optics. Consult your platform documentation or contact us to confirm compatibility for your specific model and software version.

Q: What fibre and cable requirements are needed for 4x10G breakout mode?
A: For 4x10G breakout, you need an MTP/MPO-8 to 4xLC duplex breakout cable (often labelled 12-fibre MTP with 8 active fibres) and G.652 single-mode fibre. Each of the four 10G lanes requires a duplex LC connection, and your switch port must support breakout configuration. The switch interface must be configured to split the 40G QSFP+ port into four independent 10G interfaces, which is a software function on the host platform.

Q: What is the difference between 40GBASE-PSM4 and 40GBASE-LR4?
A: 40GBASE-PSM4 (Parallel Single-Mode) uses four parallel 1310nm lanes over an MPO-12 connector with 8 active fibres, allowing breakout to 4x10GBASE-LR. 40GBASE-LR4 uses four multiplexed wavelengths (around 1310nm) over a duplex LC connector on a single fibre pair and does not support 4x10G breakout. PSM4 provides flexibility for mixed 40G and 10G environments; LR4 is optimized for point-to-point 40G links.

Q: Can this transceiver be used without breakout cables in a native 40G link?
A: Yes. When connected with a standard 12-fibre MTP/MPO trunk cable to another 40GBASE-PSM4 transceiver, it operates as a native 40G link using all four lanes in parallel. The host platform treats it as a single 40G interface. Breakout mode is optional and requires both a breakout cable and switch configuration to enable the 4x10G split. Native 40G mode is simpler and ideal when you do not need 10G fanout.
