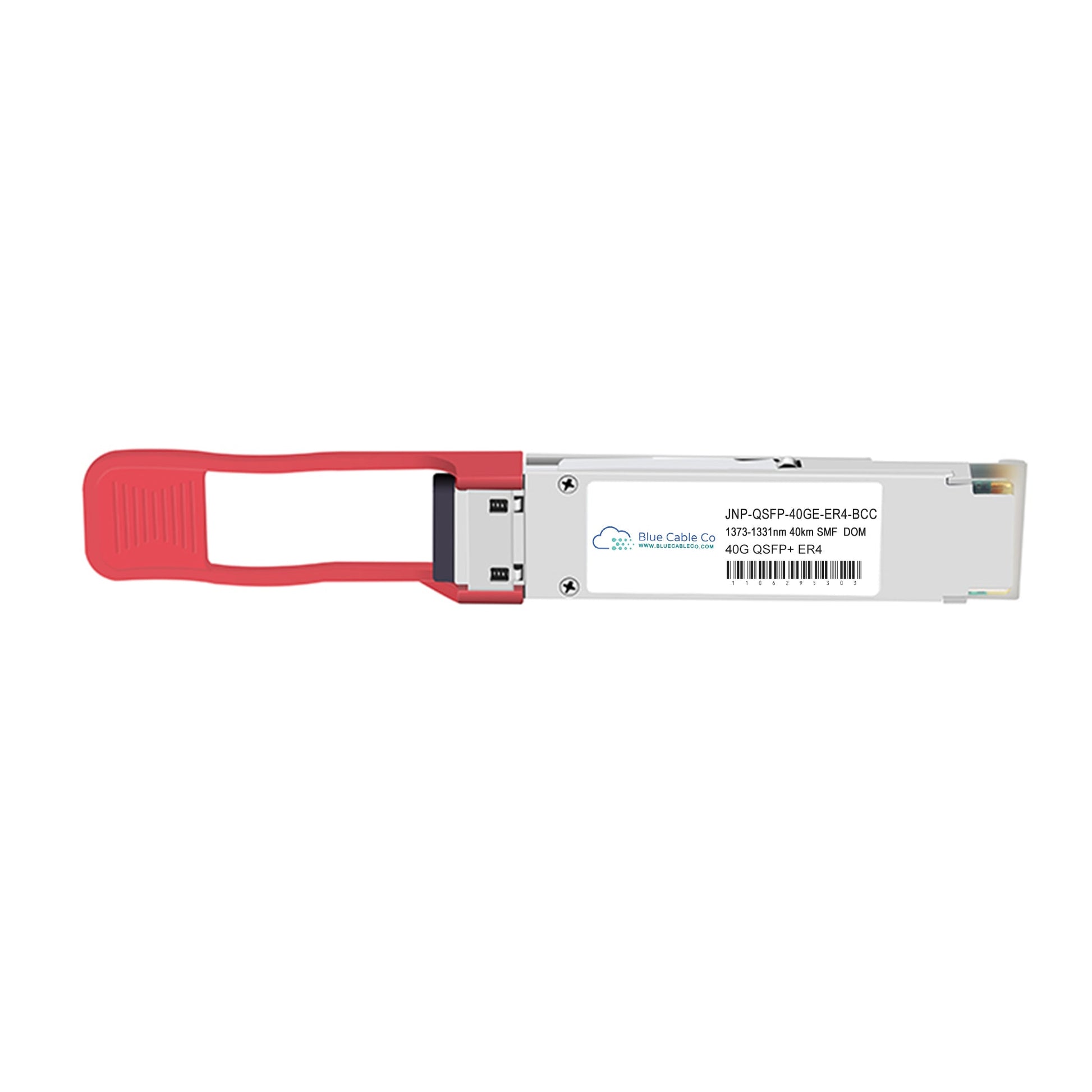

JNP-QSFP-40GE-ER4-BCC | Juniper Compatible 40GB Single-Mode ER4 Transceiver - 40km (40GBASE-ER4)

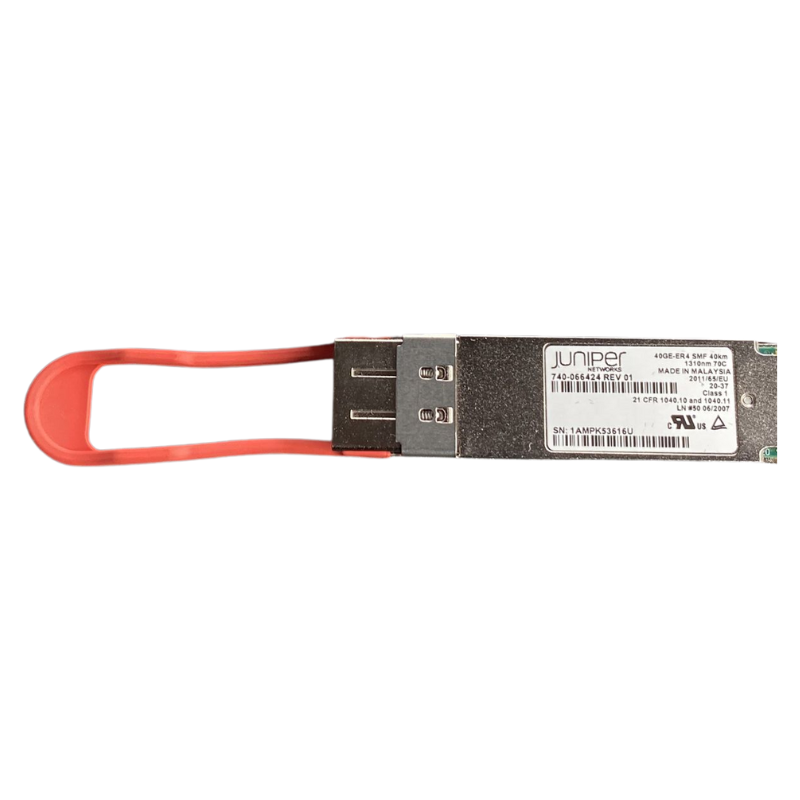

Q: Will this work in place of the Juniper JNP-QSFP-40GE-ER4?
A: Yes. This transceiver is designed as a plug-and-play replacement for the JNP-QSFP-40GE-ER4. It matches the QSFP+ form factor, 40Gbps data rate, 1310nm wavelength operation, and 40km single-mode fibre reach specified by Juniper. It complies with IEEE 802.3ba 40GBASE-ER4 and QSFP+ MSA standards, ensuring functional equivalence in any Juniper platform with a QSFP+ port that accepts the original part.

Q: Which Juniper platforms support this transceiver?
A: This transceiver works in any Juniper switch or router with a QSFP+ port that supports 40GBASE-ER4 optics. This includes platforms across the QFX, EX, SRX, and MX families that feature QSFP+ interfaces and run Junos OS with 40GbE support. Confirm compatibility by verifying that your platform lists JNP-QSFP-40GE-ER4 in the Juniper hardware compatibility tool or datasheet.

Q: What fibre type and grade are required to achieve 40km reach?
A: You need OS2 single-mode fibre (ITU-T G.652 compliant) to achieve the full 40km distance. The transceiver has a specified link budget designed for standard single-mode fibre with typical attenuation around 0.4 dB/km at 1310nm. Actual reach depends on total link loss including fibre attenuation, splice loss, connector loss, and any margin required for ageing. Multimode fibre is not supported.

Q: How does the four-lane CWDM architecture affect cabling and interoperability?
A: The four CWDM lanes (1271, 1291, 1311, 1331nm) are multiplexed and demultiplexed internally within the transceiver module. From a cabling perspective, you only connect a standard duplex LC fibre pair, identical to any other duplex transceiver. The CWDM multiplexing is transparent to the fibre plant. Both ends of the link must use 40GBASE-ER4 transceivers with matching CWDM wavelength sets. You cannot mix ER4 with LR4, SR4, or other 40G variants.

Q: Does this transceiver require forward error correction (FEC) to be enabled on the host?
A: IEEE 802.3ba 40GBASE-ER4 does not mandate FEC, and this transceiver will operate without FEC enabled. However, many Juniper platforms enable FEC by default on 40G interfaces to improve link margin and bit error rate performance, particularly at extended distances. Check your Junos configuration and consider enabling FEC if you experience link stability issues or are operating near the maximum 40km distance. FEC behaviour is controlled by the host, not the transceiver.
