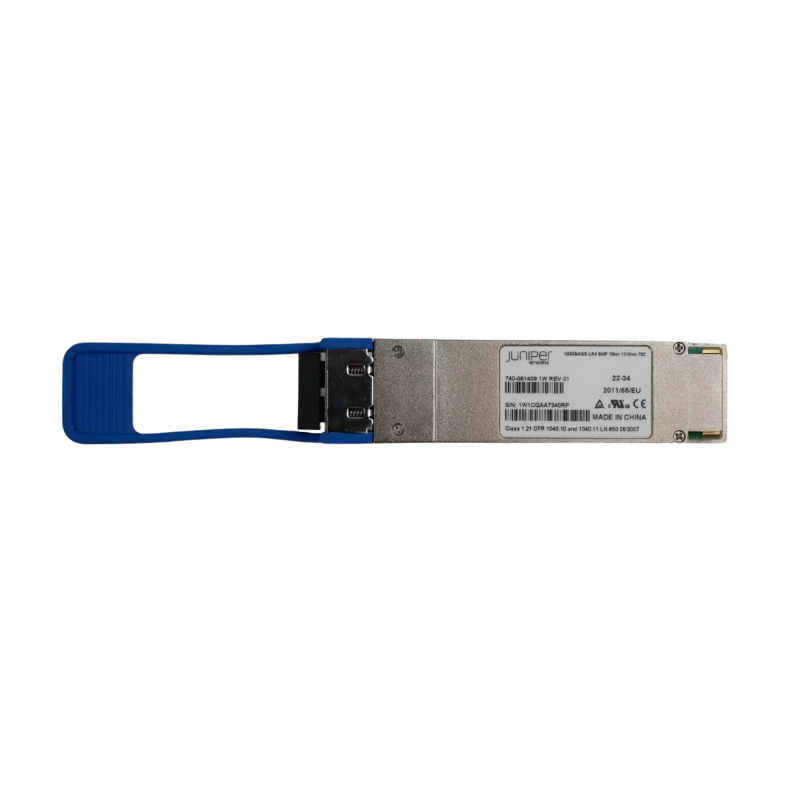

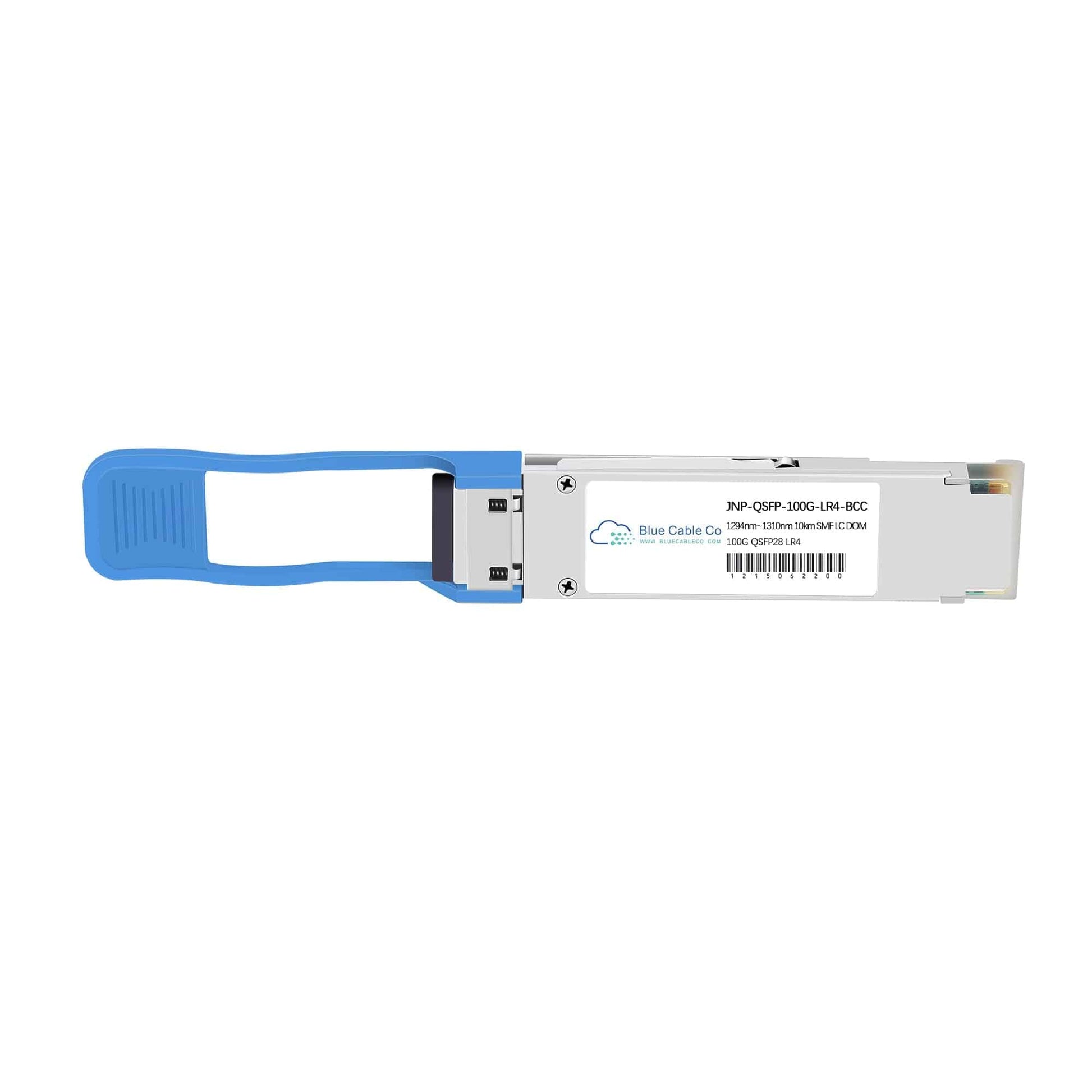

JNP-QSFP-100G-LR4-BCC | Juniper Compatible 100GB Single-Mode 10km (100GBASE-LR4)

JNP-QSFP-100G-LR4-BCC | Juniper Compatible 100GB Single-Mode 10km (100GBASE-LR4)

JNP-QSFP-100G-LR4-BCC

In stock:12

$1,301.30 AUD
$1,301.30 AUD
$1,301.30 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The JNP-QSFP-100G-LR4-BCC is a drop-in compatible replacement for the Juniper JNP-QSFP-100G-LR4. This QSFP28 transceiver provides plug-and-play compatibility with Juniper platforms requiring 100GBASE-LR4 optics. - IEEE 802.3ba 100GBASE-LR4 and QSFP28 MSA compliance ensures interoperability with standard 100G Ethernet infrastructure - QSFP28 form factor delivers 100Gbps throughput over single-mode fibre using duplex LC connectors - Four LAN WDM channels at 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm aggregate four 25Gbps lanes - Supports transmission distances up to 10km over OS2 single-mode fibre (G.652) - Digital Diagnostic Monitoring (DOM) provides real-time access to optical power, temperature, bias current, and voltage parameters - Hot-swappable design with commercial temperature range (0 to 70 degrees Celsius) for data centre and campus deployments

Features

• Four-lane LAN WDM architecture multiplexes 4 x 25.78Gbps electrical channels onto discrete wavelengths within the 1310nm window, enabling full-duplex 100G transmission over a single fibre pair
• Cooled DFB laser transmitters with PIN photodiode receivers deliver 6.3dB link budget to support 10km reach over standard G.652 single-mode fibre
• IEEE 802.3ba Clause 88 compliance guarantees electrical and optical interoperability with 100GBASE-LR4 Ethernet switches, routers, and NICs across vendors
• QSFP28 MSA hot-swap capability allows installation and removal without interrupting host equipment operation or requiring system reboot
• Digital diagnostics via I2C interface expose real-time operating parameters including per-channel transmit power, receive power, temperature, bias current, and supply voltage for proactive link monitoring
• Commercial temperature range and low power consumption (typically under 3.5W) suit high-density switch deployments in controlled data centre and campus network environments

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: JNP-QSFP-100G-LR4-BCC
Compatible Replacement For: JNP-QSFP-100G-LR4
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP28
Data Rate: 100Gbps (4 x 25Gbps)
Wavelength: 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm (LAN WDM)
Fibre Type: Single-mode (SMF)
Connector Type: Duplex LC
DOM Support: Yes (Digital Diagnostic Monitoring)
Standards: IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm CAUI-4, QSFP28 MSA (SFF-8665, SFF-8636)
Max Reach: Up to 10km over OS2 single-mode fibre (subject to fibre quality and link budget)
Operating Temperature: 0 to 70 degrees Celsius (commercial)

Alternate Part Codes

740-061409, QSFP-100G-LR4-C, QSFP-100G-LR4-T2

FAQs

Q: Will this work in place of the Juniper JNP-QSFP-100G-LR4?
A: Yes. This transceiver is fully compliant with the IEEE 802.3ba 100GBASE-LR4 standard and QSFP28 MSA, matching the form factor, data rate, wavelength plan, and reach specification of the JNP-QSFP-100G-LR4. It is plug-and-play compatible and will initialise identically in Juniper equipment requiring this optic.

Q: Which Juniper platforms support this transceiver?
A: This transceiver works in any Juniper platform with QSFP28 ports that support 100GBASE-LR4 optics. Compatibility is determined by the port standard (IEEE 802.3ba), not specific model families. Check your platform documentation for 100G single-mode optical interface support.

Q: What fibre type and quality is required for 10km reach?
A: This transceiver requires OS2 single-mode fibre (G.652 specification) to achieve 10km transmission. Reach depends on the 6.3dB link budget: with typical fibre attenuation of 0.35dB per kilometre at 1310nm plus connector and splice losses, 10km is achievable under standard deployment conditions. Higher-loss fibre or additional splices will reduce maximum distance.

Q: How does the LAN WDM lane architecture affect interoperability?
A: The four wavelengths (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm) are defined by IEEE 802.3ba and standardised across all 100GBASE-LR4 implementations. Each wavelength carries an independent 25Gbps lane. Both sides of the link must use 100GBASE-LR4 optics. This transceiver is not compatible with parallel optics (SR4), CWDM4, or PSM4 variants.

Q: Does this transceiver require Forward Error Correction (FEC) to operate?
A: 100GBASE-LR4 does not mandate FEC at the physical layer, but many switches enable FEC by default on 100G ports to improve link margins and bit error rates. This transceiver operates with or without FEC. Check your switch configuration if the link fails to establish, as FEC mode mismatch between peers can prevent link negotiation on some platforms.
