Blue Cable Co

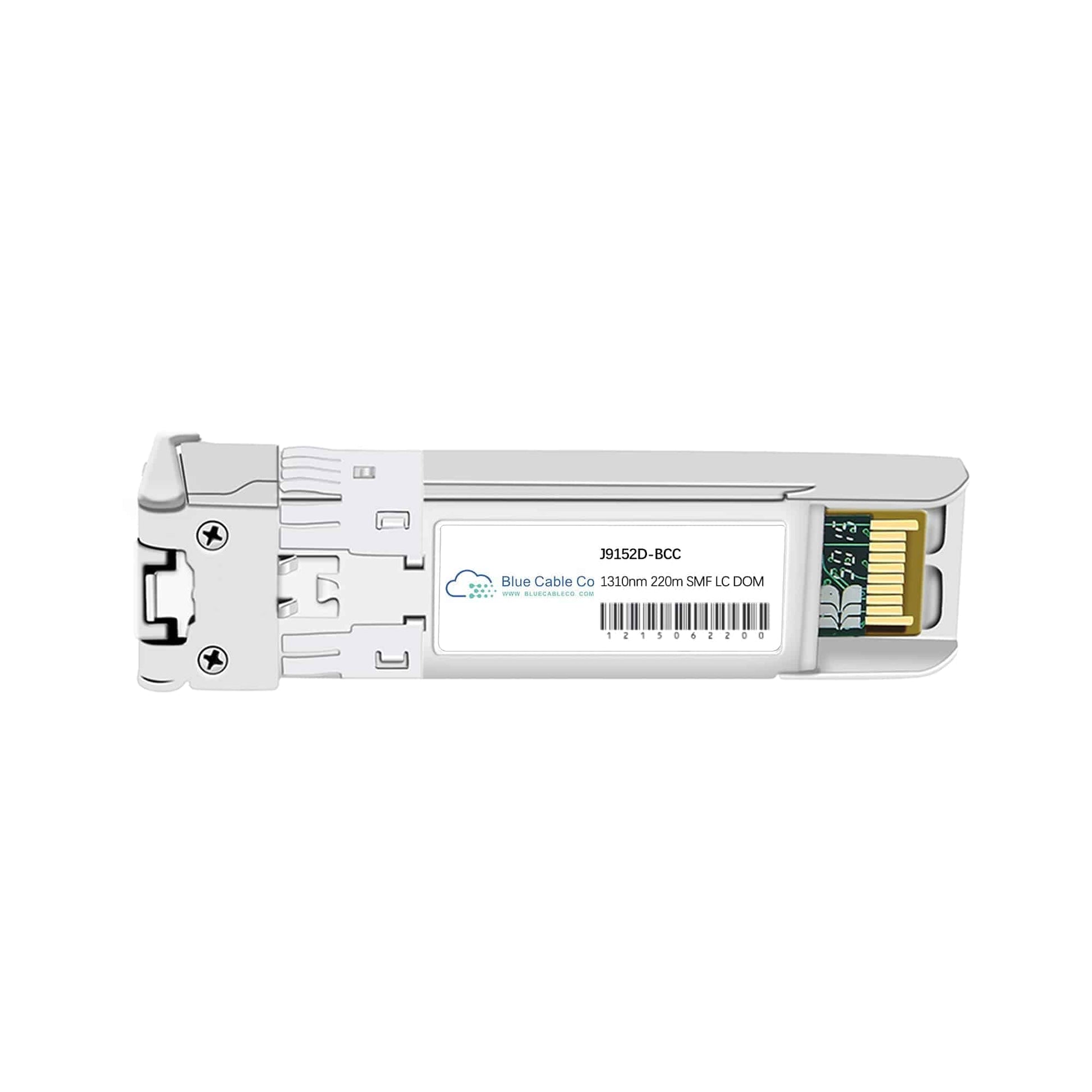

J9152D-BCC | Aruba Compatible 10GB Multi-Mode LRM - 220m (10GBASE-LRM)

J9152D-BCC | Aruba Compatible 10GB Multi-Mode LRM - 220m (10GBASE-LRM)

J9152D-BCC

In stock:19

$103.40 AUD
$103.40 AUD
$103.40 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

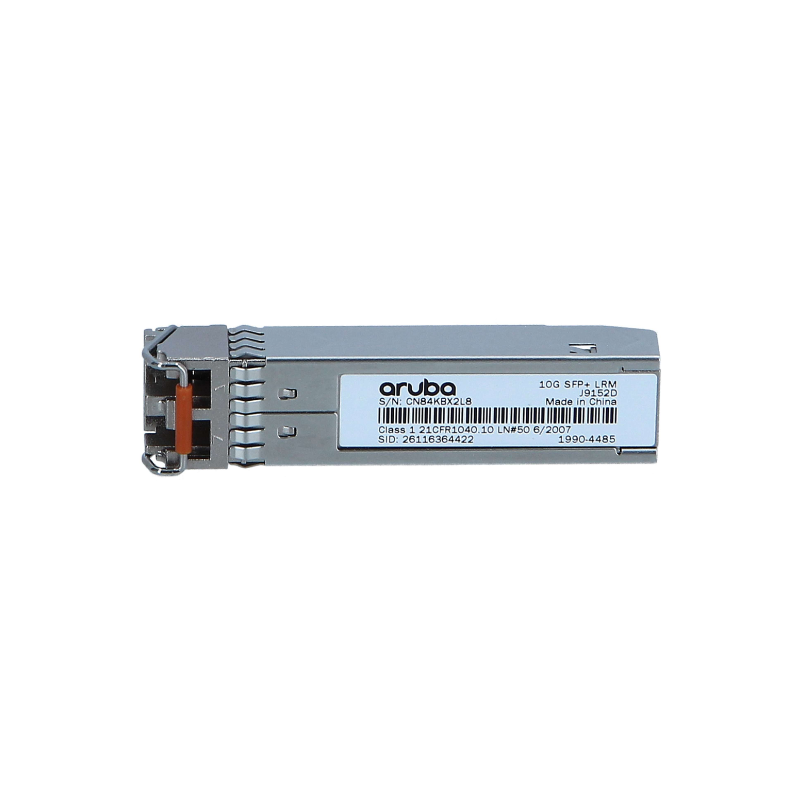

The J9152D-BCC is a drop-in compatible replacement for the Aruba J9152D. This SFP+ transceiver is designed for plug-and-play operation in Aruba switches and routers that require 10GBASE-LRM connectivity. - IEEE 802.3aq compliant 10GBASE-LRM standard ensures interoperability across multi-vendor 10GbE networks and delivers serial 10Gb/s operation over legacy multi-mode fibre infrastructure - SFP+ form factor with 1310nm wavelength delivering up to 220m reach over FDDI-grade, OM1, OM2, and OM3 multi-mode fibre with duplex LC connector - Enables 10G upgrades on installed OM1/OM2 fibre without re-cabling, using Electronic Dispersion Compensation (EDC) for reliable long-reach multi-mode transmission - Digital optical monitoring (DOM) support provides real-time access to optical power levels, temperature, voltage, and bias current for link diagnostics - Commercial temperature range operation (0 to 70 degrees Celsius) with low power consumption under 1W and hot-swappable design for seamless deployment

Features

• IEEE 802.3aq 10GBASE-LRM compliance guarantees serial 10Gb/s operation at 10.3125 GBd line rate over legacy multi-mode fibre using 64b/66b encoding defined in IEEE 802.3 Clause 49 and PMD sublayer in Clause 68, enabling consistent interoperability across standards-compliant 10GbE infrastructure
• 1310nm Fabry-Perot laser transmitter with Electronic Dispersion Compensation (EDC) on the host interface allows deployment over FDDI-grade, OM1, and OM2 multi-mode fibre to 220m without mode conditioning patch cords in modern implementations, extending service life of installed cabling while delivering full 10G performance
• SFP+ MSA compliant hot-swappable module with duplex LC interface enables non-disruptive insertion and removal in live network environments, supporting seamless upgrades and maintenance operations without powering down the host switch or router
• Digital Diagnostics Monitoring per SFF-8472 provides real-time access to transmit and receive optical power, temperature, supply voltage, and laser bias current via I2C interface, enabling proactive link quality assessment and failure prediction in production networks
• Low power consumption under 1W combined with commercial temperature operation from 0 to 70 degrees Celsius ensures reliable performance in standard data centre and campus switch environments without requiring enhanced cooling or power provisioning

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Replaces (older part #)

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: J9152D-BCC
Compatible Replacement For: J9152D
Compatibility: Aruba compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10Gbps (10.3125 GBd line rate)
Wavelength: 1310nm
Fibre Type: Multi-mode (FDDI-grade, OM1, OM2, OM3)
Connector Type: Duplex LC
DOM Support: Yes (DDM via SFF-8472)
Standards: IEEE 802.3aq (10GBASE-LRM), SFP+ MSA (SFF-8431, SFF-8432)
Max Reach: Up to 220m over OM1, OM2, OM3 multi-mode fibre (per IEEE 802.3aq specification, subject to fibre quality and link conditions)
Operating Temperature: 0 to 70 degrees Celsius (commercial)
Power Consumption: <1W

Replaces (older part #)

J9152A

FAQs

Q: Will this work in place of the Aruba J9152D?
A: Yes. The J9152D-BCC is fully compliant with the IEEE 802.3aq 10GBASE-LRM standard and matches the J9152D's SFP+ form factor, 1310nm wavelength, 10Gbps data rate, and 220m reach specification over multi-mode fibre. It provides plug-and-play compatibility with Aruba switches and routers that specify the J9152D for 10G multi-mode connectivity.

Q: Which Aruba platforms support this transceiver?
A: This transceiver is compatible with Aruba switches and routers equipped with SFP+ ports that support 10GBASE-LRM operation. The host platform must provide Electronic Dispersion Compensation (EDC) behind the SFP+ port to support LRM technology. Verify your specific model's compatibility documentation, as some platforms may not support any type of 10G LRM transceiver even under unsupported transceiver mode.

Q: Do I need a mode conditioning patch cord with this transceiver?
A: No. Modern 10GBASE-LRM implementations, including the J9152D-BCC, are tuned to operate without requiring a mode conditioning patch (MCP) cord over FDDI-grade, OM1, and OM2 fibre. Never use mode conditioning patch cords with OM3 or OM4 fibre types, as they will reduce light levels and may trigger low receive power alarms. This follows current Aruba technical guidance for J9152D modules.

Q: What is the actual reach over different fibre types?
A: IEEE 802.3aq specifies 220m maximum reach over FDDI-grade, OM1, OM2, and OM3 multi-mode fibre for 10GBASE-LRM. The line rate is 10.3125 GBd using 64b/66b encoding. Some LRM transceivers can also achieve up to 300m over standard single-mode fibre (G.652), though this exceeds the IEEE specification and should be verified through link budget calculations and optical power measurements before deployment.

Q: How does 10GBASE-LRM compare to 10GBASE-SR for legacy fibre?
A: 10GBASE-LRM uses 1310nm wavelength and Electronic Dispersion Compensation to achieve 220m over legacy OM1 and OM2 multi-mode fibre, whereas 10GBASE-SR operates at 850nm and typically reaches only 33m on OM1 or 82m on OM2. LRM enables 10G upgrades on installed FDDI-grade infrastructure without re-cabling, though it requires host platforms with EDC support and typically consumes slightly more power than SR modules.
