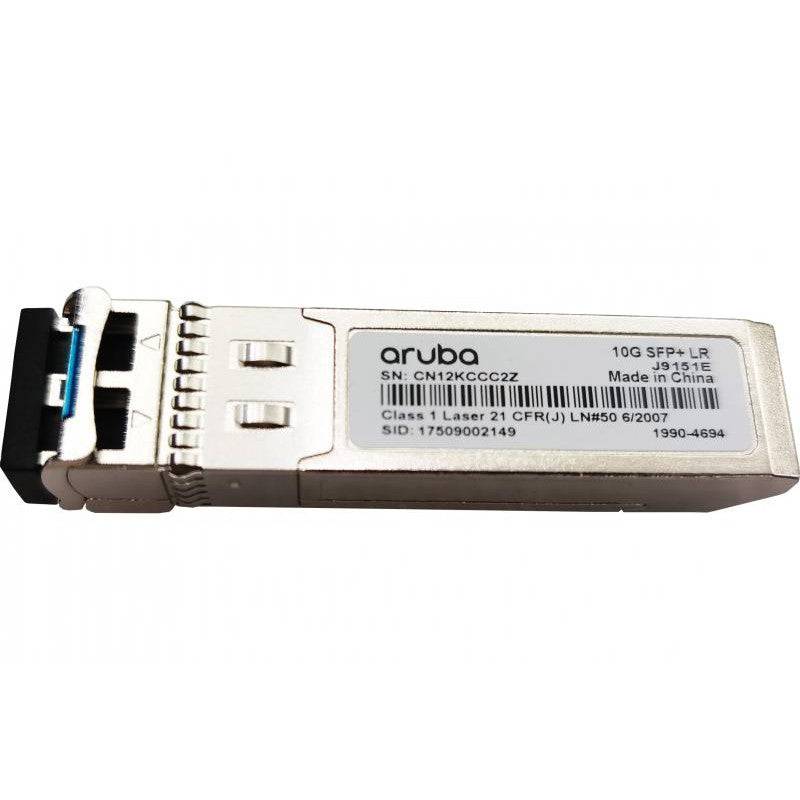

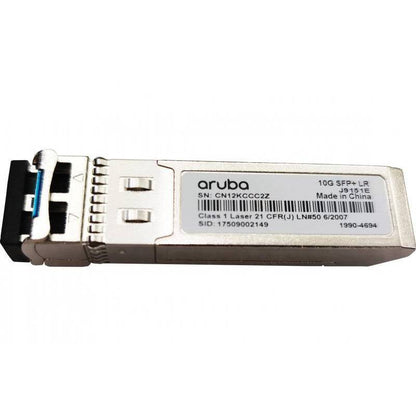

• Aruba compatible J9151E-BCC 10GBASE-LR SFP+ transceiver module
1 1

Blue Cable Co

J9151E-BCC | Aruba Compatible 10GB Single-Mode 10km (10GBASE-LR)

J9151E-BCC | Aruba Compatible 10GB Single-Mode 10km (10GBASE-LR)

J9151E-BCC

In stock:14

$110.22 AUD
$110.22 AUD
$110.22 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The J9151E-BCC is a drop-in compatible replacement for the Aruba J9151E. This SFP+ transceiver provides plug-and-play 10 Gigabit Ethernet connectivity for Aruba switches with SFP+ slots. - Compliant with IEEE 802.3ae 10GBASE-LR and SFF-8431 standards, ensuring interoperability with vendor equipment and third-party optics - SFP+ form factor, 10 Gbps data rate, 1310nm wavelength, duplex LC connector for single-mode fibre links - Supports digital optical monitoring (DOM) for real-time access to temperature, voltage, transmit bias current, and optical power levels - Hot-swappable design allows installation and removal without powering down the host device - Maximum reach of 10km over OS2 single-mode fibre, suitable for campus backbones, aggregation links, and data centre interconnects

Features

• IEEE 802.3ae 10GBASE-LR compliance guarantees standards-based interoperability with any Ethernet switch, router, or NIC supporting the 10GBASE-LR PMD specification
• SFF-8431 electrical interface compliance ensures clean 10 Gbps signalling over the SFI channel between host and transceiver, with defined eye diagram performance
• 1310nm DFB laser transmitter provides -8 to +0.5 dBm output power and minimum 30 dB side-mode suppression ratio for stable long-reach transmission
• Digital diagnostics via SFF-8472 I2C interface enable real-time monitoring of five key operating parameters without service interruption
• Hot-swappable module allows field replacement with no network downtime, supporting sequential upgrades and rapid fault isolation
• Single 3.3V power supply with typical 1W power consumption simplifies power budgeting in high-density aggregation and access switches
• Duplex LC interface and OS2 9/125um single-mode fibre support provide 10km reach at 10.3125 Gbps line rate with 64B/66B encoding

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Replaces (older part #)

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: J9151E-BCC
Compatible Replacement For: J9151E
Compatibility: Aruba compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10 Gbps
Wavelength: 1310 nm
Fibre Type: Single-Mode (SMF)
Connector Type: Duplex LC
DOM Support: Yes (Digital Optical Monitoring)
Standards: IEEE 802.3ae (10GBASE-LR), SFF-8431, SFF-8472, SFF-8432
Max Reach: Up to 10km over OS2 single-mode fibre
Operating Temperature: 0 to 70°C

Replaces (older part #)

J9151A, J9151D, JL749A, JL783A

FAQs

Q: Will this work in place of the Aruba J9151E?
A: Yes. The J9151E-BCC meets the same IEEE 802.3ae 10GBASE-LR specification as the Aruba J9151E, using the same SFP+ form factor, 1310nm wavelength, and 10 Gbps data rate. It provides plug-and-play compatibility in any Aruba device with SFP+ transceiver slots.

Q: Which Aruba switches support this transceiver?
A: This transceiver works in any Aruba switch with SFP+ ports. Compatible platforms include the 2540, 2930F, 2930M, 3810M, 5406R, 8325, and Instant On 1930 series. It will initialize and operate in any device that lists the J9151E as a supported transceiver.

Q: What fibre type and distance does this support?
A: This transceiver requires OS2 9/125um single-mode fibre. Maximum reach is 10km at 10 Gbps, based on the IEEE 802.3ae power budget of 6 dB minimum. Actual distance depends on fibre quality, connector loss, and link budget. Use OS1 or OS2 fibre with UPC or APC termination.

Q: Can I access DOM parameters on this transceiver?
A: Yes. This transceiver implements SFF-8472 digital diagnostics, exposing five real-time parameters via the I2C management interface: transmit optical power, receive optical power, transmit bias current, supply voltage, and internal temperature. These are accessible through switch CLI or SNMP.

Q: Does this transceiver support 10G Fibre Channel or only Ethernet?
A: This transceiver is optimized for 10GBASE-LR Ethernet per IEEE 802.3ae and supports bit rates from 9.83 to 11.3 Gbps. It can support 10G Fibre Channel (10GFC) applications at the same wavelength and reach, as both protocols use similar physical layer signalling over single-mode fibre.
